LS 275 (24AF572B063) - Troy-Bilt Log Splitter (2004) General Assembly Parts Diagram

Log Splitter

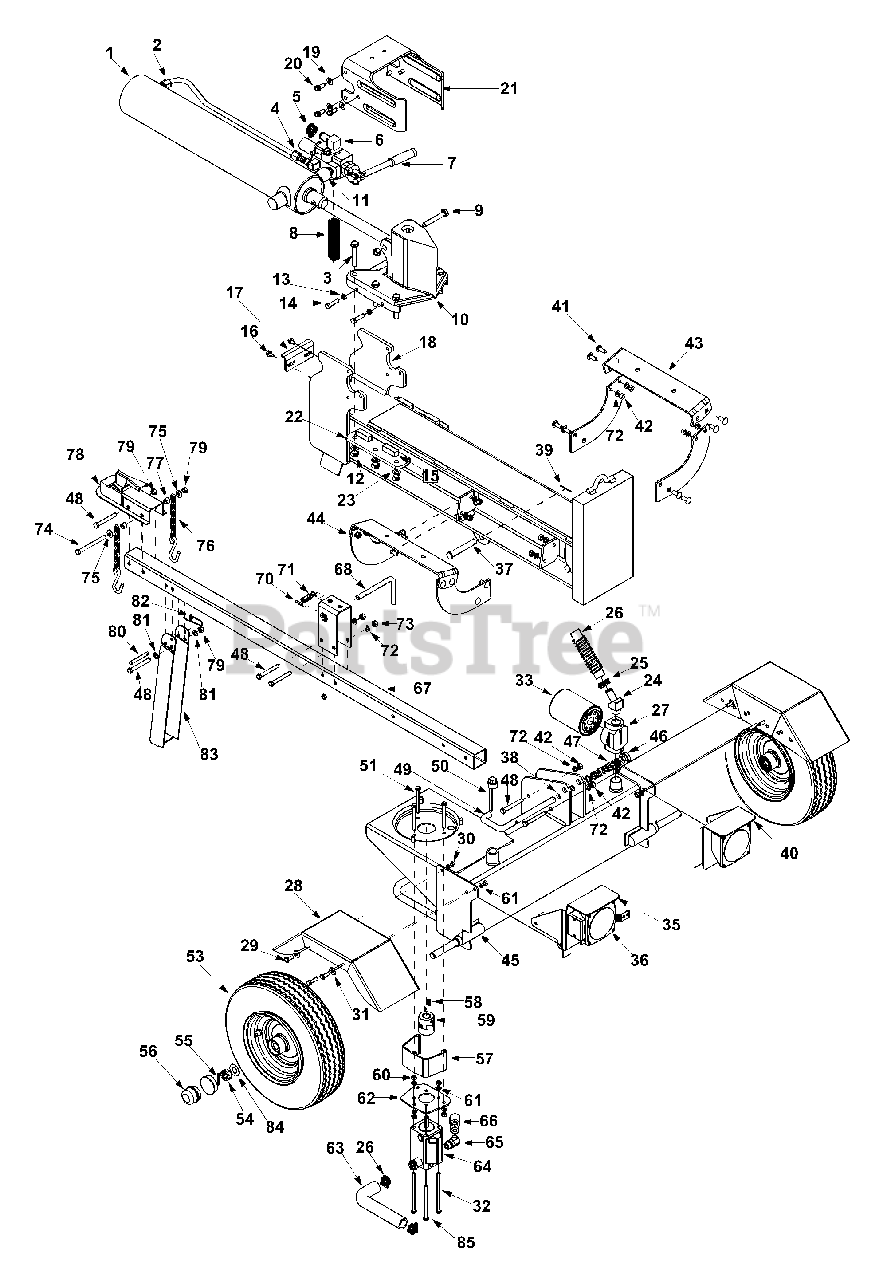

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 718-0769

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: Fisher Hydraulics

$991.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 753-0563

Seal Kit, Cylinder 4.50

Note: Kit for 718-0769, Not shown

$240.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 718-0769A

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: Replaces 718-0769, for seal kit refer to MTD-103A

$991.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 727-0634

Hydraulic Tube

$

$

Not available

3

Troy-Bilt 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

Troy-Bilt 737-0192

90 Degree Solid Adapter

$41.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Troy-Bilt 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 2 left!

0

Troy-Bilt 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

$383.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0515

Hex Cap Screw 1/2-20 x 3.50

$11.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 737-0238

Nipple Pipe 1/2-14

$25.99

$

In Stock, Qty 6

0

12

Troy-Bilt 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

15

Troy-Bilt 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 18

0

16

Troy-Bilt 710-1260A

LD Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 781-1054

Support Bracket
(Superseded to 781-1054-0637)

Variations

Troy-Bilt 781-1054-0637

BRACKET-SUPT CYLIND - POWDER BLACK (0637)

$

$

Not available

$

$

18

Troy-Bilt 681-0162

Beam Assembly
(Superseded to 681-04071A-0637)

Variations

Troy-Bilt 681-0162-0637

BEAM ASM-LOGSPLITTER - POWDER BLACK (0637)

$1726.99

$

Usually ships in 3-6 days

0

$1726.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0300

Flat Washer .406 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 781-1048

Dislodger
(Superseded to 781-04426)

Variations

Troy-Bilt 781-1048-0637

Dislodger Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Troy-Bilt 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

24

Troy-Bilt 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 727-0443

Return Hose 3/4" ID x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 781-04002

Fender

Variations

Troy-Bilt 781-04002-0638

FENDER-TREAD PLT - MTD/TROY-BILT RED (0638)

$166.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04002-4021

FENDER-TREAD PLATE - CUB YELLOW 2 (4021)

$166.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04002-0716

FENDER-TREAD PLT - CUB YELLOW-99 (0716)

$166.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-3038

Hex Screw

$4.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0371

Lock Washer 5/16

$4.49

$

In Stock, only 3 left!

0

32

MTD 710-1253

Hex Bolt 5/16-24 x 5.25"

$

$

Not available

33

Troy-Bilt 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 681-0164

Light Bracket LH
(Superseded to 681-0164-0637)

Variations

Troy-Bilt 681-0164-0637

BRACKET ASM-LIGHT LH - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 625-0062

Taillight Kit

Note: If equipped

$194.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 725-2058

RH Taillight Assembly

Note: Not shown

$

$

Not available

36

MTD 725-2059

LH Taillight Assembly

Note: Not shown

$

$

Not available

36

Troy-Bilt 725-2060

Wiring Harness

Note: Not shown

$

$

Not available

37

Troy-Bilt 711-1587

Clevis Pin

$

$

Not available

38

Troy-Bilt 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 781-1027

Light Bracket RH
(Superseded to 781-1027A-0637)

Variations

Troy-Bilt 781-1027-0637

BRACKET-LIGHT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

42

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

43

Troy-Bilt 781-0682

Log Tray
(Superseded to 753-05424)

Variations

Troy-Bilt 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

44

MTD 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

Troy-Bilt 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

45

Troy-Bilt 681-0161

Frame Assembly
(Superseded to 753-05565)

$

$

Not available

46

Troy-Bilt 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 732-0583

Compression Spring

$12.99

$

In Stock, Qty 19

0

48

Troy-Bilt 710-0521

Hex Bolt 3/8-16 x 3"

$5.49

$

In Stock, Qty 11

0

49

Troy-Bilt 781-0690

Lock Rod

$35.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

53

Troy-Bilt 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 941-04089

Cone Bearing
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 18

0

53

Troy-Bilt 921-0168

Grease Retainer

Note: Not Shown

$9.49

$

In Stock, Qty 17

0

54

Troy-Bilt 712-0359

Slotted Nut 3/4-16

$11.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 714-0122

Square Key 3/16" x .75

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 718-0686

Flexible Coupling .875 x .437 ID "Stamped L075"
(Superseded to 918-0686)

Note: use with 718-0683

$104.99

$

In Stock, only 4 left!

0

59

Troy-Bilt 717-0891

Flexible Coupling .750 x .500
(Superseded to 917-0891)

Note: use with 718-04127, for 3/4" engine crankshaft

$159.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 718-04145

Flexible Coupling .875 x .500
(Superseded to 918-04145)

Note: use with 718-04127, for 7/8" engine crankshaft

$90.99

$

In Stock, Qty 8

0

59

Troy-Bilt 718-04395

Coupling, .875 Diameter

Note: use with 718-04127, for 7/8" engine crankshaft, Not shown

$18.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 718-04392

Coupling, .500 Diameter

Note: use with 718-04127, Not shown

$14.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 735-04103

Bushing, Spider Coupling

Note: use with 718-04127, Not shown

$14.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 710-1842

Set Screw
(Superseded to 710-1842A)

Note: use with 718-04127, Not shown

$5.49

$

In Stock, only 2 left!

0

60

Troy-Bilt 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

61

Troy-Bilt 736-0119

Lock Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Troy-Bilt 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

63

Troy-Bilt 727-0633

Hose

$

$

Not available

64

Troy-Bilt 718-0683

Gear Pump (11gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1509.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 753-05194

Pump Kit

Note: includes 718-04127 & 718-0891

$1509.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 737-0329

45 Degree Elbow

$

$

Not available

66

Troy-Bilt 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 781-0788

Tongue Tube Assembly

Variations

Troy-Bilt 781-0788-0637

TUBE-TONGUE LOGSP - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0788-0638

TUBE-TONGUE LOGSP - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 781-0788-0650

TUBE-TONGUE LOGSP - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 781-0788-0662

TUBE-TONGUE LOGSP - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 781-0788-0689

TUBE-TONGUE LOGSP - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 781-0788-0709

TUBE-TONGUE LOGSP - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 781-0788-0716

TUBE-TONGUE LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 781-0788-0721

TUBE-TONGUE LOGSP - SEARS RED (0721)

$

$

Not available

Troy-Bilt 781-0788-4021

TUBE-TONGUE LOGSP - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 781-0788-4044

TUBE-TONGUE LOGSP - CRAFTSMAN RED (4044)

$

$

Not available

$165.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 747-1261

Latch Rod: Tongue

$39.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 781-1045

Latch

Variations

Troy-Bilt 781-1045-0637

Latch - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0638

LATCH - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0606

LATCH LOGSP - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0650

LATCH LOGSP - RED METALLIC (0650)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0662

LATCH - OYSTER GRAY (0662)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0689

LATCH - POLO GREEN (0689)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0716

LATCH LOGSP - CUB YELLOW-99 (0716)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-0721

LATCH LOGSP - SEARS RED (0721)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-4021

LATCH LOGSP - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-1045-4044

LATCH LOGSP - CRAFTSMAN RED (4044)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

71

Troy-Bilt 732-3127

Compression Spring
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

72

Troy-Bilt 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

74

Troy-Bilt 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

75

Troy-Bilt 736-0262

Flat Washer .385 ID x .870 OD

$3.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 750-0497

Spacer .375 ID x .625 OD

$10.99

$

Usually ships in 3-6 days

0

78

MTD 727-0311

Coupling Hitch

$

$

Not available

79

Troy-Bilt 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

80

Troy-Bilt 711-0813

Clevis Pin
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 736-0185

Flat Washer .375 ID x .738 OD

$3.99

$

In Stock, Qty 20+

0

82

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

83

Troy-Bilt 781-0789

Jack Stand

Variations

Troy-Bilt 781-0789-0637

Log Splitter Jack Stand - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0789-0638

STAND-JACK LOGSPL - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 781-0789-0709

STAND-JACK LOGSPL - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 781-0789-0716

STAND-JACK LOGSP - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 781-0789-0650

STAND-JACK LOGSP - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 781-0789-0662

STAND-JACK LOGSPL - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 781-0789-0689

STAND-JACK LOGSPL - POLO GREEN (0689)

$

$

Not available

$

$

84

Troy-Bilt 736-0351

Flat Washer .760 ID x .500 OD

$4.49

$

In Stock, Qty 20+

0

85

Troy-Bilt 710-3195

Hex Bolt 5/16-18 x 4.5"

$7.49

$

Usually ships in 3-6 days

0
