LS 27 T (24AF572B710) - Cub Cadet Log Splitter (2005-2) General Assembly Parts Diagram

Log Splitter

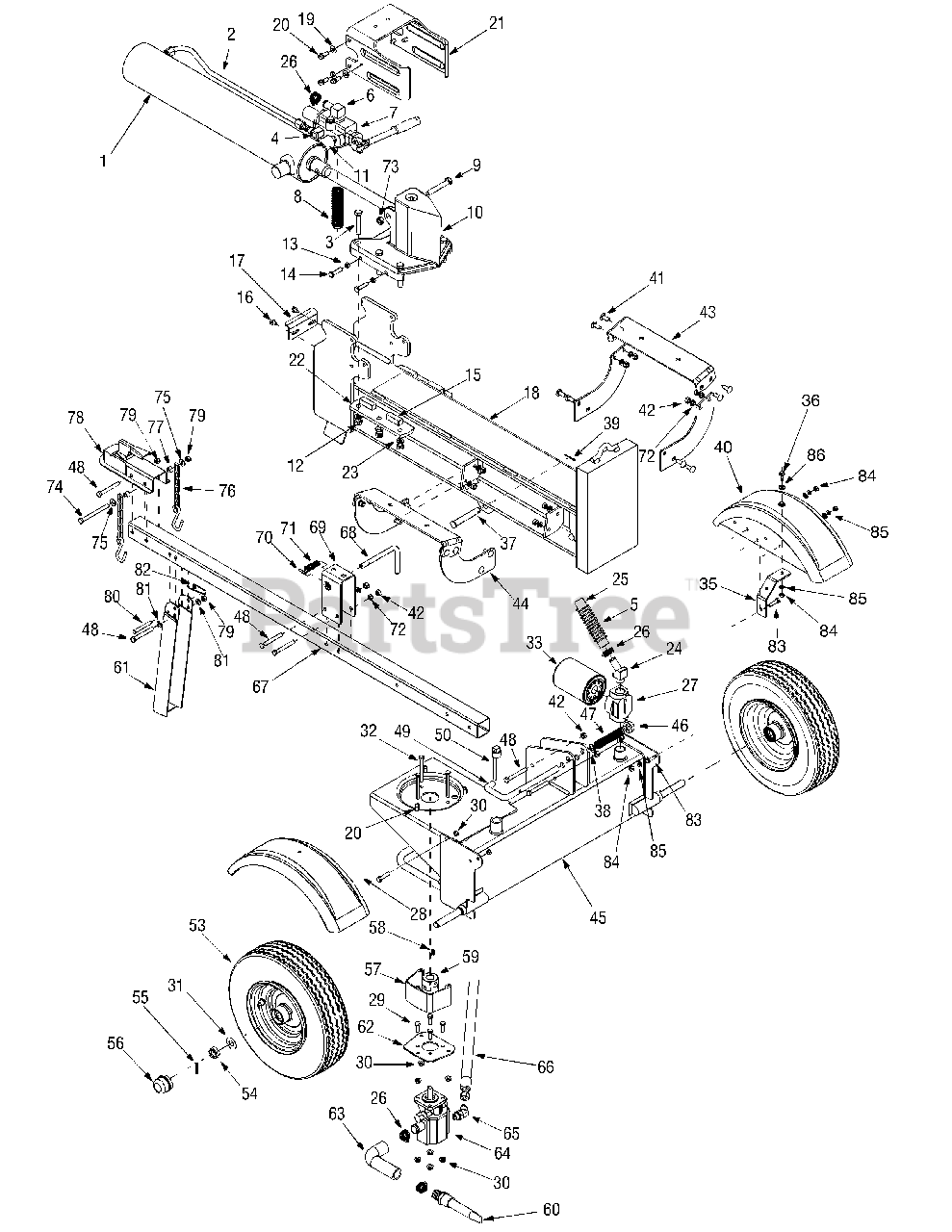

General Assembly Parts Diagram

  • Title

1

Cub Cadet 718-0769

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: replace with 718-0769A

$991.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 753-0563

Seal Kit 4.5" for Fisher Cylinder 718-0769

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder.

$240.99

$

In Stock, only 1 left!

0

1

Cub Cadet 718-0769A

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: replaces 718-0769

$991.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 953-05607

Kit Seal 4.5" for XINGHUI cylinder 718-0769A

Note: See Service Kit 753-05607

$84.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 953-05608

Kit Seal 4.5" for ENERGY cylinder 718-0769A

Note: See Service Kit 753-05608

$227.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 727-0634

Hydraulic Tube

$

$

Not available

3

Cub Cadet 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

Cub Cadet 737-0192

90 Degree Solid Adapter

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 1 left!

0

Cub Cadet 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 1 left!

0

$383.99

$

In Stock, only 1 left!

0

8

Cub Cadet 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1806

Hex Cap Screw 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

10

Cub Cadet 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 737-0238

Nipple Pipe 1/2-14

$25.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

15

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-1260A

LD Screw 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 781-1054

Cylinder Support Bracket
(Superseded to 781-1054-0637)

Variations

Cub Cadet 781-1054-0637

BRACKET-SUPT CYLIND - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 681-0162

Beam Assembly
(Superseded to 681-04071A-0637)

Variations

Cub Cadet 681-0162-0637

USE 681-04071A-0637 BEAM ASM- - POWDER BLACK (0637)

$1726.99

$

Usually ships in 3-6 days

0

$1726.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0300

Flat Washer.406 ID x.875 OD

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet 781-1048

Dislodger
(Superseded to 781-04426)

Variations

Cub Cadet 781-1048-0637

Dislodger Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

Cub Cadet 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

23

Cub Cadet 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 727-0443

Return Hose 3/4" ID x 44"

$118.99

$

In Stock, only 1 left!

0

26

Cub Cadet 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0376

Hex Screw , 5/16-18 x 1.0

$3.99

$

In Stock, only 4 left!

0

30

Cub Cadet 712-04063

Hex Flange Nut, Nylon, 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0351

Flat Washer.760 ID x.500 OD

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3056

Hex Bolt 5/16-18 x 3.25"

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, only 4 left!

0

35

Cub Cadet 781-1024

Mounting Bracket, Fender
(Superseded to 781-1024A-0637)

Variations

Cub Cadet 781-1024-0637

BRACKET-MT FEND - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-1238

Hex Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 711-1587

Clevis Pin

$

$

Not available

38

Cub Cadet 736-0116

Flat Washer.635 ID x.93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

39

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 731-2498A

Fender, Yellow
(Superseded to 731-2498B)

$

$

Not available

41

Cub Cadet 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

42

Cub Cadet 712-04065

Hex Lock Nut 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 781-0682

Log Tray
(Superseded to 753-05424)

Variations

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0686-0637

Log Splitter Tray Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 681-04040

Frame Assembly
(Superseded to 981-04040A-0637)

$909.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

47

Cub Cadet 732-0583

Compression Spring

$12.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-3130

Hex Bolt 3/8-16 x 3.25"

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 781-0690

Lock Rod

$35.99

$

In Stock, only 1 left!

0

50

Cub Cadet 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

51

Cub Cadet 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

53

Cub Cadet 634-0187

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

55

Cub Cadet 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

57

Cub Cadet 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 714-0122

Square Key 3/16" x.75

$3.99

$

In Stock, Qty 15

0

59

Cub Cadet 718-04145

Flexible Coupling (Stamped L075) .875 x .500 ID
(Superseded to 918-04145)

$90.99

$

In Stock, Qty 8

0

59

Cub Cadet 735-0652

Bushing, Spider Coupling

Note: not shown, use with 718-04145 coupling

$46.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 718-04392

Coupling .500 ID Pump Side

Note: not shown, (Not compatible with coupling stamped L075)

$14.99

$

In Stock, only 2 left!

0

59

Cub Cadet 718-04395

Coupling .875 ID Engine Side

Note: not shown, (Not compatible with coupling stamped L075)

$18.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 735-04103

Bushing, Spider Coupling

Note: not shown, use with 718-04392 and 718-04395 coupling

$14.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-1842

Set Screw, 1.4-20 x .38
(Superseded to 710-1842A)

Note: not shown

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 781-0789-0716

Jack Stand

$

$

Not available

62

Cub Cadet 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

63

Cub Cadet 727-04130

Hose

$106.99

$

In Stock, only 1 left!

0

64

Cub Cadet 718-04127

Gear Pump
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 737-0329

45° Elbow

$

$

Not available

66

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 781-0788-0716

Tongue Tube Assembly
(Superseded to 781-0788-4021)

$

$

Not available

68

Cub Cadet 747-1261

Tongue Latch Rod

$39.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 781-1045-0716

Latch

$55.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

71

Cub Cadet 732-3127

Compression Spring
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 6

0

72

Cub Cadet 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 712-3022

Hex Lock Nut 1/2-13

$3.99

$

In Stock, Qty 8

0

74

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 14

0

75

Cub Cadet 736-0262

Flat Washer.385 ID x.870 OD

$3.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

77

Cub Cadet 750-0497

Spacer.375 ID x.625 OD

$10.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 681-04030

Hitch Coupler

$72.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

80

Cub Cadet 711-0813

Clevis Pin
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 736-0185

Flat Washer.375 ID x.738 OD

$3.99

$

In Stock, only 2 left!

0

82

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

83

Cub Cadet 710-3038

Hex Screw, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

84

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0371

Flat Washer, .434 x .880 x .062

$4.49

$

In Stock, only 3 left!

0
