LS 27 T (24AF572B710) - Cub Cadet Log Splitter (2005-2) Carburetor Parts Diagram

Log Splitter

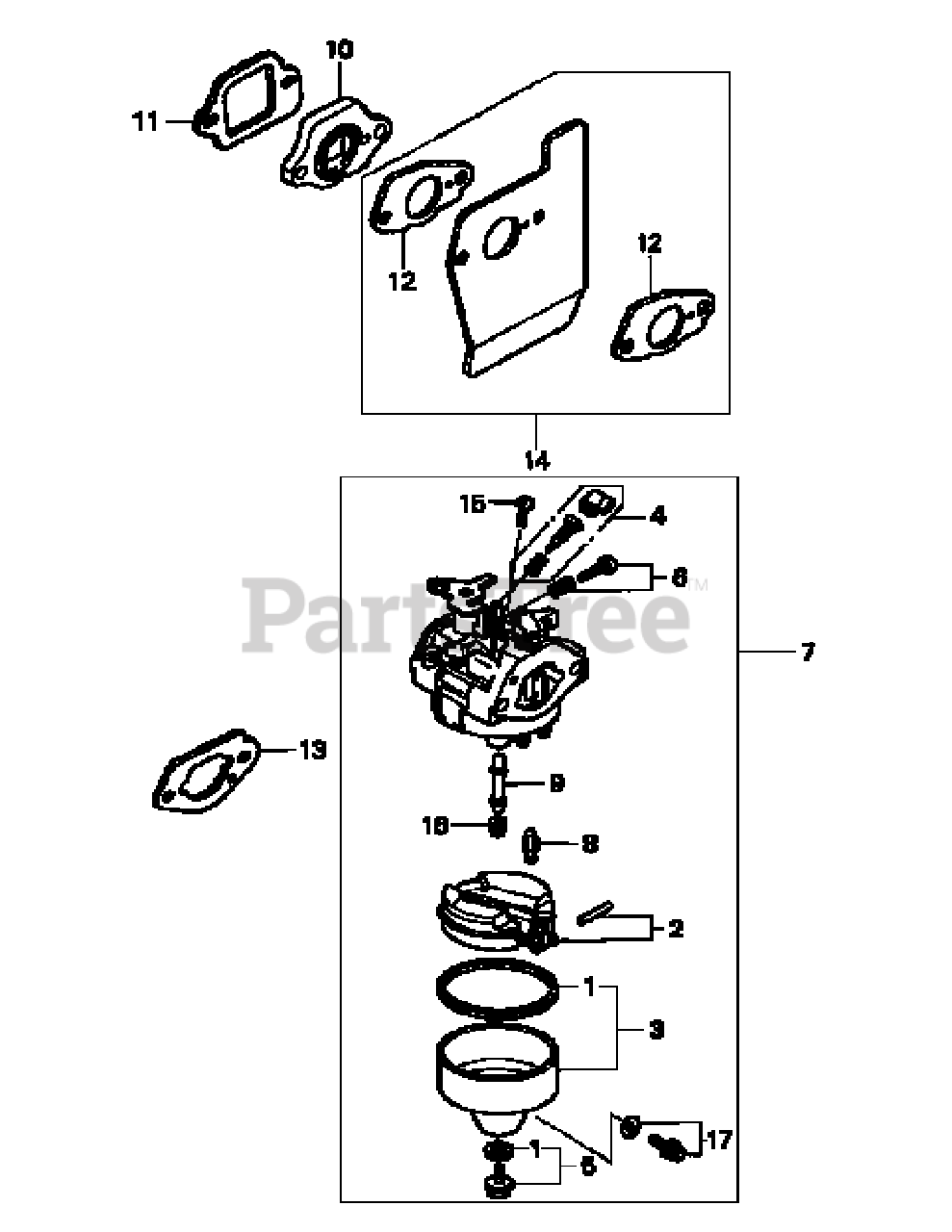

Carburetor Parts Diagram

  • Title

1

Honda 16010-883-015

Gasket Set

$12.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

Float Set

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

Float Chamber Set

$32.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

Screw Set

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

Screw Set
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

6

Honda 16029-ZG0-901

Screw Set

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZM0-803

Carburetor Assy.
(Superseded to 16100-Z0L-023)

$24.99

$

In Stock, Qty 20+

0

8

Honda 16155-ZM0-003

Float Valve

$29.99

$

Usually ships in 3-6 days

0

9

Honda 16166-ZM0-003

Main Nozzle

$21.99

$

In Stock, only 1 left!

0

10

Honda 16211-ZL8-000

Carburetor Insulator

$4.49

$

In Stock, Qty 20+

0

11

Honda 16212-ZL8-000

Insulator Gasket

$7.99

$

In Stock, Qty 20+

0

12

Honda 16221-883-800

Carburetor Gasket

$2.49

$

In Stock, Qty 20+

0

13

Honda 16228-ZL8-000

Carburetor Gasket

$2.49

$

In Stock, Qty 20+

0

14

Honda 19650-ZM0-000

Air Guide

$8.99

$

In Stock, Qty 9

0

15

Honda 93500-05006-0H

Pan Screw

$0.99

$

In Stock, only 4 left!

0

16

Honda 99101-124-0600

Main Jet (#60)

$12.99

$

In Stock, Qty 5

0

Honda 99101-124-0620

Main Jet (#62)

$11.99

$

Usually ships in 3-6 days

0

Honda 99101-124-0650

Main Jet (#65)

$12.99

$

In Stock, only 2 left!

0

17

Honda 16024-ZE1-811

Drain Set Screw

$10.99

$

In Stock, only 3 left!

0
