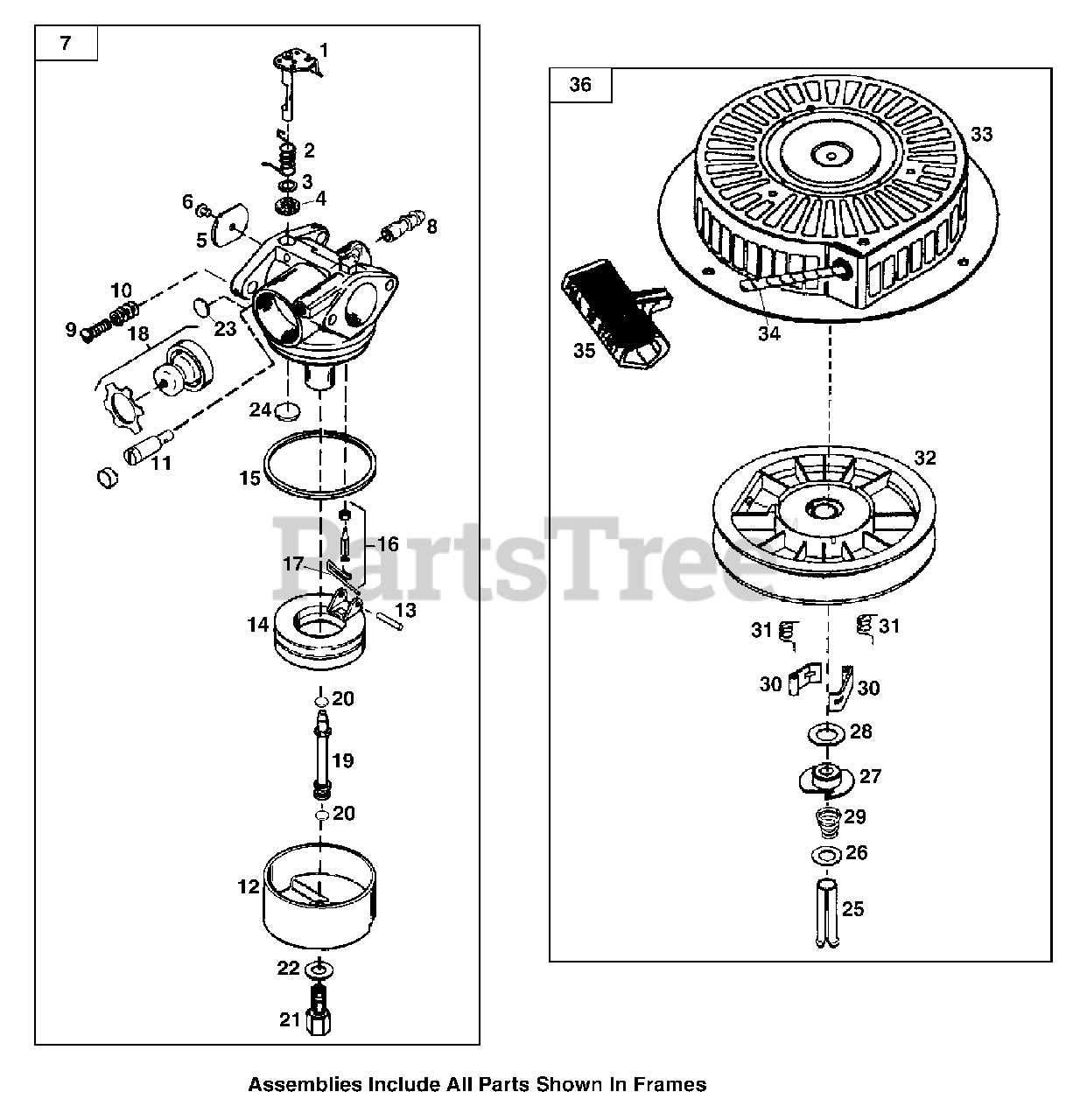

LS 27 T (24AD563B101) - Cub Cadet Log Splitter Engine (1999) Carburetor & Starter Parts Diagram

Log Splitter Engine

Carburetor & Starter Parts Diagram

  • Title
1

Cub Cadet TC-631615

Throttle Shaft & Lever Ass’y

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

3

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

4

Cub Cadet TC-631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 7

0

5

Cub Cadet TC-631036

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

7

Cub Cadet TC-640025B

Carburetor Assembly
(Superseded to TC-640025C)

$105.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet TC-651025

Throttle Crack/Idle Speed Screw

$1.99

$

In Stock, only 4 left!

0

10

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

11

Cub Cadet TC-640018

Idle Restrictor Screw

$8.99

$

In Stock, only 1 left!

0

12

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 11

0

13

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

14

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 7

0

15

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

16

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl Ref #17)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

18

Cub Cadet TC-36045A

Primer Bulb/Retainer Ring

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet TC-640019

Main Nozzle Tube

$6.99

$

In Stock, Qty 12

0

20

Cub Cadet TC-632547

Main Nozzle Tube "O" Ring

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet TC-640015

High Speed Bowl Nut

$7.49

$

In Stock, only 3 left!

0

22

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

In Stock, only 3 left!

0

23

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

25

Cub Cadet TC-590599A

Spring Pin,

Note: (Incl Ref #28)

$5.49

$

In Stock, only 3 left!

0

$1.99

$

In Stock, Qty 5

0

27

$3.99

$

Usually ships in 3-12 days

0

$1.99

$

In Stock, only 4 left!

0

29

Cub Cadet TC-590678

Brake Spring

$3.49

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-590680

Starter Dog

$5.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-590412

Dog Spring

$8.49

$

In Stock, only 2 left!

0

32

Cub Cadet TC-590681

Pulley & Rewind Spring Ass’y

$

$

Not available

33

Cub Cadet TC-590747

Starter Housing Ass’y

$

$

Not available

34

Cub Cadet TC-590535

Starter Rope (98")

$9.49

$

In Stock, Qty 12

0

35

Cub Cadet TC-590701

Starter Handle

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet TC-590746

Rewind Starter Ass’y
(Superseded to TC-590788)

$65.99

$

In Stock, only 1 left!

0
