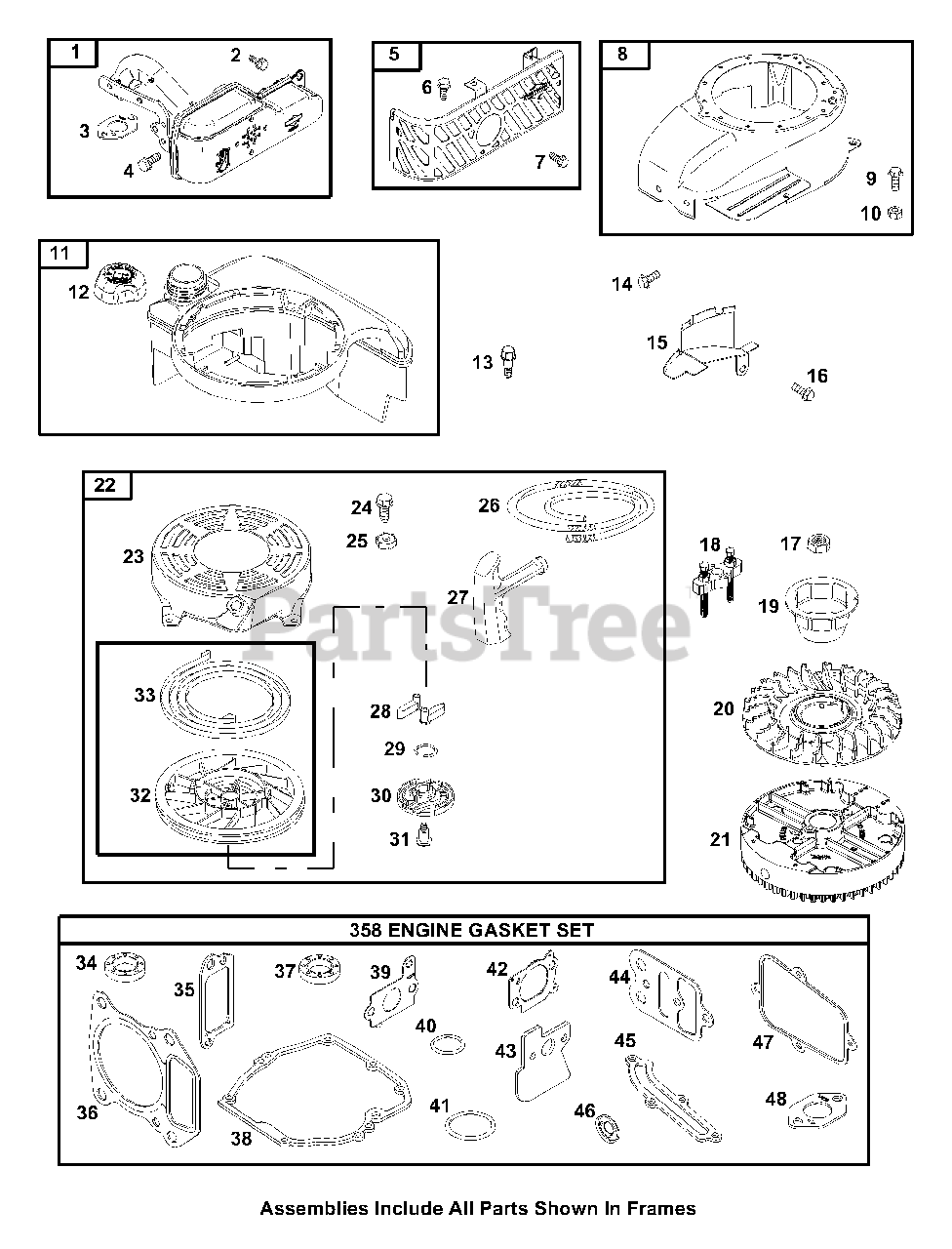

LS 27 T (24AA570H100) - Cub Cadet Log Splitter Engine (2001) Starter, Fuel, & Gasket Parts Diagram

Log Splitter Engine

Starter, Fuel, & Gasket Parts Diagram

  • Title

1

Cub Cadet BS-694248

Muffler

Note: Used after code date 99030700

$

$

Not available

Cub Cadet BS-692275

Muffler

Note: Used before code date 99030800

$

$

Not available

2

Cub Cadet BS-691108

Screw (Muffler)

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-273348

Gasket (Exhaust)
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-691140

Screw (Muffler)

$3.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-691466

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-94786

Screw (Muffler Guard)
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

7

Cub Cadet BS-94874

Screw (Muffler Guard)
(Superseded to BS-690664)

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-499676

Housing-Blower

$

$

Not available

9

Cub Cadet BS-94904

Screw (Blower Housing)
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94908

Nut (Blower Housing)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-693377

Tank Fuel
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-692046

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-94511

Screw (Fuel Tank)
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet BS-690960

Screw (Blower Housing)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-694086

Guard-Flywheel
(Superseded to BS-793756)

$10.99

$

In Stock, only 4 left!

0

16

Cub Cadet BS-691108

Screw (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-94877

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 12

0

18

Cub Cadet BS-19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-691219

Cup-Flywheel
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-692693

Flywheel

$170.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

23

Cub Cadet BS-691421

Housing-Rewind Starter

$64.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-94904

Screw (Rewind Starter)
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-94908

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

26

Cub Cadet BS-281464

Rope-Starter
(Superseded to BS-697316)

Note: (Cut to required length)

$5.99

$

In Stock, Qty 16

0

27

Cub Cadet BS-281434

Grip-Starter Rope
(Superseded to BS-281434S)

$3.99

$

In Stock, only 4 left!

0

28

Cub Cadet BS-281505

Ratchet-Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

29

Cub Cadet BS-263073

Spring-Friction
(Superseded to BS-691855)

$4.49

$

In Stock, only 3 left!

0

30

Cub Cadet BS-281503

Plate-Pawl Friction
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-94943

Screw (Pawl Friction Plate)
(Superseded to BS-691696)

$11.99

$

In Stock, Qty 6

0

32

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, Qty 20+

0

33

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

35

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-695166

Gasket-Cylinder Hd.
(Superseded to BS-697230)

Note: Used after code date 99113000

$9.99

$

In Stock, Qty 6

0

37

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

38

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

39

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

40

Cub Cadet BS-280966

Seal-Dipstick Tube
(Superseded to BS-692296)

$4.99

$

In Stock, only 4 left!

0

41

Cub Cadet BS-280393

O-Ring Seal (Dipstick/tube seal)
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet BS-692667

Gasket-Air Cleaner

$4.49

$

In Stock, only 3 left!

0

43

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 1 left!

0

44

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

45

Cub Cadet BS-272238

Gasket-Breather Passage
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

46

Cub Cadet BS-498592

Seal-Valve
(Superseded to BS-692044)

$

$

Not available

47

Cub Cadet BS-691890

Gasket (Rocker Cover)

Note: Used after code date 99012500

$7.99

$

In Stock, Qty 5

0

48

Cub Cadet BS-273348

Gasket-Exhaust
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

358

Engine Gasket Set

$

$

Not available
