LS 27 T (24AA570H100) - Cub Cadet Log Splitter Engine (2001) Engine Parts Diagram

Log Splitter Engine

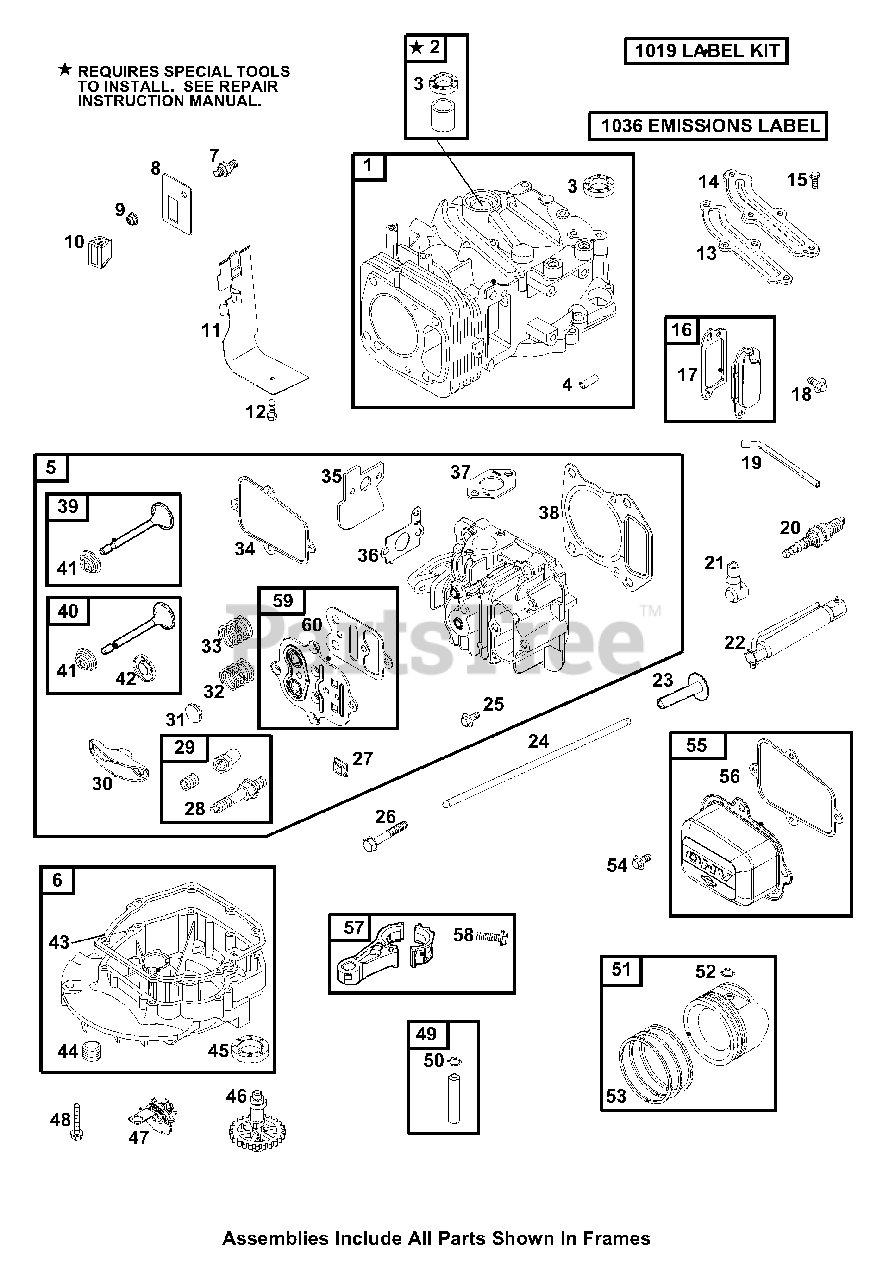

Engine Parts Diagram

  • Title

1

Cub Cadet BS-499678

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Kit-Bushing/Seal (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

4

Cub Cadet BS-230192

Pin-Locating
(Superseded to BS-690959)

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-695276

Hd.-Cyl.
(Superseded to BS-799072)

Note: Used after date 99113000

$142.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692800

Hd.-Cyl.

Note: Used before date 99012600

$

$

Not available

6

Cub Cadet BS-499619

Sump-Engine
(Superseded to BS-493279)

$120.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-690368

Stud (mounting bracket)

$4.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-692877

Bracket-Mounting

$4.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-692851

Nut (Mounting Bracket)

$2.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-691396

Switch-Rocker

$17.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-691232

Shield-Cylinder

$16.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-272238

Gasket-Breather Passage
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-692342

Cover-Breather Passage

$

$

Not available

15

Cub Cadet BS-690345

Screw (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

18

Cub Cadet BS-691125

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

19

Cub Cadet BS-691260

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

20

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-66538

Boot-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet BS-19374

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-262679

Tappet-Valve
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-498597

Rod-Push
(Superseded to BS-692045)

$11.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-691108

Screw (Cylinder Head Plate)

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-691137

Screw (Cylinder Head)

$

$

Not available

27

Cub Cadet BS-691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

28

Cub Cadet BS-694544

Stud (Rocker Arm)

$7.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-694543

Rocker Arm Ball

$

$

Not available

30

Cub Cadet BS-691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-691300

Cap-Valve

$9.49

$

In Stock, Qty 9

0

32

Cub Cadet BS-691304

Spring-Valve (Intake)

$5.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-691304

Spring-Valve (Exhaust)

$5.99

$

In Stock, only 2 left!

0

34

Cub Cadet BS-691890

Gasket (Rocker Cover)

Note: Used after code date 99012500

$7.99

$

In Stock, Qty 5

0

35

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 1 left!

0

36

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet BS-273348

Gasket-Exhaust
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet BS-695166

Gasket-Cylinder Head
(Superseded to BS-697230)

Note: Used after code date 99113000

$9.99

$

In Stock, Qty 6

0

39

Cub Cadet BS-499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

40

Cub Cadet BS-499641

Valve-Intake
(Superseded to BS-795443)

$27.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-93312

Retainer-Valve
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

42

Cub Cadet BS-498592

Seal-Valve
(Superseded to BS-692044)

$

$

Not available

43

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

44

Cub Cadet BS-94880

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-694039

Camshaft

Note: Used after date 99030700

$65.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-493737

Slinger-Governor/oil
(Superseded to BS-691997)

$25.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-691092

Screw (Engine Sump)

$3.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-263190

Lock-Piston Pin
(Superseded to BS-691866)

$4.49

$

In Stock, Qty 8

0

51

Cub Cadet BS-499627

Piston Assembly
(Superseded to BS-799063)

$91.99

$

In Stock, only 4 left!

0

52

Cub Cadet BS-263190

Lock-Piston Pin
(Superseded to BS-691866)

$4.49

$

In Stock, Qty 8

0

53

Cub Cadet BS-499631

Ring Set

$53.99

$

In Stock, only 4 left!

0

54

Cub Cadet BS-691108

Screw (Rocker Arm Cover)

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet BS-499624

Cover-Rocker

$37.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-691890

Gasket (Rocker Cover)

Note: Used after code date 99012500

$7.99

$

In Stock, Qty 5

0

57

Cub Cadet BS-499424

Rod-Connecting
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-94699

Screw (Connecting Rod)

$

$

Not available

59

Cub Cadet BS-695168

Plate-Cylinder Head
(Superseded to BS-696268)

Note: Used after code date 99113000

$

$

Not available

60

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1019

Label Kit

$

$

Not available

1036

Emissions Label

$

$

Not available
