LS 27 T (24AA570H100) - Cub Cadet Log Splitter (2000) General Assembly Parts Diagram

Log Splitter

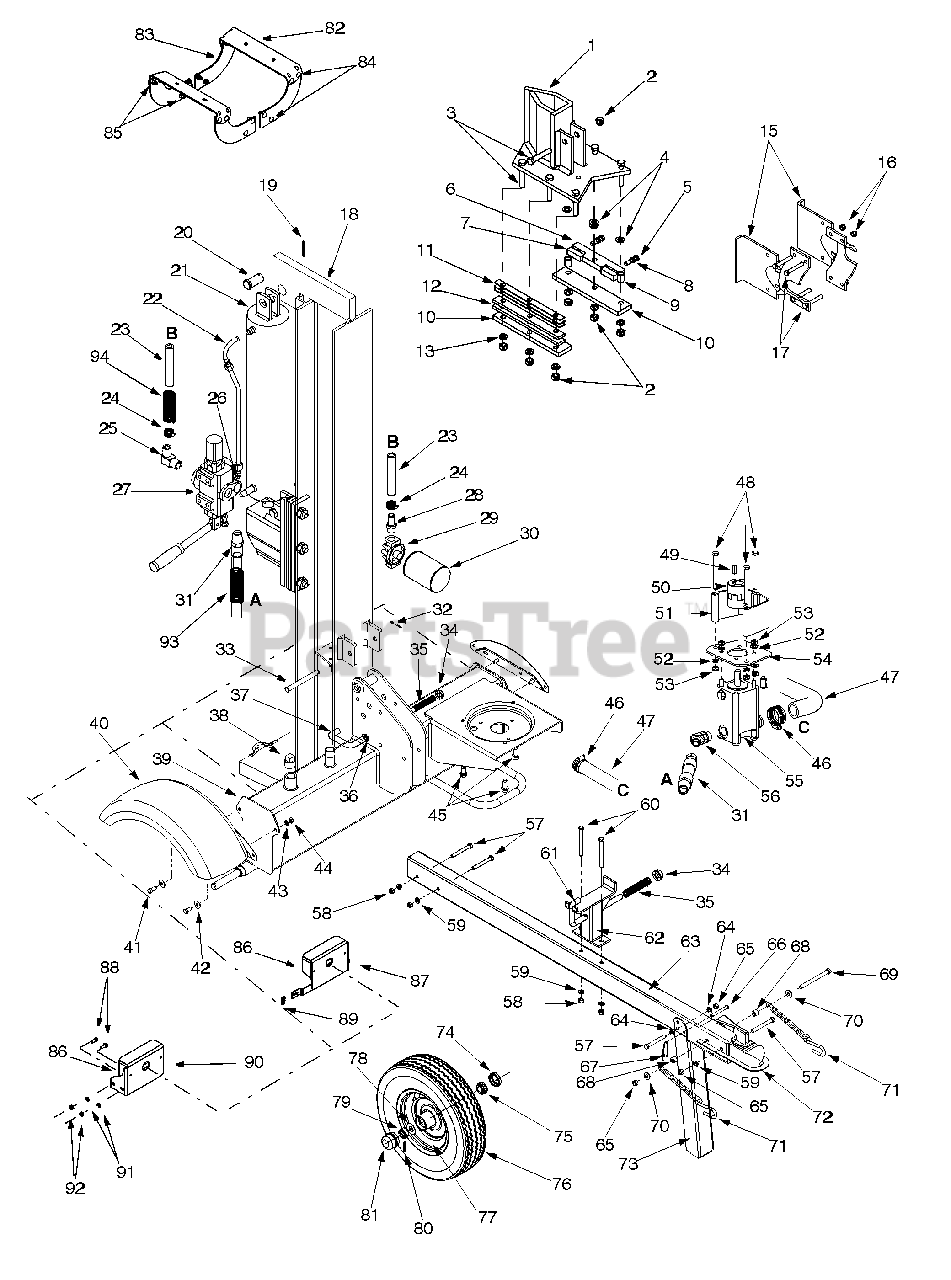

General Assembly Parts Diagram

1

Cub Cadet 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)
(Superseded to 753-04120)

Variations

$342.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

Cub Cadet 736-0192

Flat Washer .531 x .93 x .090

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 16

0

6

Cub Cadet 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

Variations

$131.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 13

0

8

Cub Cadet 712-3001

Hex Jam Nut 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

9

Cub Cadet 750-0750

Spacer
(Superseded to 950-0750)

$

$

Not available

10

Cub Cadet 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

Variations

$44.99

$

In Stock, Qty 7

0

11

Cub Cadet 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)
(Superseded to 781-0352A-0637)

Variations

$

$

Not available

12

Cub Cadet 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

Variations

$30.99

$

In Stock, Qty 8

0

13

Cub Cadet 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0239

Lock Nut 1/2-20

Note: See reference 2

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

Variations

$

$

Not available

16

Cub Cadet 712-0130

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 6

0

17

Cub Cadet 710-0859

Hex Cap Screw 3/8-16 x 2.5

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 681-0126-0637

BEAM ASSEMBLY - POWDER BLACK (0637)

Variations

$

$

Not available

19

Cub Cadet 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

20

Cub Cadet 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 718-0306-0483

USE 918-0306 CYLINDER-HYD 4.5 - CHARCOAL GRAY (0483)
(Superseded to 918-0306)

Variations

$

$

Not available

21

Cub Cadet 753-0563

Seal Kit 4.5" for Fisher Cylinder

Note: Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder and marked Fisher on the cylinder. Not shown

$240.99

$

In Stock, only 1 left!

0

21

NLA

Seal Kit 4.5" for Best Cylinder

Note: Best cylinders manufactured by BEST will have "BM" or "BEST" cast into the end cap. Best used a threaded piston end cap (requiring a spanner wrench for removal). Not shown

$

$

Not available

22

Cub Cadet 727-0471

Hydraulic Tube

$

$

Not available

23

Cub Cadet 727-0443

Return Hose 3/4" ID x 44" Lg

$118.99

$

In Stock, only 2 left!

0

24

Cub Cadet 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 737-0192

90 Degree Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)
(Superseded to 918-0481A)

Variations

$383.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

29

Cub Cadet 737-0306

Filter Housing
(Superseded to 681-0179)

$

$

Not available

30

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

31

Cub Cadet 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 714-0470

Cotter Pin 1/8" Dia

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

34

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, Qty 20+

0

35

Cub Cadet 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 16

0

36

Cub Cadet 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

37

Cub Cadet 781-0690

Locking Rod

$35.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 737-0236

Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 3 left!

0

39

Cub Cadet 681-0092A-0637

FRAME WELDMENT (4 GAL.) - POWDER BLACK (0637)

Variations

$

$

Not available

40

Cub Cadet 681-0138-0483

FENDER ASSEMBLY - CHARCOAL GRAY (0483)
(Superseded to 781-04000)

Variations

$

$

Not available

41

Cub Cadet 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 10

0

42

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, Qty 12

0

45

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 735-0256

Suction Hose

$

$

Not available

48

Cub Cadet 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

49

Cub Cadet 714-0122

Sq. Key 3/16" x .75

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 717-0891

Flexible Coupling (Stamped L075) .750 x .500 ID
(Superseded to 917-0891)

Note: use with 718-04127 pump, for 3/4" engine crankshaft

$159.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 718-04145

Flexible Coupling (Stamped L075) .875 x .500 ID
(Superseded to 918-04145)

Note: use with 718-04127 pump, for 7/8" engine crankshaft

$90.99

$

In Stock, only 4 left!

0

50

Cub Cadet 735-0652

Bushing, Spider Coupling

Note: not shown, use with 717-0891, 718-04145 or 718-0686 coupling

$46.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 718-04395

Coupling .875 ID Engine Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$18.99

$

In Stock, Qty 7

0

50

Cub Cadet 718-04392

Coupling .500 ID Pump Side

Note: not shown, use with 718-04127 pump (Not compatible with coupling stamped L075)

$14.99

$

In Stock, Qty 9

0

50

Cub Cadet 735-04103

Bushing, Spider Coupling

Note: not shown, use with 718-04392 and 718-04395 coupling

$14.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-1842

Set Screw 1/4-20 x .38
(Superseded to 710-1842A)

Note: Not shown

$5.49

$

In Stock, Qty 8

0

50

Cub Cadet 718-0686

Flexible Coupling (Stamped L075) .875 x .437 ID
(Superseded to 918-0686)

Note: use with 718-0683 pump

$104.99

$

In Stock, only 3 left!

0

51

Cub Cadet 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-0119

L-Washer 5/16" ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, Qty 12

0

54

Cub Cadet 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)
(Superseded to 781-0097-0637)

Variations

$69.99

$

In Stock, only 2 left!

0

55

Cub Cadet 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1509.99

$

In Stock, only 1 left!

0

55

Cub Cadet 753-05194

Pump Kit

Note: includes 718-04127 pump & couplings, Not shown

$1509.99

$

In Stock, only 1 left!

0

55

Cub Cadet 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 737-0329

45 Degree Elbow

$

$

Not available

57

Cub Cadet 710-0521

Hex Bolt 3/8-16 x 3" Lg.

$5.49

$

In Stock, Qty 9

0

58

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 4 left!

0

59

Cub Cadet 736-0169

L-Washer 3/8" ID

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 20+

0

61

Cub Cadet 781-0690

Locking Rod

$35.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 681-0110-0637

SUPPORT ASM. BEAM - POWDER BLACK (0637)
(Superseded to 681-0110-0637)

Variations

$

$

Not available

63

Cub Cadet 781-0680A-0483

USE 781-0680B-0483 TUBE-TONGU - CHARCOAL GRAY (0483)
(Superseded to 781-0680B)

Variations

$

$

Not available

64

Cub Cadet 736-0185

Flat Washer 3/8

$3.99

$

In Stock, Qty 8

0

65

Cub Cadet 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

66

Cub Cadet 711-0813

Clevis Pin 5/16 x 2.5"
(Superseded to 911-0813)

$6.99

$

In Stock, only 2 left!

0

67

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 8

0

68

Cub Cadet 750-0497

Spacer 3/8" ID x .625' OD

$10.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-0944

Hex Bolt 3/8-16 x 4" Lg.

$10.99

$

In Stock, Qty 12

0

70

Cub Cadet 736-0262

Flat Washer 3/8" ID x .87" OD

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 713-0433

Chain - Tow Hitch
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

72

Cub Cadet 727-0311

Hitch Coupler

$

$

Not available

73

Cub Cadet 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

Variations

$

$

Not available

74

Cub Cadet 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 15

0

75

Cub Cadet 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

76

Cub Cadet 634-0187

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 634-0181

Rim Assembly

$

$

Currently unavailable

78

Cub Cadet 736-0351

Flat Washer .76" ID x 1.5" OD

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 2 left!

0

80

Cub Cadet 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

81

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

82

Cub Cadet 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)
(Superseded to 753-05424)

Variations

$53.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 781-0686-0498

Log Splitter Tray Bracket - OLD CUB YELLOW (0498)
(Superseded to 753-05423)

Variations

$

$

Not available

84

Cub Cadet 710-3097

Carriage Bolt, 3/8-16 x1.0

$6.99

$

In Stock, Qty 5

0

85

Cub Cadet 712-0431

Flanged Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

86

Cub Cadet 625-0009

Taillight Assembly

$

$

Not available

87

Cub Cadet 681-0074-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)
(Superseded to 681-0074-0637)

Variations

$

$

Not available

88

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 10

0

89

Cub Cadet 712-0292

Speed Clip

$10.99

$

In Stock, only 3 left!

0

90

Cub Cadet 781-0624-0637

BRACKET-TAILLIGHT - POWDER BLACK (0637)
(Superseded to 781-0624-0637)

Variations

$

$

Not available

91

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

92

Cub Cadet 712-0123

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, Qty 12

0

93

Cub Cadet 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

Account

Order Status

Contact Us

ProAdvantage

About Us

Reviews 

Help

Privacy Policy

Terms & Conditions

0 item(s), $0.00

View Shopping Cart Checkout Now

An error occurred when attempting to load your shopping cart, please try again.

There are no items in your Shopping Cart!

Recommended Items
