LS 27 CC (24BG5HM4010) - Cub Cadet Log Splitter (2010) 178-L0 Carburetor Assembly Parts Diagram

Log Splitter

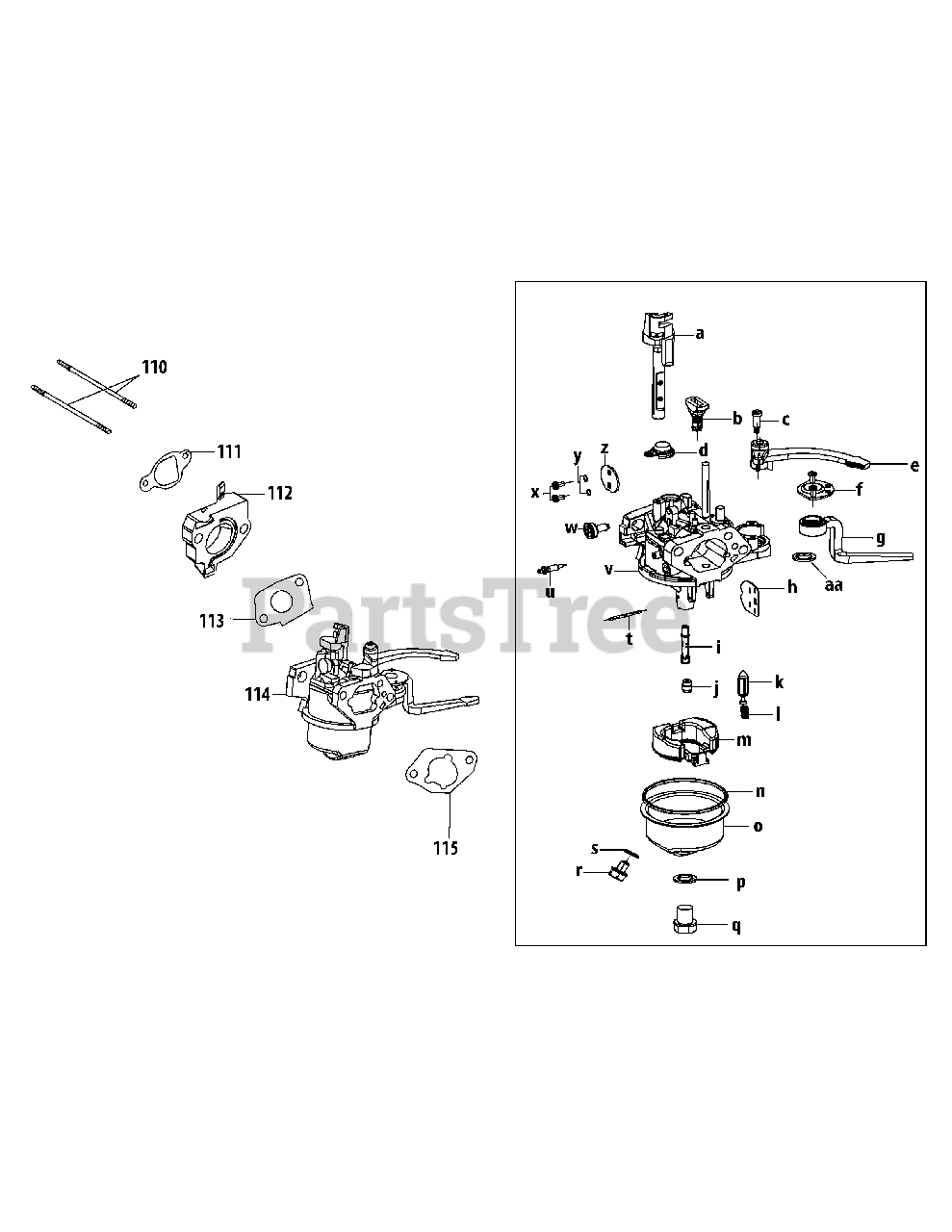

178-L0 Carburetor Assembly Parts Diagram

  • Title

110

Cub Cadet 710-05351

Carburetor Stud

$3.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-11225

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 5

0

112

Cub Cadet 951-11222

Carburetor Insulator

$8.49

$

In Stock, Qty 10

0

113

Cub Cadet 951-11223

Carburetor Gasket

$5.49

$

In Stock, Qty 20+

0

114

Cub Cadet 951-12374

Carburetor Assembly
(Superseded to 951-12791A)

$145.99

$

In Stock, only 1 left!

0

115

Cub Cadet 951-12406

Carburetor Gasket Plate

$5.49

$

In Stock, only 3 left!

0

a

Cub Cadet N/A

Throttle Shaft

$

$

Currently unavailable

b

Cub Cadet N/A

Idle Jet Assembly

$

$

Currently unavailable

c

Cub Cadet N/A

Pin

$

$

Currently unavailable

d

Cub Cadet N/A

Lock Plate

$

$

Currently unavailable

e

Cub Cadet 951-12422

Choke Knob

$11.99

$

In Stock, only 1 left!

0

f

Cub Cadet N/A

Throttle Shaft Dust Seal

$

$

Currently unavailable

g

Cub Cadet 951-12423

Fuel Shut-Off Lever

$11.99

$

Usually ships in 3-6 days

0

h

Cub Cadet N/A

Choke Plate

$

$

Currently unavailable

i

Cub Cadet N/A

Emulsion Tube

$

$

Currently unavailable

j

Cub Cadet N/A

Main Jet

$

$

Currently unavailable

k

Cub Cadet N/A

Needle Valve

$

$

Currently unavailable

l

Cub Cadet N/A

Needle Valve Spring

$

$

Currently unavailable

m

Cub Cadet N/A

Float

$

$

Currently unavailable

n

Cub Cadet 951-11970

Fuel Bowl Gasket

$6.99

$

In Stock, only 2 left!

0

o

Cub Cadet N/A

Fuel Bowl Gasket

$

$

Currently unavailable

p

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, only 1 left!

0

q

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

r

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

s

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

t

Cub Cadet N/A

Float Pin

$

$

Currently unavailable

u

Cub Cadet N/A

Mixture Screw

$

$

Currently unavailable

v

Cub Cadet N/A

Carburetor Body

$

$

Currently unavailable

w

Cub Cadet N/A

Idle Speed Adjusting Screw

$

$

Currently unavailable

x

Cub Cadet N/A

Screw M3×5

$

$

Currently unavailable

y

Cub Cadet N/A

Lock Washer

$

$

Currently unavailable

z

Cub Cadet N/A

Throttle Plate

$

$

Currently unavailable

aa

Cub Cadet 951-12475

Gasket, Fuel Shut off

$

$

Not available

Cub Cadet 951-12383

Carburetor Kit - Major

Note: Not shown (Incl.f,I,j,k,l,m,n,o,s,t)

$

$

Not available

Cub Cadet 951-12377

Gasket Kit - External

Note: Not shown (Incl.66,90,105,111-113,115)

$31.99

$

Usually ships in 3-6 days

0
