LS 27 (24BF572B756) - Cub Cadet Log Splitter (2008) Honda Carburetor Parts Diagram

Log Splitter

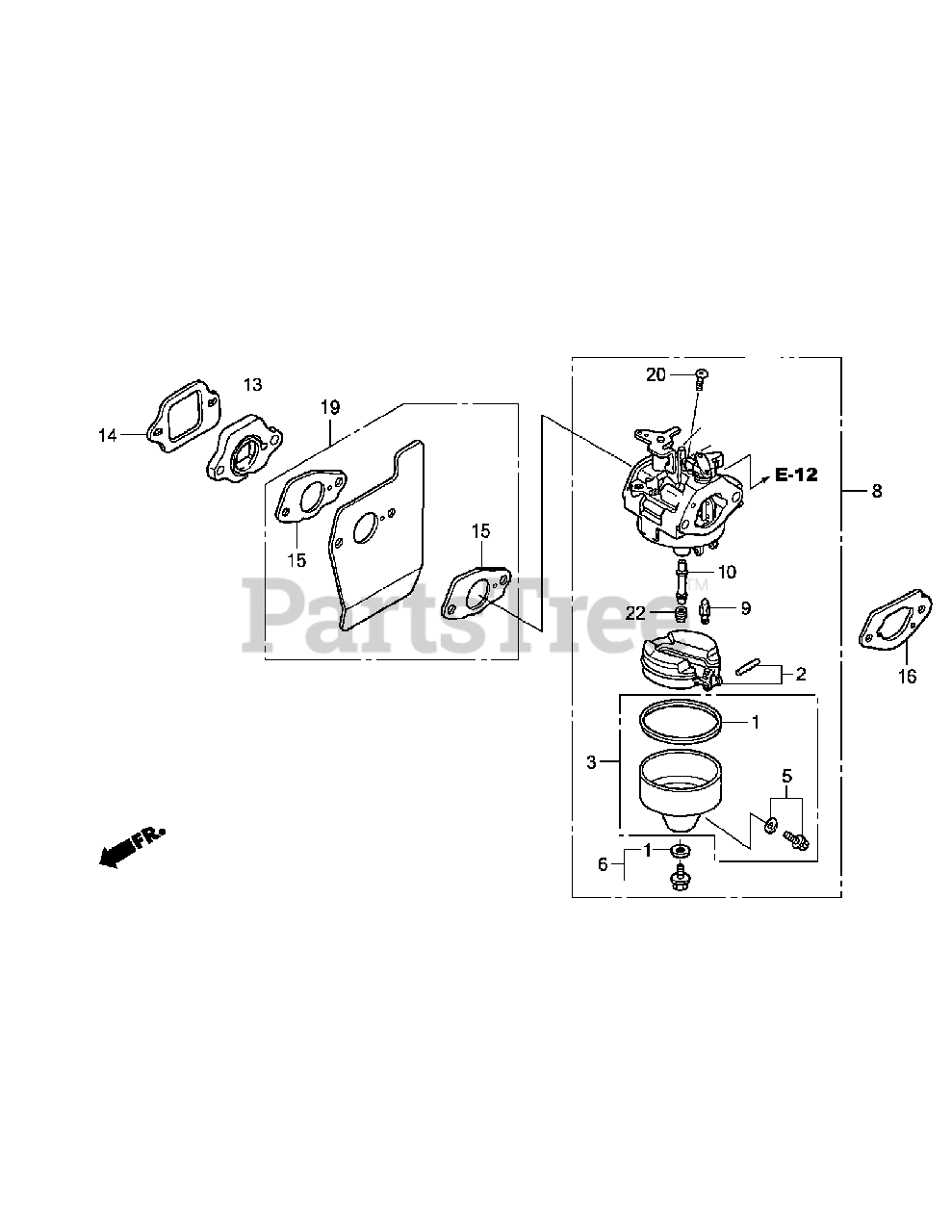

Honda Carburetor Parts Diagram

  • Title

1

Honda 16010-883-015

Gasket Set.

$12.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

Float Set

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

Chamber Set, Float

$32.99

$

In Stock, only 1 left!

0

5

Honda 16024-ZE1-811

Screw Set, Drain

$10.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

Screw Set
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet 16100-Z0L-861

Carburetor Assy..
(Superseded to 16100-Z0L-862)

$24.99

$

In Stock, only 1 left!

0

9

Honda 16155-ZM0-013

Valve, Float

$34.99

$

In Stock, only 3 left!

0

10

Honda 16166-ZM0-003

Nozzle, Main

$21.99

$

In Stock, only 1 left!

0

13

Honda 16211-ZL8-000

Insulator, Carburetor

$4.49

$

In Stock, Qty 20+

0

14

Honda 16212-ZL8-000

Gasket, Insulator

$7.99

$

In Stock, Qty 20+

0

15

Honda 16221-883-800

Gasket, Carburetor

$2.49

$

In Stock, Qty 20+

0

16

Honda 16228-ZL8-000

Gasket, Carburetor

$2.49

$

In Stock, Qty 20+

0

19

Honda 19650-ZM0-000

Guide, Air

$8.99

$

In Stock, Qty 9

0

20

Honda 93500-05006-0H

Screw, Pan (5x6)

$0.99

$

In Stock, only 4 left!

0

22

Honda 99101-124-0600

Jet, Main (#60)

$12.99

$

In Stock, Qty 5

0

22

Honda 99101-124-0620

Jet, Main (#62)

$11.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0650

Jet, Main (#65)

$12.99

$

In Stock, only 2 left!

0
