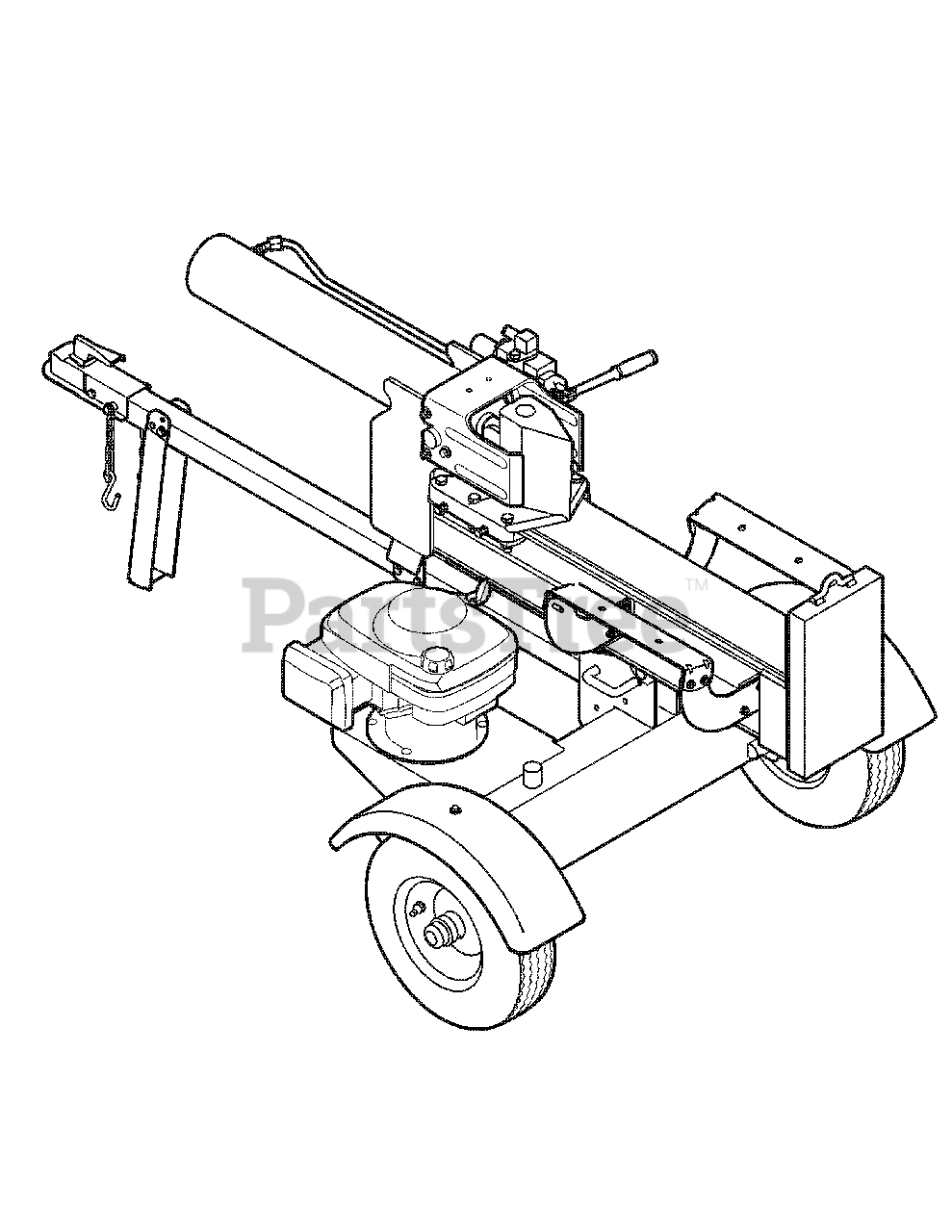

LS 27 (24BF572B711) - Troy-Bilt Log Splitter (2008) .Quick Reference Parts Diagram

Log Splitter

.Quick Reference Parts Diagram

  • Title

Troy-Bilt 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

N/A

Pre Filter

$

$

Not available

Troy-Bilt 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

N/A

Fuel Filter

$

$

Not available

Troy-Bilt 718-0769A

Hydraulic Cylinder
(Superseded to 918-0769A)

Note: XINGHUI or ENERGY

$991.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-05607

Kit Seal 4.5" XINGHUI

Note: See Service Kit 753-05607

$84.99

$

Usually ships in 3-6 days

0

Troy-Bilt 953-05608

Kit Seal 4.5" ENERGY

Note: See Service Kit 753-05608

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 723-0405

Hydraulic Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

Troy-Bilt 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 718-04145

Flexible Coupling
(Superseded to 918-04145)

$90.99

$

In Stock, Qty 8

0

Troy-Bilt 781-0351

Adjustable Gibbs

$18.99

$

In Stock, Qty 18

0

N/A

Belt

$

$

Not available

Troy-Bilt 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

Troy-Bilt 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 713-04036

Valve Handle Link
(Superseded to 913-04036)

$21.99

$

In Stock, only 2 left!

0

Troy-Bilt 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0
