LS 27 (24BF572B710) - Cub Cadet Log Splitter (2007) Cylinder Barrel Parts Diagram

Log Splitter

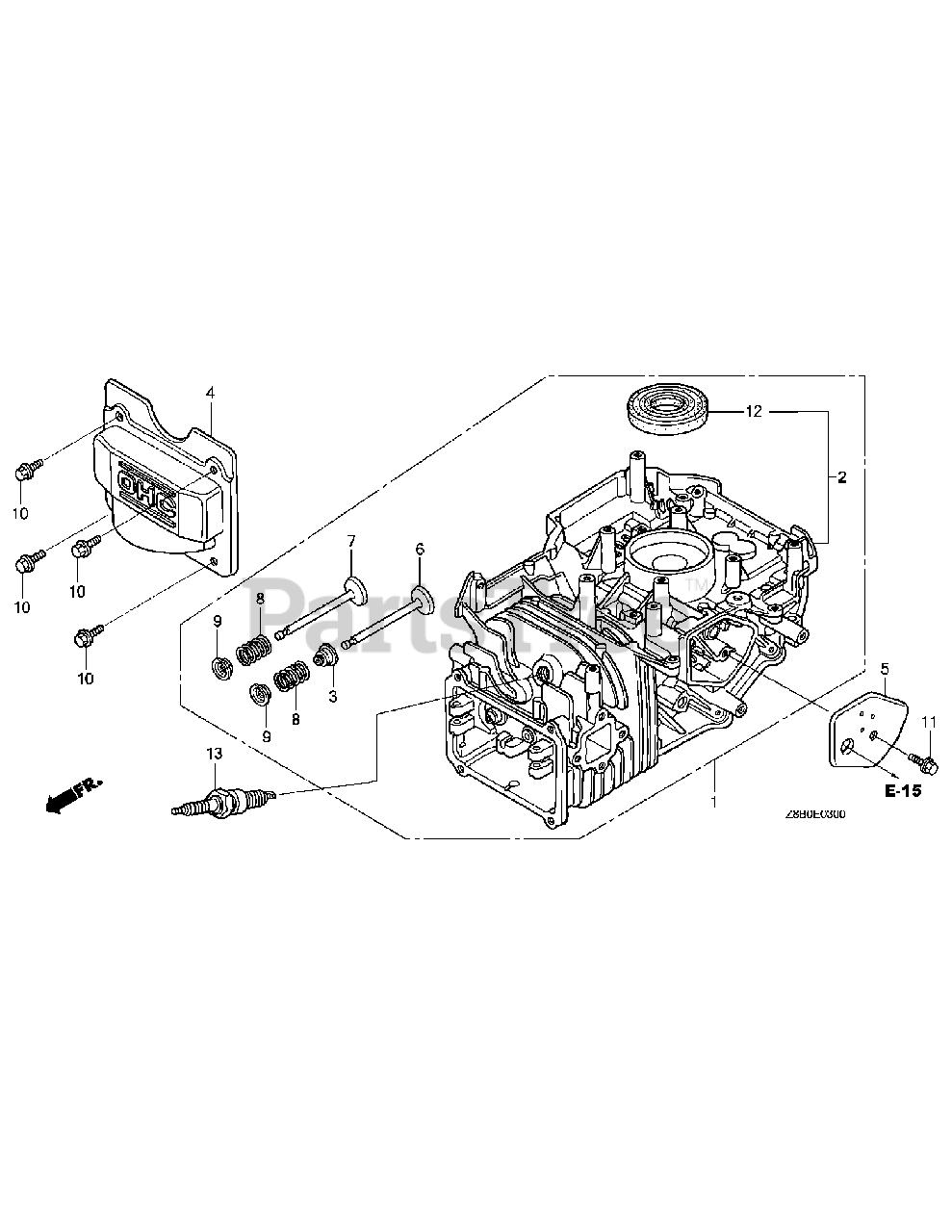

Cylinder Barrel Parts Diagram

  • Title

1

Cub Cadet 12000-ZL8-425

CYLINDER ASSY. (Honda Code 8571929).

$

$

Not available

3

Honda 12209-ZM0-003

SEAL, VALVE STEM (Honda Code 6839831).

$9.99

$

In Stock, Qty 5

0

4

Honda 12311-ZL8-D00

PRI; COVER, HEAD
(Superseded to 12310-Z8A-000)

$34.99

$

In Stock, only 1 left!

0

4

Honda 12311-ZL8-000

SUP; COVER, HEAD
(Superseded to 12310-Z8A-000)

$34.99

$

In Stock, only 1 left!

0

5

Honda 12355-ZL8-000

COVER, BREATHER (Honda Code 5580006).

$9.49

$

In Stock, only 1 left!

0

6

Honda 14711-Z0J-000

PRI; VALVE, IN. (ROCKNEL)
(Superseded to 14711-ZL8-000)

$71.99

$

In Stock, only 3 left!

0

7

Honda 14721-ZL8-000

VALVE, EX. (Honda Code 5580121).

$63.99

$

In Stock, Qty 9

0

8

Honda 14751-ZL8-000

SPRING, VALVE (Honda Code 5580139).

$0.99

$

In Stock, Qty 12

0

9

Honda 14771-Z0J-000

RETAINER, VALVE SPRING (Honda Code 7526148).

$11.99

$

In Stock, Qty 6

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

12

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6) (Honda Code 5581038).

$8.49

$

In Stock, Qty 13

0

13

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0
