LS 25 CC (24BG55M1710) - Cub Cadet Log Splitter (2015) LS25 General Assembly (MTD Engine) Parts Diagram

Log Splitter

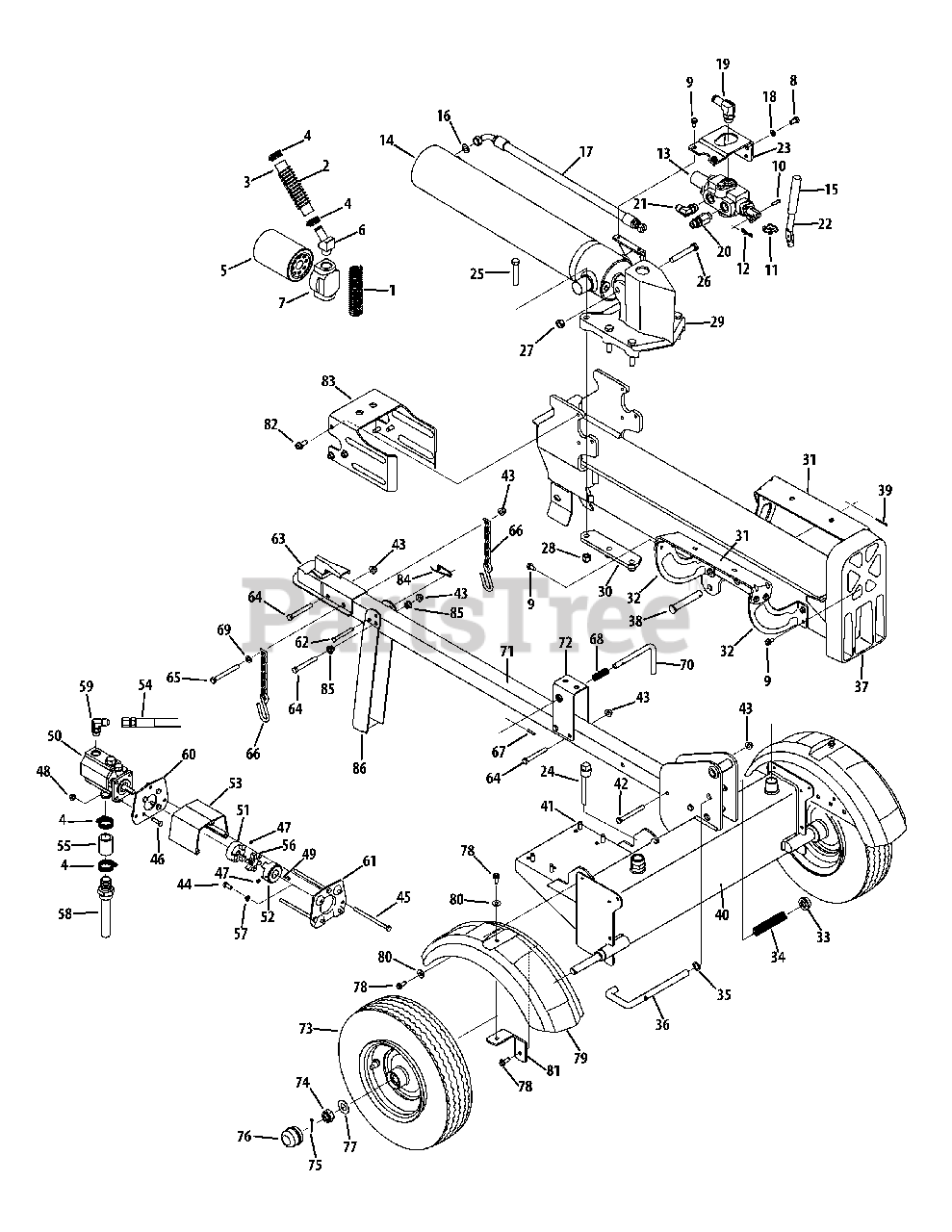

LS25 General Assembly (MTD Engine) Parts Diagram

  • Title

1

Cub Cadet 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 781-0526A

Hose Guard

$53.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 727-0443

Return Hose

$118.99

$

In Stock, only 1 left!

0

4

Cub Cadet 726-0132

Hose Clamp

$15.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, only 4 left!

0

6

Cub Cadet 737-04323

Hydraulic Fitting

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 737-04267

Filter Housing

$57.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-04585

Clevis Pin, .25 x 1.00

$6.99

$

In Stock, only 3 left!

0

11

Cub Cadet 913-04036

Valve Handle Link

$21.99

$

In Stock, only 2 left!

0

12

Cub Cadet 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 918-04740

Control Valve

$306.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 918-04713

Hydraulic Cylinder, 4.5 x 24

$817.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 720-04088

Grip, .625

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-04411

Hydraulic O-Ring

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 727-04362

Hydraulic Hose

$91.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 737-04307

Hydraulic Fitting, 7/8 x .75

$24.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 737-04309

Hydraulic Fitting, 3/4

$20.99

$

In Stock, only 3 left!

0

21

Cub Cadet 737-04320

Hydraulic Fitting, 3/4 x 13/16

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet 747-04539A

Hydraulic Valve Control

$45.99

$

In Stock, only 1 left!

0

23

Cub Cadet 781-04418-0637

Valve Bracket

$17.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 737-0348A

Plug w/ Dipstick

$23.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-1018

Hex Screw, 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

26

Cub Cadet 710-1806

Hex Screw, 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

27

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0

28

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

29

Cub Cadet 719-04529

Log Splitter Wedge

$252.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 781-0790A-0637

Log Splitter Wedge Plate

$40.99

$

In Stock, only 2 left!

0

31

Cub Cadet 781-04179-0637

Log Tray Bracket

$50.99

$

In Stock, Qty 7

0

32

Cub Cadet 781-04293-0637

Log Splitter Tray Bracket

$20.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

34

Cub Cadet 732-0583

Compression Spring, .625 x 4.0

$12.99

$

In Stock, only 1 left!

0

35

Cub Cadet 936-0116

Flat Washer, .635 x .930 x .060

$6.99

$

In Stock, only 1 left!

0

36

Cub Cadet 747-04983

Beam Lock Rod

$25.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 681-04112A-0637

Beam Assembly

$1387.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 711-05169

Clevis Pin, .625 x 4.25

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 681-04113-0637

Tank Assembly

$597.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-04683C

Hex Washer Screw, 3/8-16 x 1.000

$6.49

$

In Stock, only 2 left!

0

42

Cub Cadet 710-3085

Hex Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

43

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-0157

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

45

Cub Cadet 710-0190

Hex Screw, 5/16-18 x 4.00

$7.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

47

Cub Cadet 710-1842A

Set Screw, 1/4-20 x .38

$5.49

$

In Stock, only 1 left!

0

48

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

50

Cub Cadet 918-04127

Gear Pump

$751.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 718-04392

Coupling, .500

$14.99

$

In Stock, only 2 left!

0

52

Cub Cadet 718-04474

Coupling, .750

$26.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 719-0278

Coupling Shield Spacer

$72.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 727-04288

Hydraulic Hose

$91.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 727-04356

Input Hose, 1.0

$47.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 735-04103

Spider Bushing

$14.99

$

In Stock, only 1 left!

0

57

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 737-04320

Hydraulic Fitting

$20.99

$

In Stock, only 1 left!

0

60

Cub Cadet 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

61

Cub Cadet 781-0098A-0637

Front Coupling Support Bracket

$43.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 911-0813

Clevis Pin

$6.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 681-04030

Hitch Coupling Assembly

$72.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-0521

Hex Screw, 3/8-16 x 3.00

$5.49

$

In Stock, Qty 10

0

65

Cub Cadet 710-3085

Hex Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

66

Cub Cadet 713-0433A

Tow Chain

$44.99

$

In Stock, only 1 left!

0

67

Cub Cadet 715-0120

Spirol Pin, 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

68

Cub Cadet 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 6

0

69

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

70

Cub Cadet 747-1261

Latching Rod

$39.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 781-04424-4021

Tongue Tube, 2.0 x 2.0

$59.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 781-1045-4021

Tongue Latch

$55.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 634-0187

Complete Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 921-0168

Dust Seal

$9.49

$

In Stock, Qty 18

0

73

Cub Cadet 941-04089

Roller Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

74

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

75

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

77

Cub Cadet 936-0351

Flat Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-0371

Thrust Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

81

Cub Cadet 781-1024A-0637

Fender Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-04683C

Hex Washer Screw, 3/8-16 x 1.000

$6.49

$

In Stock, only 2 left!

0

83

Cub Cadet 781-04426-4021

Dislodger Bracket

$81.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

85

Cub Cadet 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 781-04430-4021

Jack Stand

$42.99

$

Usually ships in 3-6 days

0
