LS 25 CC (24BG55M1710) - Cub Cadet Log Splitter (2015) 170-DU Carburetor Parts Diagram

Log Splitter

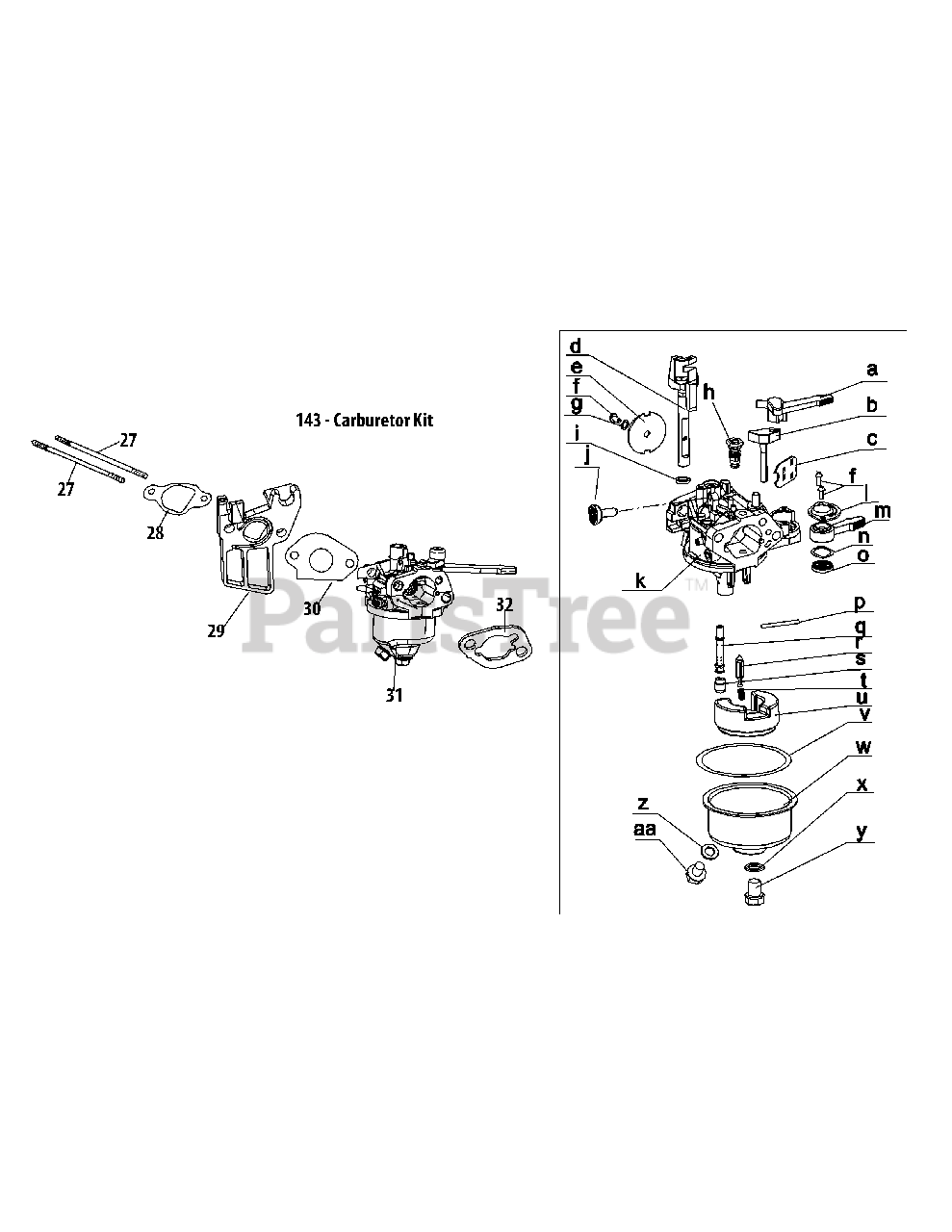

170-DU Carburetor Parts Diagram

  • Title

27

Cub Cadet 710-05101

Stud M6×110

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

29

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

30

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

31

Cub Cadet 651-05106

Carburetor Assembly
(Superseded to 951-05106)

$97.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

143

Cub Cadet 651-05107

Carburetor Kit Dn-170
(Superseded to 951-05107)

Note: (Incl.h,p,q,r,s,t,u,v,x,z)

$57.99

$

Usually ships in 3-6 days

0

a

Cub Cadet n/a

Control Lever,Choke

$

$

Currently unavailable

b

Cub Cadet n/a

Choke Shaft

$

$

Currently unavailable

c

Cub Cadet n/a

Choke Plate

$

$

Currently unavailable

d

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

e

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable

f

Cub Cadet 710-05469

Screw M3×6

$4.49

$

Usually ships in 3-6 days

0

g

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

h

Cub Cadet 793-00118

Idle Jet Assembly
(Superseded to 993-00118)

$7.99

$

Usually ships in 3-6 days

0

i

Cub Cadet n/a

Gasket, Throttle Plate

$

$

Currently unavailable

j

Cub Cadet n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

k

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

l

Cub Cadet n/a

Fuel Shutoff Cover

$

$

Currently unavailable

m

Cub Cadet n/a

Fuel Shutoff Lever

$

$

Currently unavailable

n

Cub Cadet n/a

Fuel Shutoff Washer

$

$

Currently unavailable

o

Cub Cadet n/a

Fuel Shutoff Valve

$

$

Currently unavailable

p

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

q

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

r

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

s

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

t

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

u

Cub Cadet n/a

Float

$

$

Currently unavailable

v

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

w

Cub Cadet n/a

Fuel Bowl

$

$

Currently unavailable

x

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

y

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

z

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

aa

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0
