LS 25 CC (24BF552B710) - Cub Cadet Log Splitter (2020) Pump Parts Diagram

Log Splitter

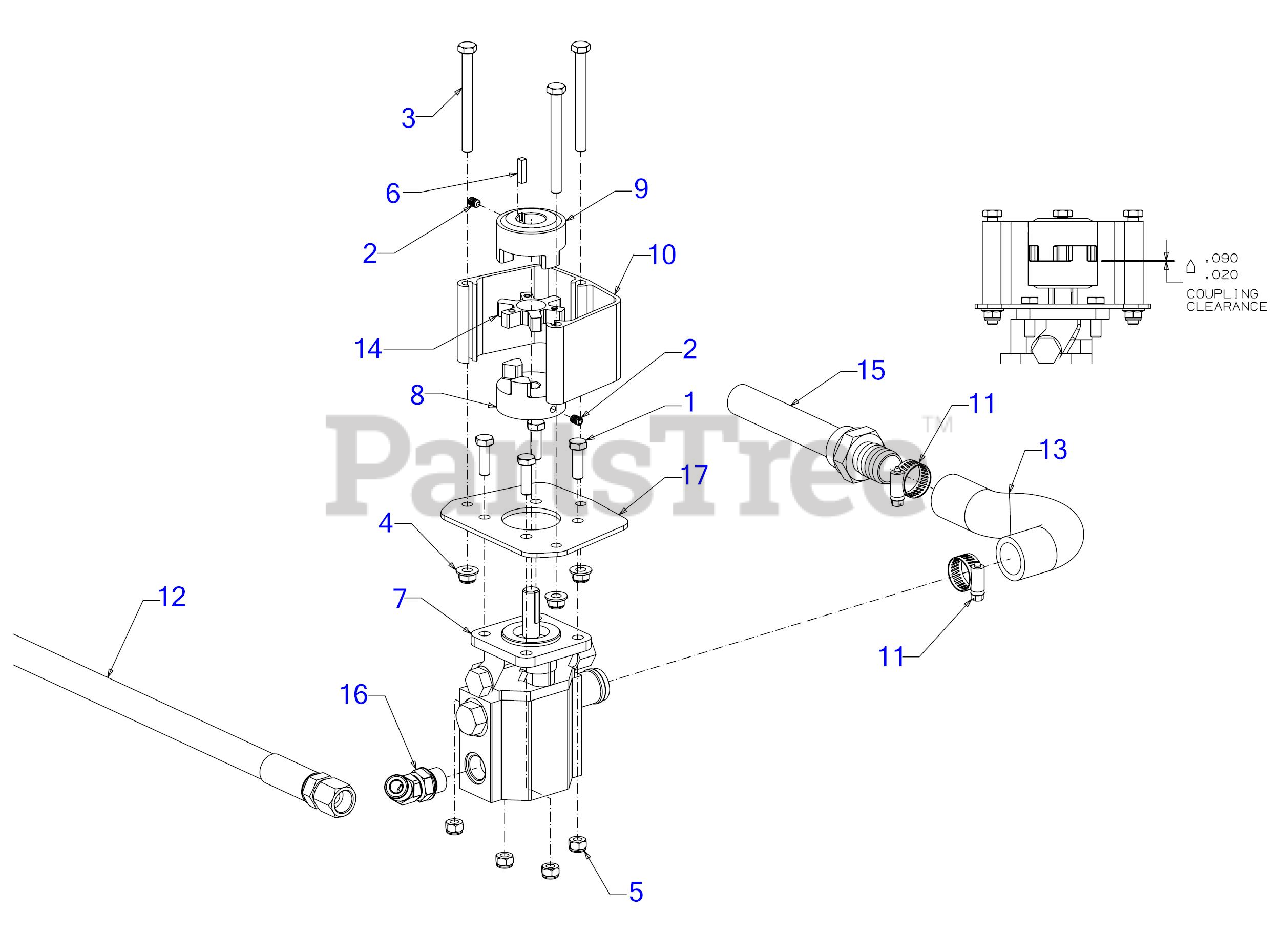

Pump Parts Diagram

  • Title

1

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

2

Cub Cadet 710-1842A

SCREW 1/4-20 x .38

$5.49

$

In Stock, only 1 left!

0

3

Cub Cadet 710-3056

SCREW 5/16-18 x 3.25 GR5

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 912-0429

HEX NUT
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 914-0122

SQUARE KEY 3/16 x .7
(Superseded to 714-0122)

$

$

Not available

7

Cub Cadet 918-04127

LOGSPLITTER GEAR PUMP 11GPM

$751.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 718-04392

LOGSPLITTER COUPLING .500

$14.99

$

In Stock, only 2 left!

0

9

Cub Cadet 718-04395

LOGSPLITTER COUPLING .875

$18.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 719-0353

COUPLING SHIELD

$54.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0132

HOSE CLAMP-5/8

$15.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 727-04288

48" HYDRAULIC HOSE

$91.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 727-04290

INLET HOSE
(Superseded to 727-04130)

$106.99

$

In Stock, only 1 left!

0

14

Cub Cadet 735-04103

SPIDER COUPLING BUSHING

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet 737-04308

INLET FILTER

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 737-04321

HYDRAULIC FITTING

$17.99

$

In Stock, only 1 left!

0

17

Cub Cadet 781-0097-0637

SUPPORT BRACKET

$69.99

$

In Stock, only 3 left!

0
