LS 22 - Bear Cat 22-Ton Log Splitter, 170cc Subaru (SN: D03922 & Above) LS 22 Body (SN: D08961 - CURRENT) Parts Diagram

22-Ton Log Splitter, 170cc Subaru

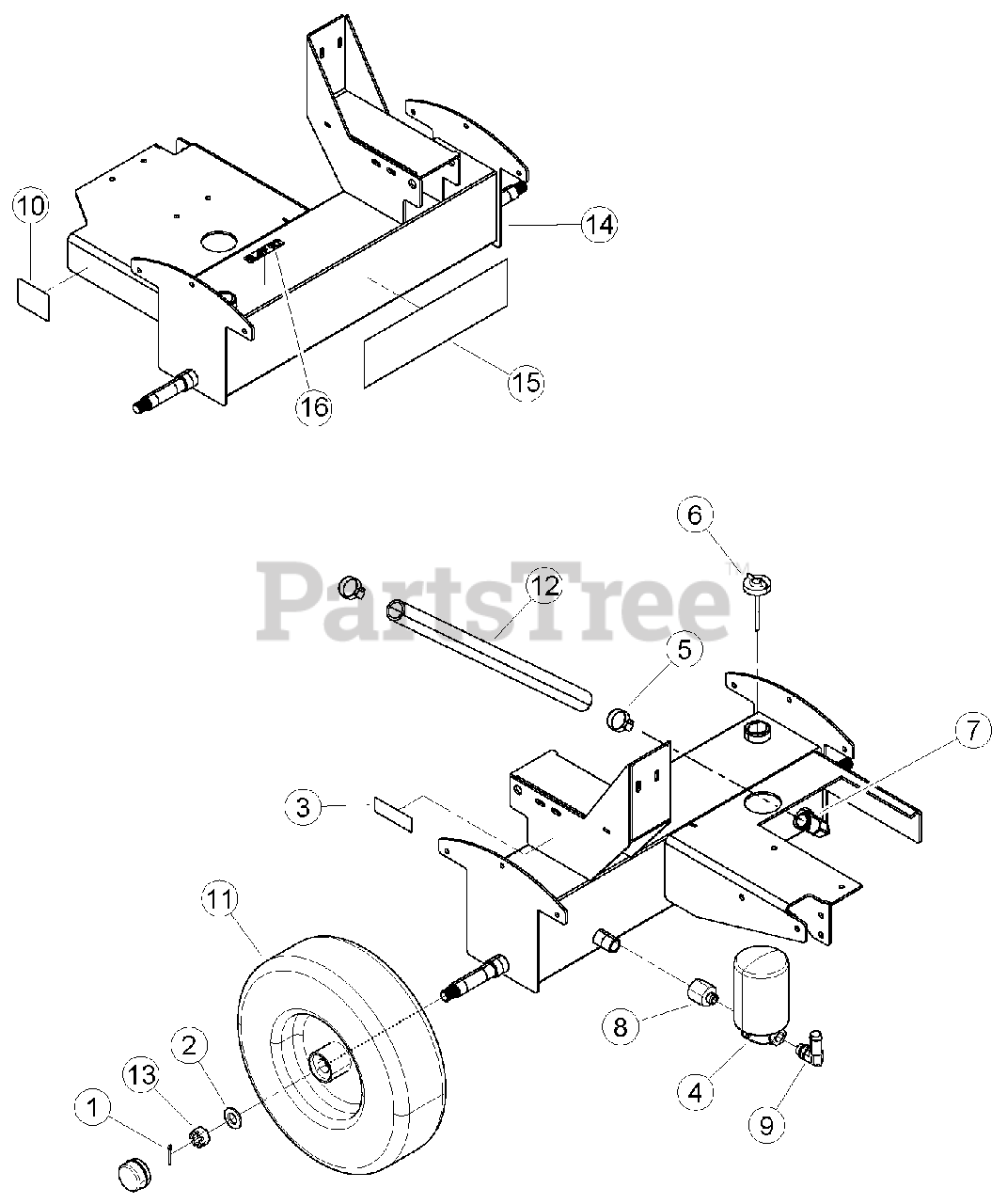

LS 22 Body (SN: D08961 - CURRENT) Parts Diagram

  • Title

1

15068

PIN, 5/32 X 1-1/4 COTTER ZP

$

$

Not available

2

15098

WASHER, 3/4 SAE FLAT ZP

$

$

Not available

3

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

4

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

Bear Cat 16922

FILTER, ELEMENT

$48.99

$

Usually ships in 3-7 days

0

5

16602

CLAMP, 1-1/4" HOSE

$

$

Not available

6

Bear Cat 18518-00

CAP, W/DIPSTICK
(Superseded to 71594-00)

$77.99

$

Usually ships in 3-7 days

0

7

Bear Cat 31924-00

ADAPTER, 1" HOSE BEAD X -12 MORING

$47.99

$

Usually ships in 3-7 days

0

8

Bear Cat 31965-00

ADAPTER, -8 MORING / -12 FMNPT

$50.99

$

Usually ships in 3-7 days

0

9

Bear Cat 31966-00

ADAPTER, -8 MORING / 3/4" HOSE BARB 90

$37.99

$

Usually ships in 3-7 days

0

10

Bear Cat 32158-00

DECAL, 4.80-8 LOAD RATING

$12.99

$

Usually ships in 3-7 days

0

11

Bear Cat 36093-00

ASSEMBLY, TIRE 4.8-8

$177.99

$

Usually ships in 3-7 days

0

12

Bear Cat 36101-00

HOSE, 1.00 ID X 22 IN 100R4 HYD

$55.99

$

Usually ships in 3-7 days

0

13

0101-0001-00

NUT, SLOTTED 3/4-16 GRADE 2

$

$

Not available

14

Bear Cat 70248-00

ASSEMBLY, LOG SPLITTER TANK ATF

Note: (INCLUDES ITEMS 10, 15 & 16)

$931.99

$

Usually ships in 3-7 days

0

15

Bear Cat 14786-00

DECAL, ECHO BEARCAT 14.12 X 4.00

$78.99

$

Usually ships in 3-7 days

0

16

32983-00

DECAL, ATF ONLY

$

$

Not available
