LS-21 W (24AF510B790) - White Outdoor 21-Ton Log Splitter (2005-2) General Assembly Parts Diagram

21-Ton Log Splitter

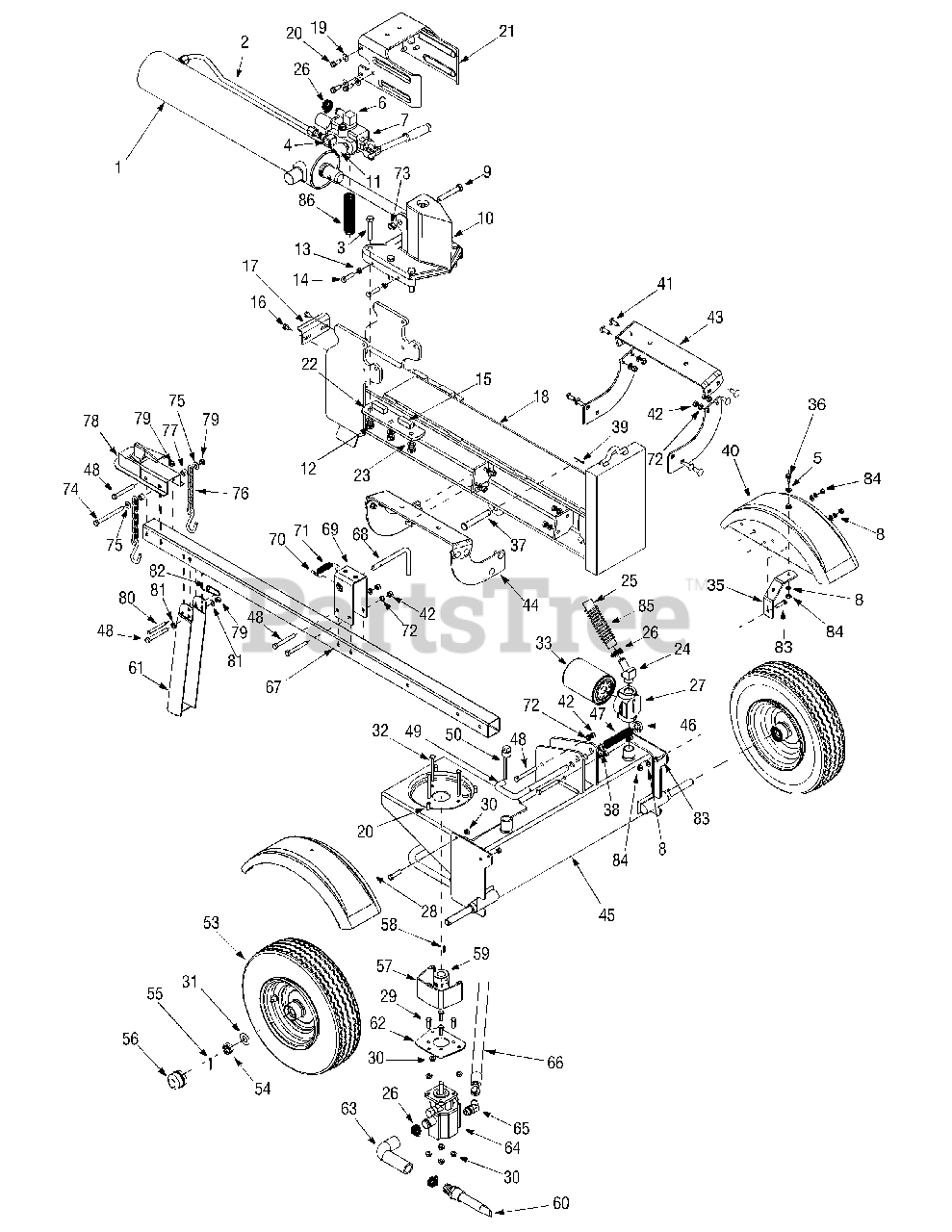

General Assembly Parts Diagram

  • Title

1

White Outdoor 718-0773

Hydraulic Cylinder

$1210.99

$

Usually ships in 3-6 days

0

1

White Outdoor 753-0490

Seal Kit

Note: for 718-0773 cylinder, not shown

$

$

Not available

2

White Outdoor 727-0634

Hydraulic Tube

$

$

Not available

3

White Outdoor 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

White Outdoor 737-0192

90 Degree Solid Adapter

$41.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0371

Flat Washer, .434 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

6

White Outdoor 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

White Outdoor 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

White Outdoor 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 2 left!

0

White Outdoor 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

$383.99

$

In Stock, only 2 left!

0

8

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-1806

Hex Cap Screw 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

10

White Outdoor 719-0550

Wedge Assembly
(Superseded to 719-0550A)

$245.99

$

Usually ships in 3-6 days

0

11

White Outdoor 737-0238

Nipple Pipe 1/2-14

$25.99

$

In Stock, Qty 6

0

12

White Outdoor 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

15

White Outdoor 781-0351

Adjustable Gib

$18.99

$

In Stock, Qty 18

0

16

White Outdoor 710-1260A

LD Screw 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 781-1054

Cylinder Support Bracket
(Superseded to 781-1054-0637)

Variations

White Outdoor 781-1054-0637

BRACKET-SUPPORT CYLIND - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 681-0173

Beam Assembly

$

$

Not available

19

White Outdoor 736-0300

Flat Washer.406 ID x.875 OD

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.

$4.49

$

In Stock, only 4 left!

0

21

White Outdoor 781-0791

Dislodger
(Superseded to 781-0791-0637)

Variations

White Outdoor 781-0791-0637

DISLODGER - POWDER BLACK (0637)

$175.99

$

Usually ships in 3-6 days

0

$175.99

$

Usually ships in 3-6 days

0

22

White Outdoor 781-0790

Back Plate
(Superseded to 781-0790A-0637)

Variations

White Outdoor 781-0790-0637

Logsplitter Wedge Plate - POWDER BLACK (0637)

$40.99

$

In Stock, only 2 left!

0

$40.99

$

In Stock, only 2 left!

0

23

White Outdoor 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

24

White Outdoor 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

25

White Outdoor 727-0443

Return Hose 3/4" ID x 44"

$118.99

$

In Stock, only 2 left!

0

26

White Outdoor 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

27

White Outdoor 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

28

White Outdoor 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0376

Hex Screw , 5/16-18 x 1.0

$3.99

$

In Stock, Qty 5

0

30

White Outdoor 712-04063

Hex Flange Nut, Nylon, 5/16-18

$3.99

$

In Stock, Qty 5

0

31

White Outdoor 736-0351

Flat Washer.760 ID x.500 OD

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-3056

Hex Bolt 5/16-18 x 3.25"

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

35

White Outdoor 781-1024

Mounting Bracket, Fender
(Superseded to 781-1024A-0637)

Variations

White Outdoor 781-1024-0637

BRACKET-MT FEND - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1238

Hex Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 711-1587

Clevis Pin

$

$

Not available

38

White Outdoor 736-0116

Flat Washer.635 ID x.93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

39

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 731-2496

Fender, Black
(Superseded to 731-2496A)

$82.99

$

Usually ships in 3-6 days

0

41

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

42

White Outdoor 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 781-0682

Log Tray
(Superseded to 753-05424)

Variations

White Outdoor 781-0682-0637

Log Splitter Tray Kit - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0682-0665

Log Splitter Tray Kit - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

44

White Outdoor 781-0686

Log Tray Bracket
(Superseded to 753-05423)

Variations

White Outdoor 781-0686-0498

LOGSPLITTER TRAY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0686-0637

LOGSPLITTER TRAY BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 681-04040

Frame Assembly
(Superseded to 981-04040A-0637)

$909.99

$

Usually ships in 3-6 days

0

46

White Outdoor 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 732-0583

Compression Spring

$12.99

$

In Stock, Qty 19

0

48

White Outdoor 710-0521

Hex Bolt 3/8-16 x 3"

$5.49

$

In Stock, Qty 11

0

49

White Outdoor 781-0690

Lock Rod

$35.99

$

In Stock, only 1 left!

0

50

White Outdoor 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

51

White Outdoor 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

53

White Outdoor 634-0186

Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

53

White Outdoor 941-0987

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

53

White Outdoor 921-0168

Grease Retainer

$9.49

$

In Stock, Qty 18

0

54

White Outdoor 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

55

White Outdoor 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

57

White Outdoor 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

58

White Outdoor 714-0122

Square Key 3/16" x.75

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 717-0891

Flexible Coupling .750 x .500
(Superseded to 917-0891)

Note: use with 718-04127, for 3/4" engine crankshaft

$159.99

$

Usually ships in 3-6 days

0

59

White Outdoor 718-04145

Flexible Coupling .875 x .500
(Superseded to 918-04145)

Note: use with 718-04127, for 7/8" engine crankshaft

$90.99

$

In Stock, Qty 8

0

59

White Outdoor 718-04395

Coupling, .875 Diameter

Note: use with 718-04127, for 7/8" engine crankshaft, Not shown

$18.99

$

In Stock, Qty 20+

0

59

White Outdoor 718-04392

Coupling, .500 Diameter

Note: use with 718-04127, Not shown

$14.99

$

In Stock, Qty 20+

0

59

White Outdoor 735-04103

Bushing, Spider Coupling

Note: use with 718-04127, Not shown

$14.99

$

In Stock, Qty 8

0

59

White Outdoor 710-1842

Set Screw
(Superseded to 710-1842A)

Note: use with 718-04127, Not shown

$5.49

$

In Stock, only 1 left!

0

59

White Outdoor 718-0686

Flexible Coupling .875 x .437
(Superseded to 918-0686)

Note: use with 718-0683

$104.99

$

In Stock, only 4 left!

0

60

White Outdoor 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

61

White Outdoor 781-0789-0650

Jack Stand
(Superseded to 781-0789)

$

$

Not available

62

White Outdoor 781-0097

Rear Coupling Support
(Superseded to 781-0097-0637)

Variations

White Outdoor 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

63

White Outdoor 727-04103

Hose
(Superseded to 727-04130)

$106.99

$

In Stock, only 1 left!

0

64

White Outdoor 718-0683

Gear Pump (11 gpm)
(Superseded to 753-05194)

Note: No longer available, furnish 753-05194 Kit

$1509.99

$

In Stock, only 1 left!

0

64

White Outdoor 753-05194

Pump Kit

Note: includes pump & couplings

$1509.99

$

In Stock, only 1 left!

0

64

White Outdoor 718-04127

Gear Pump (9.5 gpm)
(Superseded to 918-04127)

$751.99

$

Usually ships in 3-6 days

0

65

White Outdoor 737-0329

45 degree Elbow

$

$

Not available

66

White Outdoor 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

67

White Outdoor 781-0788-0650

Tongue Tube Assembly
(Superseded to 781-0788-0637)

$

$

Not available

68

White Outdoor 747-1261

Tongue Latch Rod

$39.99

$

Usually ships in 3-6 days

0

69

White Outdoor 781-1045-0650

Latch

$55.99

$

Usually ships in 3-6 days

0

70

White Outdoor 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

71

White Outdoor 732-3127

Compression Spring
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 736-0169

L-Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

73

White Outdoor 712-3022

Hex Lock Nut 1/2-13

$3.99

$

In Stock, Qty 9

0

74

White Outdoor 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

75

White Outdoor 736-0262

Flat Washer.385 ID x.870 OD

$3.99

$

In Stock, Qty 10

0

76

White Outdoor 713-0433

Chain
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

77

White Outdoor 750-0497

Spacer.375 ID x.625 OD

$10.99

$

Usually ships in 3-6 days

0

78

White Outdoor 681-04030

Hitch Coupler

$72.99

$

Usually ships in 3-6 days

0

79

White Outdoor 712-0375

Hex Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

80

White Outdoor 711-0813

Clevis Pin
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0185

Flat Washer.375 ID x.738 OD

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

83

White Outdoor 710-3038

Hex Screw, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

84

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

85

White Outdoor 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

86

White Outdoor 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0
