LS 21 - Bear Cat 21-Ton Log Splitter, 170cc Subaru (SN: C03896 - C08009) Drive (170CC SUBARU ENGINE) Parts Diagram

21-Ton Log Splitter, 170cc Subaru

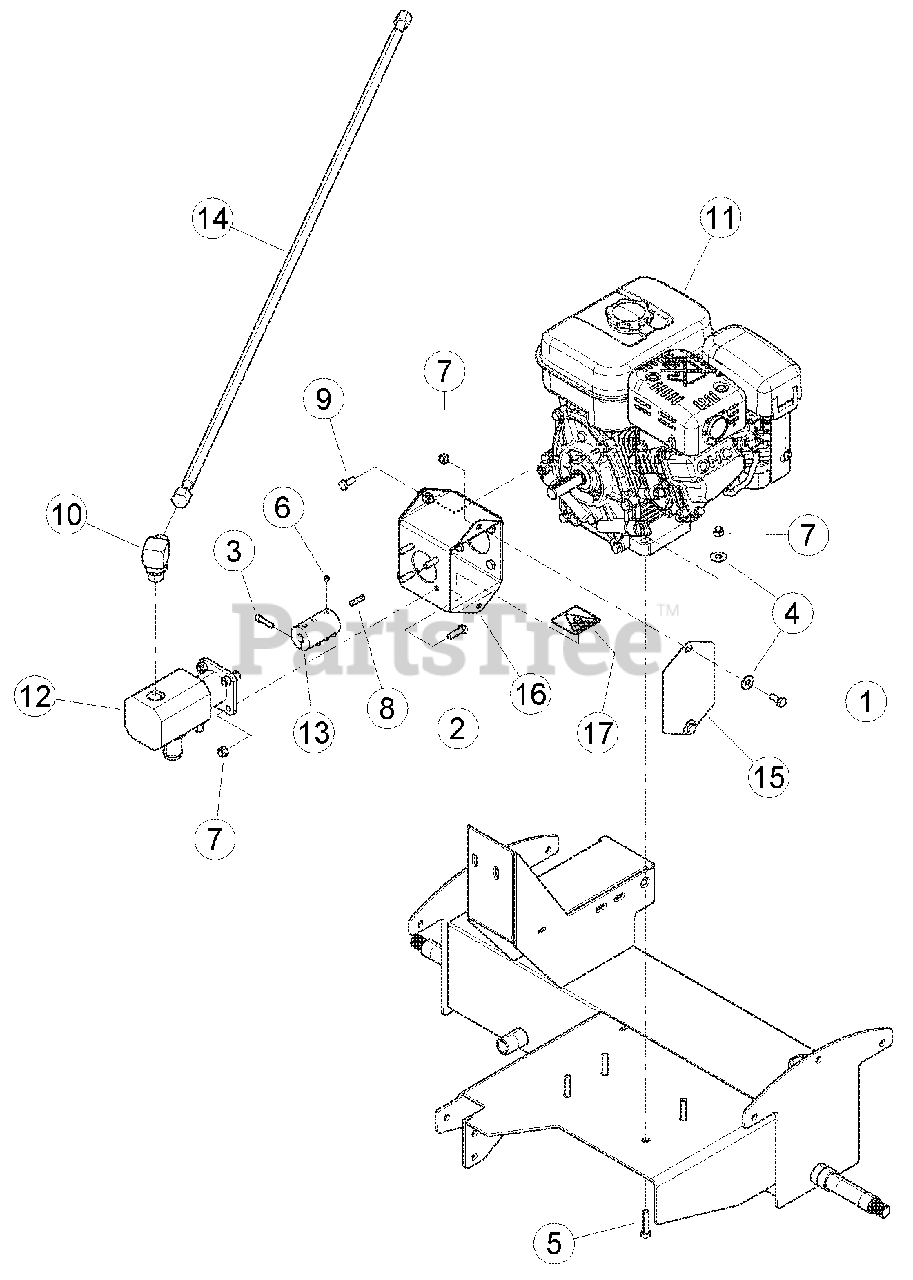

Drive (170CC SUBARU ENGINE) Parts Diagram

  • Title

1

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX GR5 ZP

$

$

Not available

2

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

3

15242

BOLT, 1/4 X 1 SOC HD CAP SCRW

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

15282

BOLT, 5/16 X 1-1/2 HEX GR5 ZP

$

$

Not available

6

15332

SCREW, 1/4-20 X 1/4 KNR CUP SKT SET

$

$

Not available

7

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

8

Bear Cat 15372

SQUARE KEY, 3/16 X 1 LONG

$1.49

$

In Stock, only 1 left!

0

9

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HEX GR5 NF ZP

$0.99

$

Usually ships in 3-7 days

0

10

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

11

ENGINE, SUBARU 170CC SP170

$

$

Not available

12

Bear Cat 31945-00

PUMP, LOG SPLITTER 2 STAGE
(Superseded to 30155-00)

$501.99

$

Usually ships in 3-7 days

0

13

Bear Cat 31963-00

COUPLER, SPLIT 3/4" TO 1/2" SHAFT
(Superseded to 70465-00)

$270.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36177-00

HOSE, .50 X 50 -10 FJICSW / -10 FJICSW

$102.99

$

Usually ships in 3-7 days

0

15

Bear Cat 77221-12

PLATE, PUMP MOUNT COVER

$19.99

$

Usually ships in 3-7 days

0

16

Bear Cat 77346-00

ASSEMBLY, PUMP MOUNT, SERVICE PART

Note: (INCLUDES ITEM 17)

$173.99

$

Usually ships in 3-7 days

0

17

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0
