LRXE 5600 (UT-03823) - Homelite Generator Governor Parts Diagram

Generator

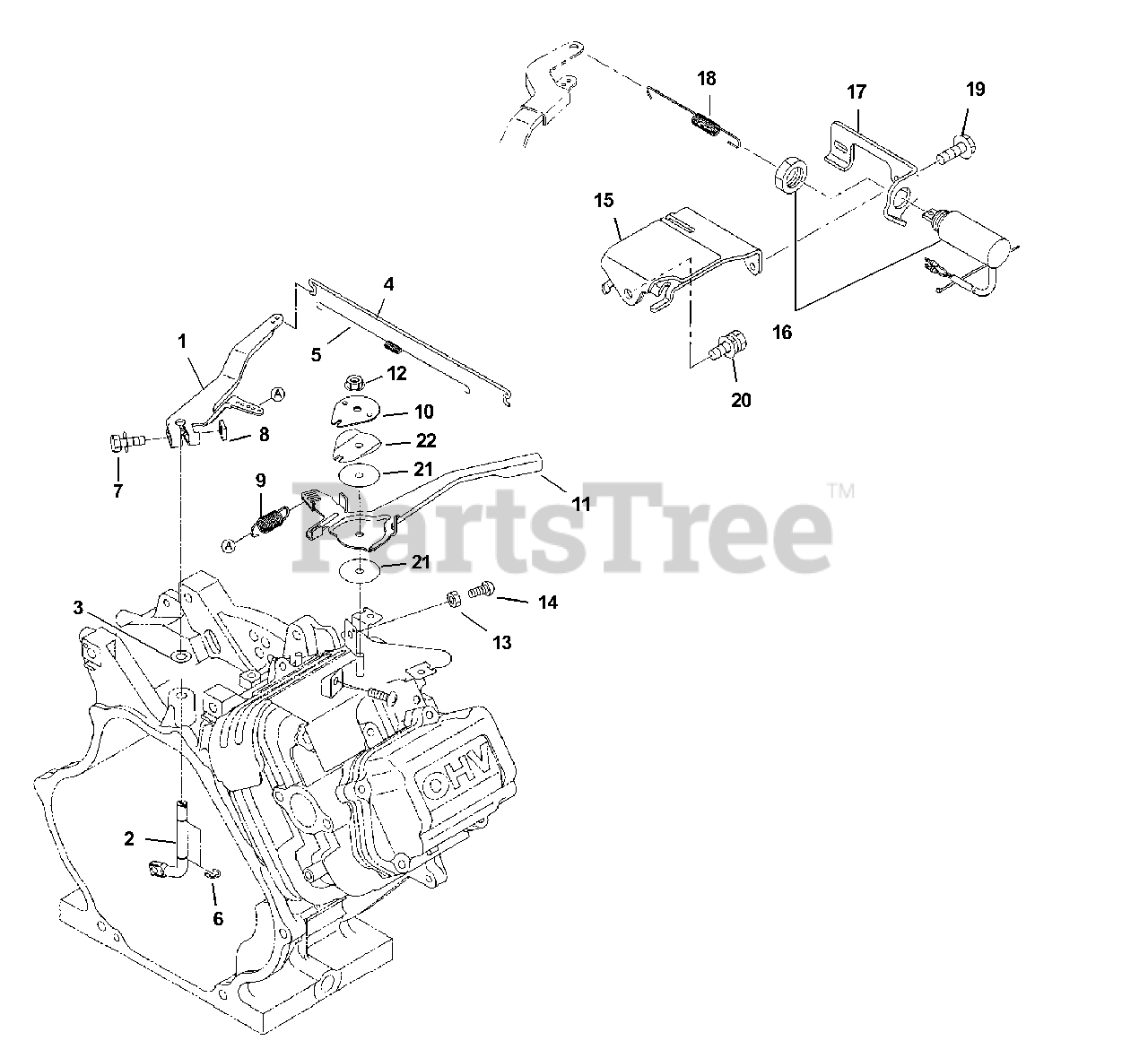

Governor Parts Diagram

  • Title
1

Homelite UP04988

Governor lever

$

$

Not available

2

Homelite UP04989

Governor shaft

$

$

Not available

3

$

$

Not available

4

Homelite UP04991

Governor rod

$

$

Not available

5

Homelite UP04992

Rod spring

$

$

Not available

$

$

Not available

7

Homelite UP03996

Bolt & washer

$

$

Not available

$

$

Not available

9

Homelite UP04994

Governor spring

$

$

Not available

10

Homelite UP03296

Stop plate

$

$

Not available

11

Homelite UP04996

Speed control lever

$

$

Not available

12

Homelite UP04997

Self lock nut

$

$

Not available

$

$

Not available

14

Homelite UP05000

Screw, panhead

Note: Torque Specs 65-80 In/Lbs; 7.3-9.0 Nm

$

$

Not available

15

Homelite UP05055

Bracket, solenoid 1 cp

$

$

Currently unavailable

16

Homelite UP05056

Solenoid

$

$

Not available

17

Homelite UP05057

Bracket, solenoid 2 cp

$

$

Currently unavailable

18

Homelite UP05058

Spring, solenoid

$

$

Currently unavailable

19

Homelite UP05059

Bolt and washer

$

$

Currently unavailable

20

Homelite UP03293

Bolt and washer

$

$

Not available

21

Homelite UP06616

Friction Washer

$

$

Currently unavailable

22

Homelite UP03297

Spring Washer

$

$

Not available
