LRXE 5600 (UT-03823) - Homelite Generator Crankshaft - Piston Parts Diagram

Generator

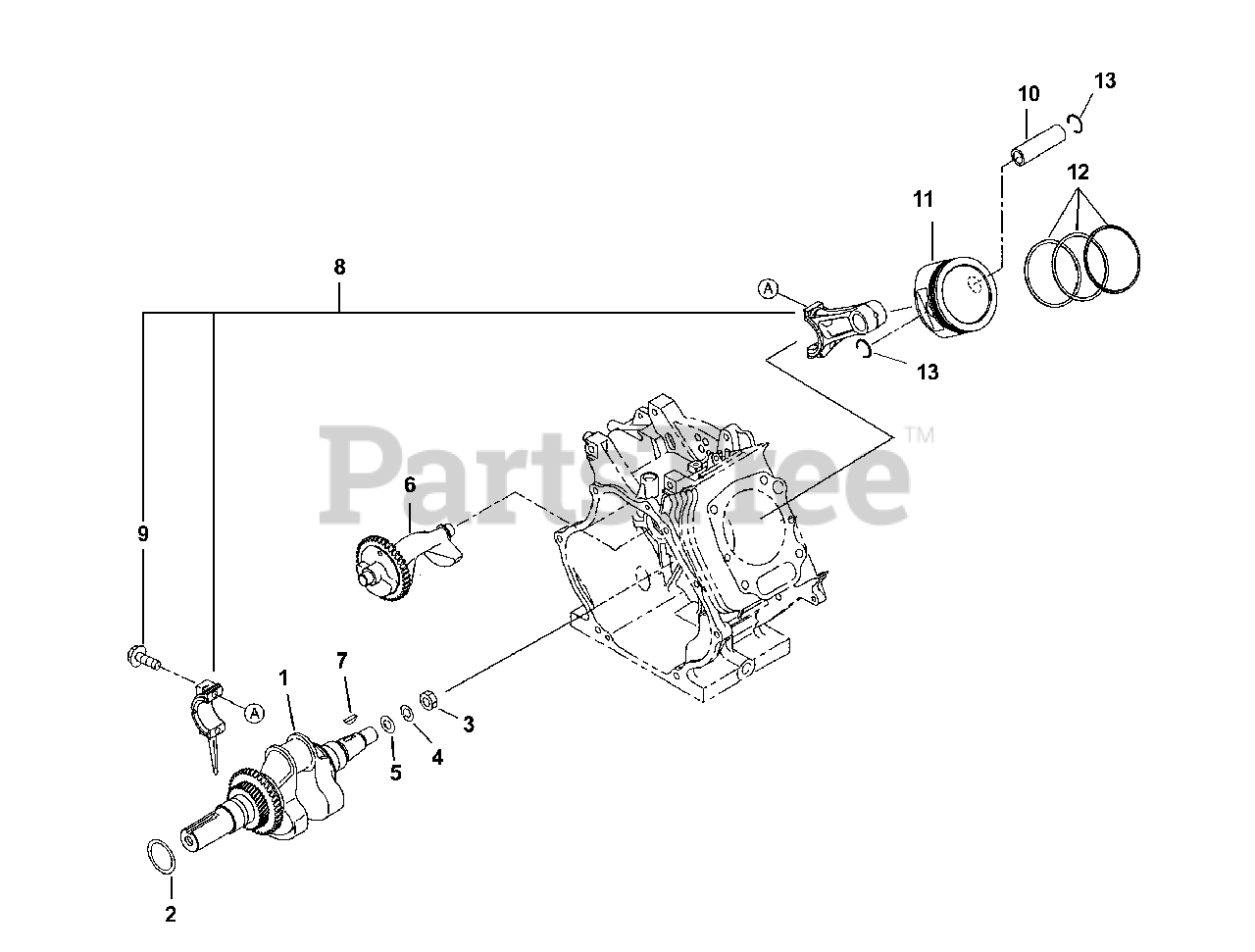

Crankshaft - Piston Parts Diagram

  • Title

1

Homelite UP04920

Crankshaft cp

$

$

Not available

2

Homelite UP04921

Spacer (.6)

$

$

Not available

Homelite UP04922

Spacer (.8)

$

$

Not available

Homelite UP04923

Spacer (1.0)

$

$

Not available

3

Homelite UP04924

Nut

Note: Torque Specs 434-470 In/Lbs; 49.0-53.1 Nm

$

$

Not available

4

Homelite UP03250

Spring washer

$

$

Not available

5

Homelite UP04925

Washer

$

$

Not available

6

Homelite UP04926

Balancer shaft

$

$

Not available

7

Homelite UP04927

Woodruff key

$

$

Not available

8

Homelite UP04928

Connecting rod

$

$

Currently unavailable

9

Homelite UP04929

Connecting rod bolt

Note: Torque Specs 122-145 In/Lbs; 13.8-16.4 Nm

$

$

Not available

10

Homelite UP04930

Piston pin

$

$

Not available

11

Homelite UP04931

Piston

$

$

Not available

Homelite UP04932

Piston (.25)

$

$

Not available

Homelite UP04933

Piston (.5)

$

$

Not available

12

Homelite UP04934

Piston ring set

Note: (Std)

$

$

Not available

Homelite UP04935

Piston ring set (.25)

$

$

Currently unavailable

Homelite UP04937

Piston ring set (.5)

$

$

Not available

13

Homelite UP04936

Clip

$

$

Not available
