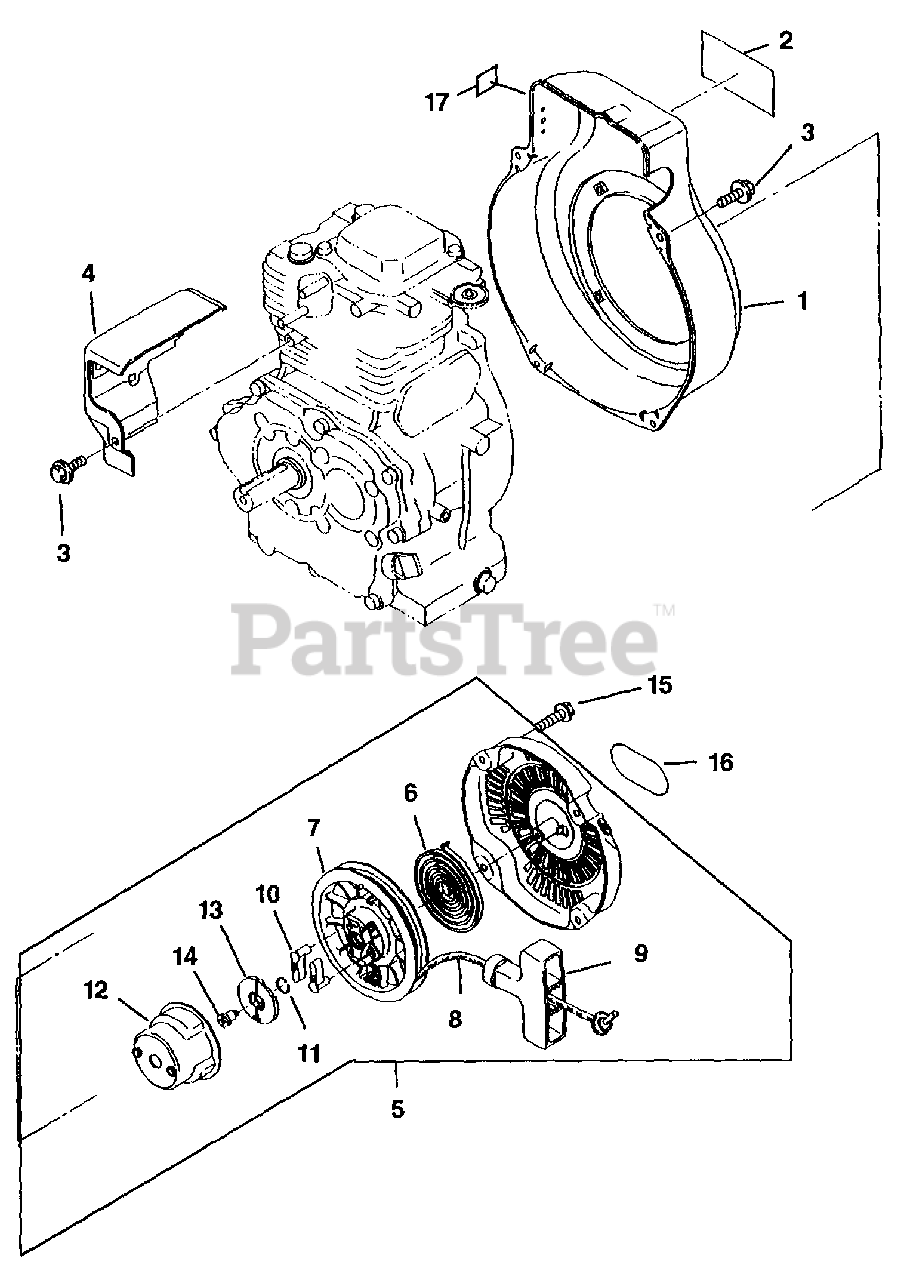

LRXE 4500 (UT-03821) - Homelite Generator Starter Parts Diagram

Generator

Starter Parts Diagram

  • Title

1

Homelite UP04442

Blower Hsg - LRX4500

$

$

Not available

Homelite UP04443

Blower Hsg - LRXE4500

$

$

Not available

2

Homelite UP04444

Label

$56.99

$

Usually ships in 3-7 days

0

3

Homelite UP03242

Flange bolt M6 x 12

Note: (Torque to 51 - 65 in/lbs [5.8 - 7.3 Nm])

$

$

Not available

4

Homelite UP04445

Head cover

$

$

Not available

5

Homelite UP04446

Recoil starter

$

$

Not available

6

Homelite UP04005

Spiral spring

$

$

Not available

7

Homelite UP04447

Reel

$

$

Not available

8

Homelite 0827410

Starter rope

$

$

Currently unavailable

9

Homelite UP04008

Starter knob

$

$

Not available

10

Homelite UP04009

Ratchet

$

$

Not available

11

Homelite 0827408

Friction spring

$

$

Not available

12

Homelite UP04448

Starter pulley

$

$

Not available

13

Homelite UP04011

Ratchet guide

$

$

Not available

14

Homelite 0827409

Set screw

Note: (Torque to 40 - 45 in/lbs [4.5 - 5.1 Nm])

$

$

Not available

15

Homelite UP03274

Flange bolt M6 x 8

Note: (Torque to 51 - 65 in/lbs [5.8 - 7.3 Nm])

$

$

Not available

16

Homelite UP04449

Label, OHV

$

$

Currently unavailable

17

Homelite UP04012

Switch Label

$

$

Not available
