LRXE 4500 (UT-03821) - Homelite Generator Governor Parts Diagram

Generator

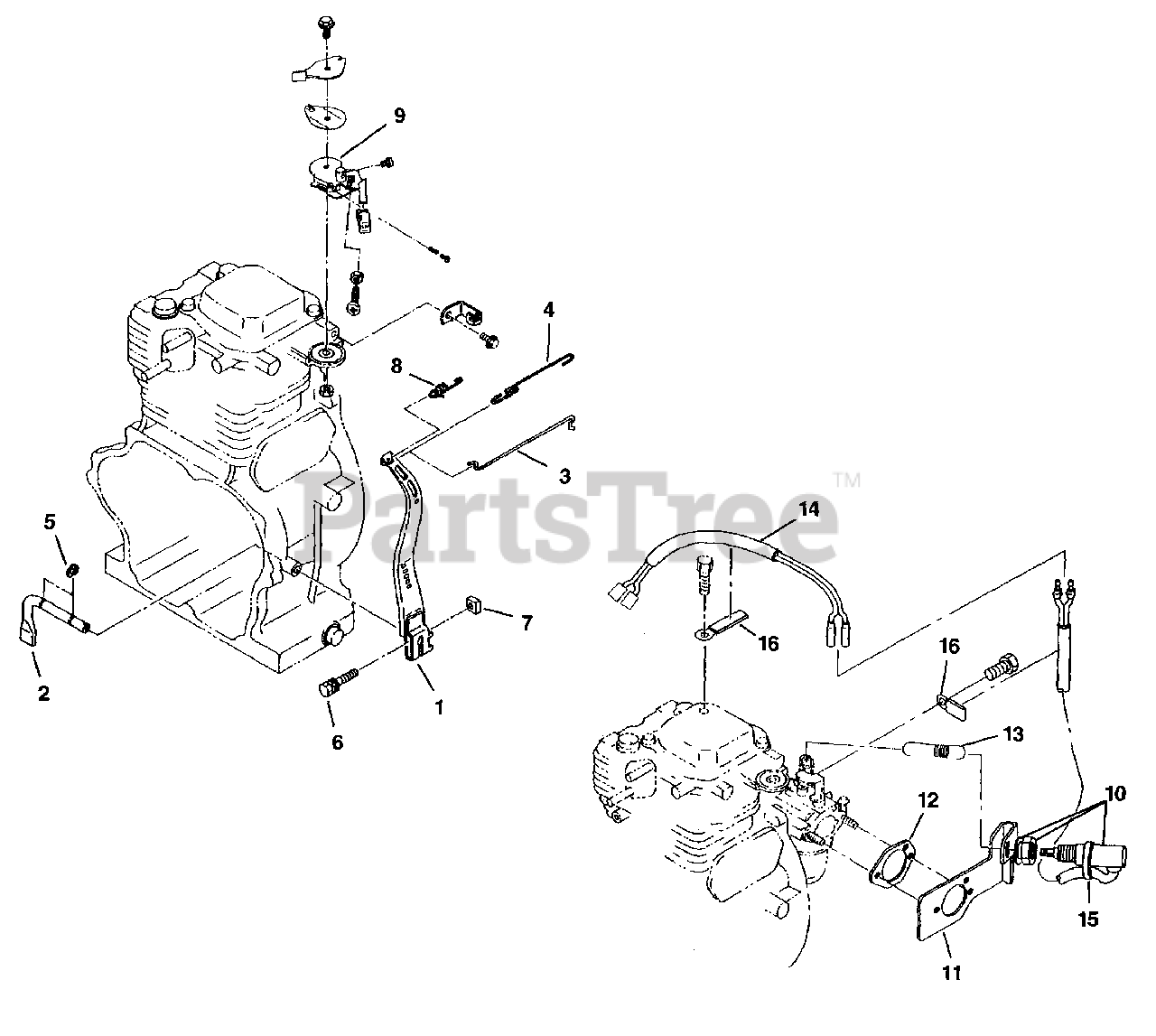

Governor Parts Diagram

  • Title

1

Homelite UP04437

Governor lever

$

$

Not available

2

Homelite UP04438

Governor shaft

$

$

Not available

3

Homelite UP04439

Governor rod

$

$

Not available

4

Homelite UP04440

Rod spring

$

$

Not available

5

Homelite UP03292

Clip

$

$

Not available

6

Homelite UP03996

Bolt & washer M6 x 12

Note: (Torque to 65 - 80 in/lbs [7.3 - 9.0 Nm])

$

$

Not available

7

Homelite UP03294

Nut

$

$

Not available

8

Homelite UP04441

Governor spring

$

$

Not available

9

Homelite UP03998

Speed control ay

$

$

Not available

10

Homelite UP04072

Solenoid cp

$

$

Not available

11

Homelite UP04527

Bracket 2

$

$

Not available

12

Homelite UP03277

Gasket, air cleaner

$

$

Not available

13

Homelite UP04529

Spring

$

$

Not available

14

Homelite UP04076

Wire 18

$

$

Not available

15

Homelite UP04530

Wire band

$

$

Not available

16

Homelite UP04079

Clamp

$

$

Not available
