LRXE 4500 (UT-03821) - Homelite Generator Exhaust Parts Diagram

Generator

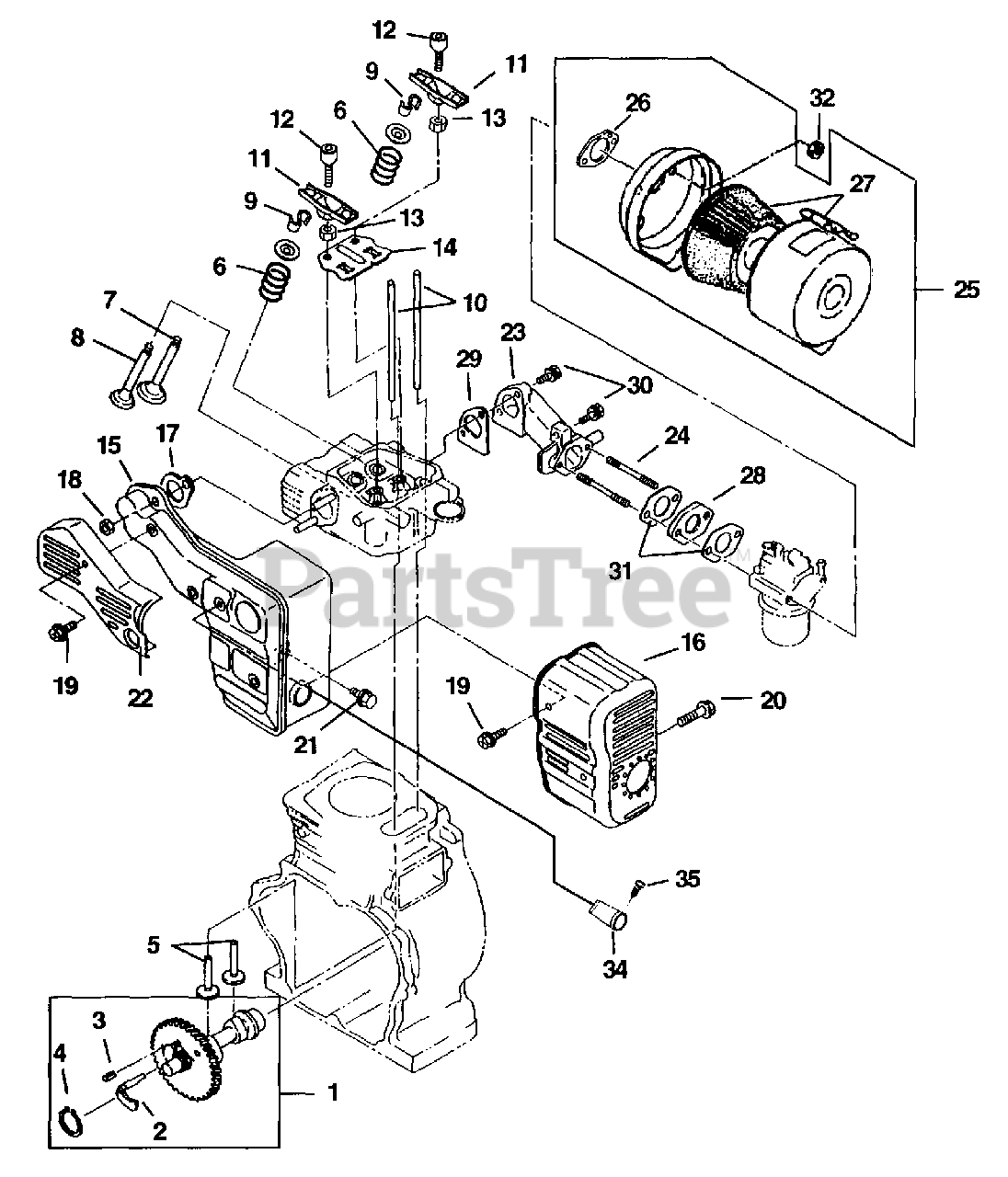

Exhaust Parts Diagram

  • Title

1

Homelite UP04414

Camshaft

$

$

Not available

2

Homelite UP04415

Release lever

$

$

Currently unavailable

3

Homelite UP03954

Spring pin

$

$

Not available

4

Homelite UP03955

Snap ring

$

$

Not available

5

Homelite UP03957

Tappet

$

$

Not available

6

Homelite UP04416

Valve spring

$

$

Not available

7

Homelite UP04417

Intake valve

$

$

Not available

8

Homelite UP04418

Exhaust valve

$

$

Not available

9

Homelite UP04419

Collet valve

$

$

Not available

10

Homelite UP04420

Push rod

$

$

Not available

11

Homelite UP03964

Rocker arm

$

$

Not available

12

Homelite UP03965

Pivot bolt

$

$

Not available

13

Homelite UP03966

Nut M12

$

$

Not available

14

Homelite UP04421

Guide plate

$

$

Not available

15

Homelite UP04422

Muffler

$

$

Not available

16

Homelite UP04423

Muffler cover

$

$

Not available

17

Homelite UP04424

Muffler gasket

$

$

Not available

18

Homelite UP03971

Nut M8

Note: (Torque to 200 - 234 in/lbs [22.5 - 26.5 Nm])

$

$

Not available

19

Homelite UP03972

Tapping bolt M8

Note: (Torque to 86 - 121 in/lbs [9.8 - 13.7 Nm])

$

$

Not available

20

Homelite UP03973

Tapping bolt M8

Note: (Torque to 86 - 121 in/lbs [9.8 - 13.7 Nm])

$

$

Not available

21

Homelite UP04071

Bolt & washer

Note: (Torque to 51 - 65 in/lbs [5.8 - 7.3 Nm])

$

$

Currently unavailable

22

Homelite UP04425

Exhaust pipe cover

$

$

Not available

23

Homelite UP04426

Intake pipe

$

$

Not available

24

Homelite UP03222

Stud

$

$

Not available

25

Homelite UP04428

Air cleaner

$

$

Not available

26

Homelite UP04429

Packing
(Superseded to UP03277)

$

$

Not available

27

Homelite UP03278

Element

$

$

Not available

28

Homelite UP03279

Insulator

$

$

Not available

29

Homelite UP04432

Intake pipe gasket

$

$

Not available

30

Homelite UP04433

Bolt & washer M8 x 28

Note: (Torque to 86 - 121 in/lbs [9.8 - 13.7 Nm])

$

$

Not available

31

Homelite UP03281

Insulator gasket

$

$

Not available

32

Homelite UP03986

Nut & washer M6

$

$

Not available

?33

Homelite UP04435

Bolt & washer

$

$

Not available

34

Homelite UP04436

Spark arrestor

$

$

Not available

35

Homelite UP03989

Tapping screw

Note: (Torque to 15 - 20 in/lbs [1.7 - 2.3 Nm])

$

$

Not available

?36

Homelite UP03990

Choke label

$

$

Not available
