LRXE 4500 (UT-03821) - Homelite Generator Electric Motor Parts Diagram

Generator

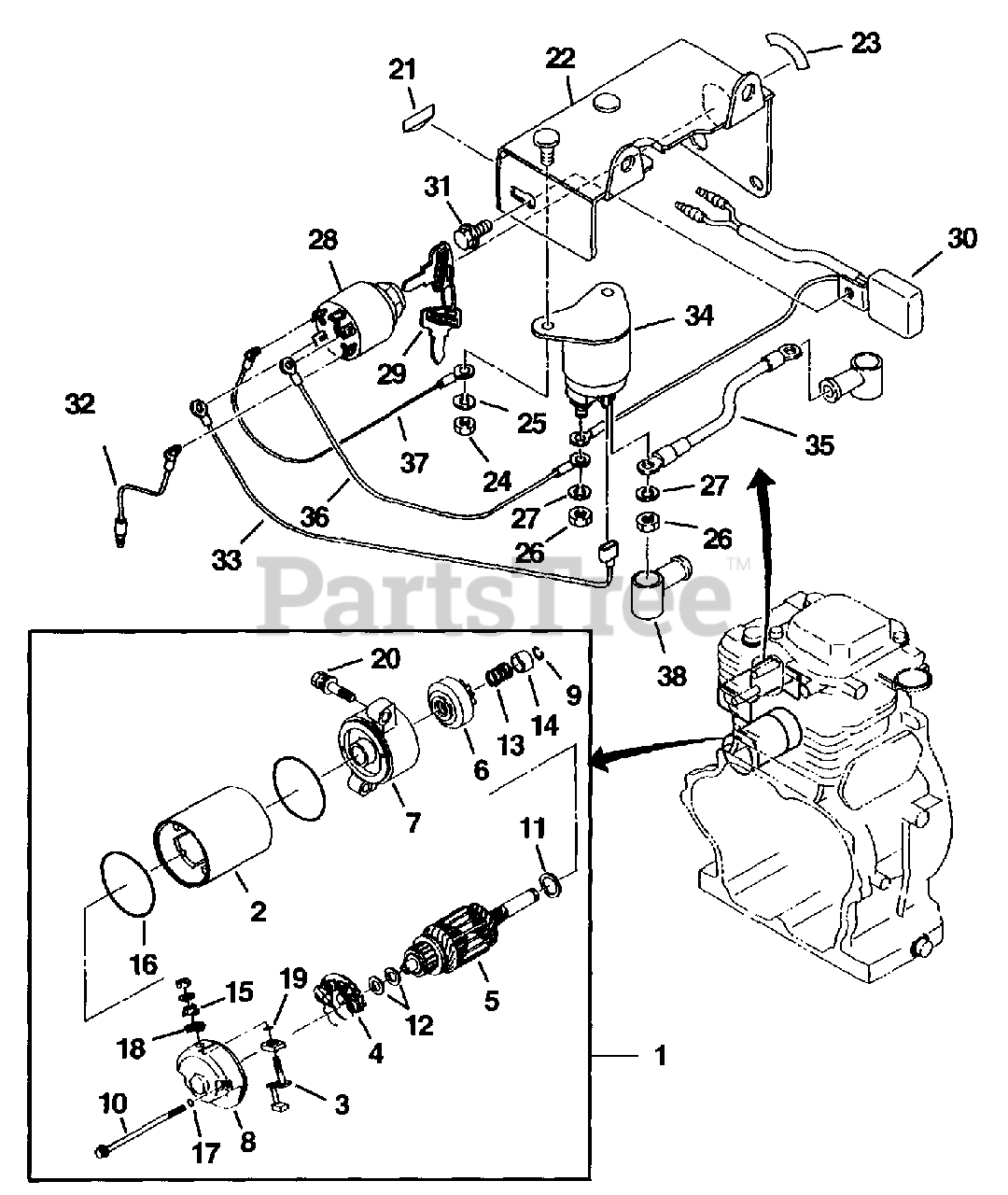

Electric Motor Parts Diagram

  • Title

1

Homelite UP04487

Starting motor

Note: (Incl. items 2 -20)

$

$

Not available

2

Homelite UP04488

Yoke ay

$

$

Not available

3

Homelite UP04509

Brush sub ay

$

$

Not available

4

Homelite UP04510

Holder ay

$

$

Not available

5

Homelite UP04511

Armature ay

$

$

Not available

6

Homelite UP04512

Clutch sub ay

$

$

Not available

7

Homelite UP04513

Housing ay

$

$

Not available

8

Homelite UP04514

Frame ay

$

$

Not available

9

Homelite UP04490

Snap ring

$

$

Not available

10

Homelite UP04515

Through bolt

$

$

Not available

11

Homelite UP04491

Plate washer

$

$

Not available

12

Homelite UP04516

Plate washer

$

$

Not available

13

Homelite UP04492

Spring

$

$

Not available

14

Homelite UP04493

Pinion stop nut

$

$

Not available

15

Homelite UP04517

Nut

$

$

Not available

16

Homelite UP04494

O ring

$

$

Not available

17

Homelite UP04495

O ring

$

$

Not available

18

Homelite UP04518

Bushing

$

$

Not available

19

Homelite UP04519

O ring

$

$

Not available

20

Homelite UP04496

Bolt & washer MS

Note: (Torque to 80 - 100 in/lbs [9.0 - 11.3 Nm])

$

$

Not available

21

Homelite UP04498

Battery label

$10.99

$

Usually ships in 3-7 days

0

22

Homelite UP04499

Control box

$

$

Not available

23

Homelite UP04520

Starter switch label

$

$

Not available

24

Homelite UP04500

Nut

$

$

Not available

25

Homelite UP04501

Spring washer

$

$

Not available

26

Homelite UP03299

Nut

$

$

Not available

27

Homelite UP04503

Spring washer

$

$

Not available

28

Homelite UP04504

Switch

$

$

Not available

29

Homelite UP04505

Key

$

$

Not available

30

Homelite UP04506

Diode rectifier

$

$

Not available

31

Homelite UP04507

Screw & washer

Note: (Torque to 25 - 30 in/lbs [2.8 - 3.4 Nm])

$

$

Not available

32

Homelite UP04508

Wire 5

$

$

Not available

33

Homelite UP04502

Wire 2

$

$

Not available

34

Homelite UP04521

Magnetic switch

$

$

Not available

35

Homelite UP04522

Wire 20

$

$

Not available

36

Homelite UP04523

Wire 5

$

$

Not available

37

Homelite UP04524

Wire 2

$

$

Not available

38

Homelite UP04525

Wire casing

$

$

Not available
