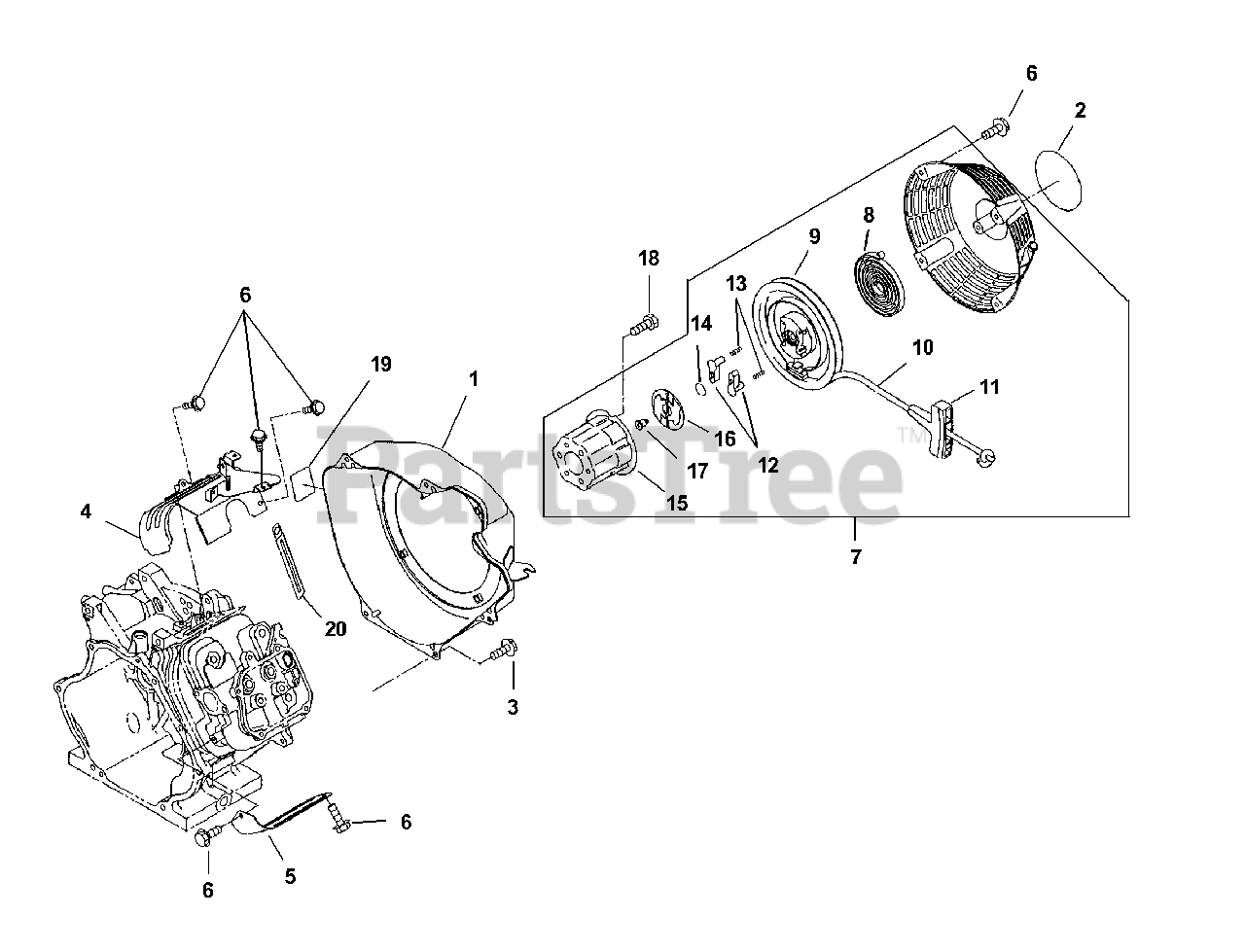

LRX 5600 (UT-03822) - Homelite Generator Starter Parts Diagram

Generator

Starter Parts Diagram

  • Title

1

Homelite UP05002

Blower housing

$

$

Not available

2

Homelite UP05003

Label (trademark)

$39.99

$

Usually ships in 3-7 days

0

3

Homelite UP03242

Flange bolt

Note: Torque Specs 51-65 In/Lbs; 5.8-7.3 Nm

$

$

Not available

4

Homelite UP05004

Cylinder baffle 1 UN

$

$

Not available

5

Homelite UP05005

Cylinder baffle 2

$

$

Currently unavailable

6

Homelite UP03274

Flange bolt

Note: Torque Specs 51-65 In/Lbs; 5.8-7.3 Nm

$

$

Not available

7

Homelite UP05007

Recoil starter assy

$

$

Not available

8

Homelite UP05008

Spring rewind

$

$

Not available

9

Homelite UP05009

Reel

$

$

Not available

10

Homelite 0827410

Starter rope

$

$

Currently unavailable

11

Homelite UP04008

Starter knob

$

$

Not available

12

Homelite UP05010

Ratchet

$

$

Not available

13

Homelite UP05011

Friction spring

$

$

Not available

14

Homelite 0827407

Return spring

$

$

Currently unavailable

15

Homelite UP05012

Pulley

$

$

Not available

16

Homelite UP05013

Ratchet guide

$

$

Not available

17

Homelite 0827409

Set screw

Note: Torque Specs 40-45 In/Lbs; 4.5-5.1 Nm

$

$

Not available

18

Homelite UP05014

Bolt

$

$

Not available

19

Homelite UP03358

Label (warning)

$8.49

$

Usually ships in 3-7 days

0

20

Homelite UP04062

Clamp

$

$

Not available
