LRX 5600 (UT-03822) - Homelite Generator Frame - Fuel Tank Parts Diagram

Generator

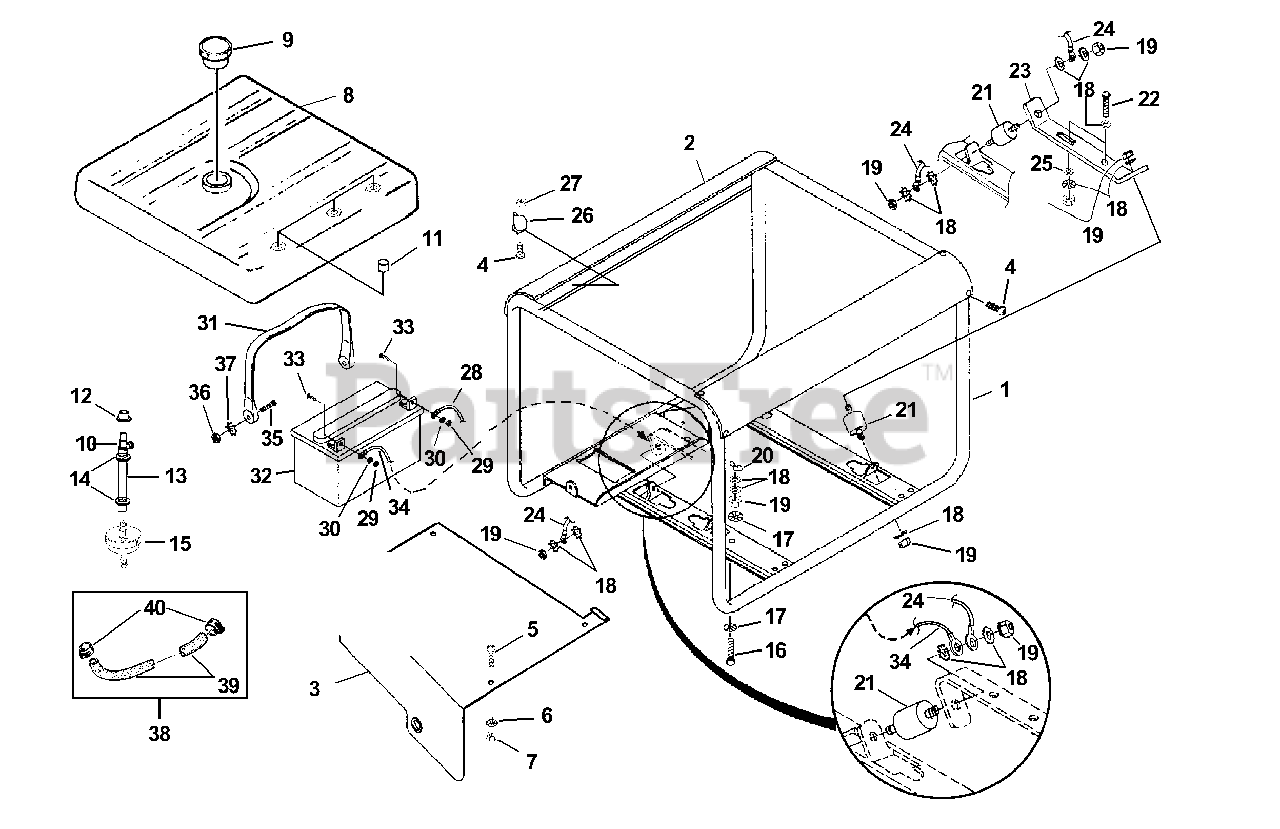

Frame - Fuel Tank Parts Diagram

  • Title

1

Homelite UP05219

Roll Cage-Recoil

$

$

Not available

Homelite UP05221

Roll Cage-Electric Start

$

$

Currently unavailable

2

Homelite UP03460

Brace-Tank Support
(Superseded to 063831)

$

$

Not available

3

Homelite UP05222

Shield-Fuel Tank

$

$

Not available

4

Homelite UP05732

Screw Serrated Hd.-Torx (10-24 X 1/2")

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Currently unavailable

5

Homelite UP03389

Screw-Pan Hd. (8-32 X 3/8")

Note: Torque Specs 8-12 In/Lbs; .9-1.4 Nm

$

$

Not available

6

Homelite UP03410

Washer-Lock #8

$

$

Not available

7

Homelite UP03393

Nut-Hex (8-32)
(Superseded to 81009)

$

$

Not available

8

Homelite UP05220

Fuel Tank (7 Gal.)

$

$

Currently unavailable

9

Homelite UP03458

Cap-Fuel (2 1/4" Dia.)

$

$

Currently unavailable

10

Homelite UP03476

Valve-Fuel

$

$

Not available

11

Homelite UP03465

Pad-Fuel Tank
(Superseded to 06644)

$

$

Not available

12

Homelite UP03480

Bushing

$

$

Currently unavailable

13

Homelite UP03486

Hose-Fuel (8")

$

$

Not available

14

Homelite UP03434

Clip-Hose

$

$

Currently unavailable

15

Homelite UP03697

Fuel Filter

$

$

Currently unavailable

16

Homelite UP03382

Screw-Hex Hd. (5/16-18 X 1 1/4")

Note: Torque Specs 145-155 In/Lbs; 16.4-17.5 Nm

$

$

Currently unavailable

17

Homelite UP03479

Washer, Lock -Int - Ext. (3/8")

$

$

Currently unavailable

18

Homelite UP03413

Washer-Lock (int.)

$

$

Currently unavailable

19

Homelite UP03397

Nut-Hex (5/16-18)

$

$

Not available

20

Homelite UP03395

Nut-Wing (5/16-18)

$

$

Currently unavailable

21

Homelite UP03538

Isolator
(Superseded to UP03483)

$

$

Not available

22

Homelite UP03381

Screw-Hex Hd. (5/16-18 X 3/4")
(Superseded to 80083)

Note: Torque Specs 145-155 In/Lbs; 16.4-17.5 Nm

$

$

Not available

23

Homelite UP03535

Support - Eng.
(Superseded to PS49265)

$30.99

$

Usually ships in 3-7 days

0

24

Homelite UP03511

Ground Strap

$

$

Currently unavailable

25

Homelite UP03416

Washer-Flat

$

$

Currently unavailable

26

Homelite UP04088

Stop-Tank
(Superseded to 95212)

$

$

Not available

27

Homelite UP04217

Nut
(Superseded to 07589)

$1.99

$

In Stock, only 1 left!

0

Homelite UP03520

Battery & Cable Kit

$

$

Not available

28

Homelite UP03453

Battery Cable (Red to Switch)

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

29

Homelite UP03399

Nut-Hex (1/4-20)
(Superseded to 81242)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite UP03409

Washer-Lock
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

31

Homelite UP03455

Strap-Battery Hold Down

$

$

Currently unavailable

32

Homelite UP03494

Battery (12 Volt)

$

$

Not available

33

Homelite UP03380

Screw-Hex Hd (1/4-20 x 5/8")
(Superseded to 80049)

$

$

Not available

34

Homelite UP03456

Battery Cable (Black to Ground)

Note: Torque Specs 40-50 In/Lbs

$

$

Not available

35

Homelite UP03468

Screw-Shoulder (10-32 x 1/4")

$

$

Not available

36

Homelite UP03394

Nut-Hex (10-32)

$

$

Not available

37

Homelite UP03411

Washer-Lock

Note: Torque Specs 12-16 In/Lbs

$

$

Currently unavailable

38

Homelite UP05101

Fuel Pipe

$

$

Currently unavailable

39

Homelite UP05015

Rubber Pipe

$

$

Not available

40

Homelite UP04016

Hose Clamp

$

$

Not available
