LRX 5600 (UT-03822) - Homelite Generator Exhaust Parts Diagram

Generator

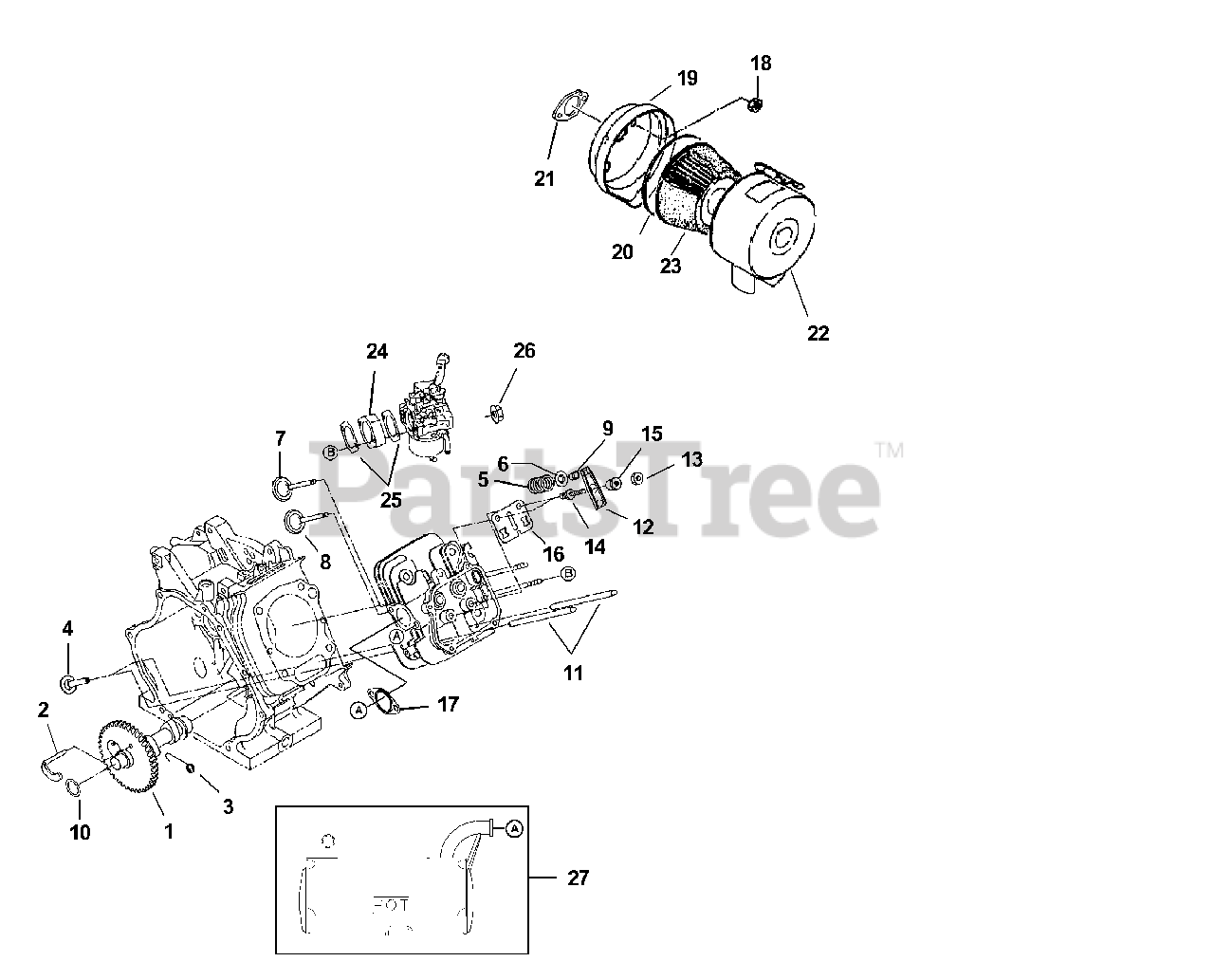

Exhaust Parts Diagram

  • Title

1

Homelite UP04938

Camshaft

$

$

Currently unavailable

2

Homelite UP04939

Release lever cp

$

$

Not available

3

Homelite UP04940

Return spring

$

$

Not available

4

Homelite UP03957

Tappet

$

$

Not available

5

Homelite UP04416

Valve spring

$

$

Not available

6

Homelite UP04942

Spring retainer

$

$

Not available

7

Homelite UP04943

Intake valve

$

$

Not available

8

Homelite UP04944

Exhaust valve

$

$

Not available

9

Homelite UP04419

Collet, valve

$

$

Not available

10

Homelite UP04945

Spacer T=0.6

$

$

Not available

Homelite UP04946

Spacer T=0.7

$

$

Not available

Homelite UP04947

Spacer T=0.8

$

$

Not available

11

Homelite UP04948

Push rod

$

$

Not available

12

Homelite UP04949

Rocker arm

$

$

Not available

13

Homelite UP04950

Nut

Note: Torque Specs 62 In/Lbs; 7 Nm

$

$

Not available

14

Homelite UP04951

Bolt, pivot

$

$

Not available

15

Homelite UP04952

Pivot

$

$

Not available

16

Homelite UP04953

Guide plate

$

$

Not available

17

Homelite UP04954

Gasket, exhaust

$

$

Not available

18

Homelite UP04979

Cap nut

$

$

Not available

19

Homelite UP04981

Cleaner base cp

$

$

Not available

20

Homelite UP04983

Packing

$

$

Not available

21

Homelite UP04984

Packing

$

$

Not available

22

Homelite UP04985

Cleaner cover

$

$

Currently unavailable

23

Homelite UP04978

Element, Air Cleaner

$

$

Not available

24

Homelite UP04986

Insulator

$

$

Not available

25

Homelite UP04987

Gasket, insulator

$

$

Not available

26

Homelite UP03987

Flange nut

$

$

Not available

27

Homelite UP04990

Muffler

$

$

Not available
