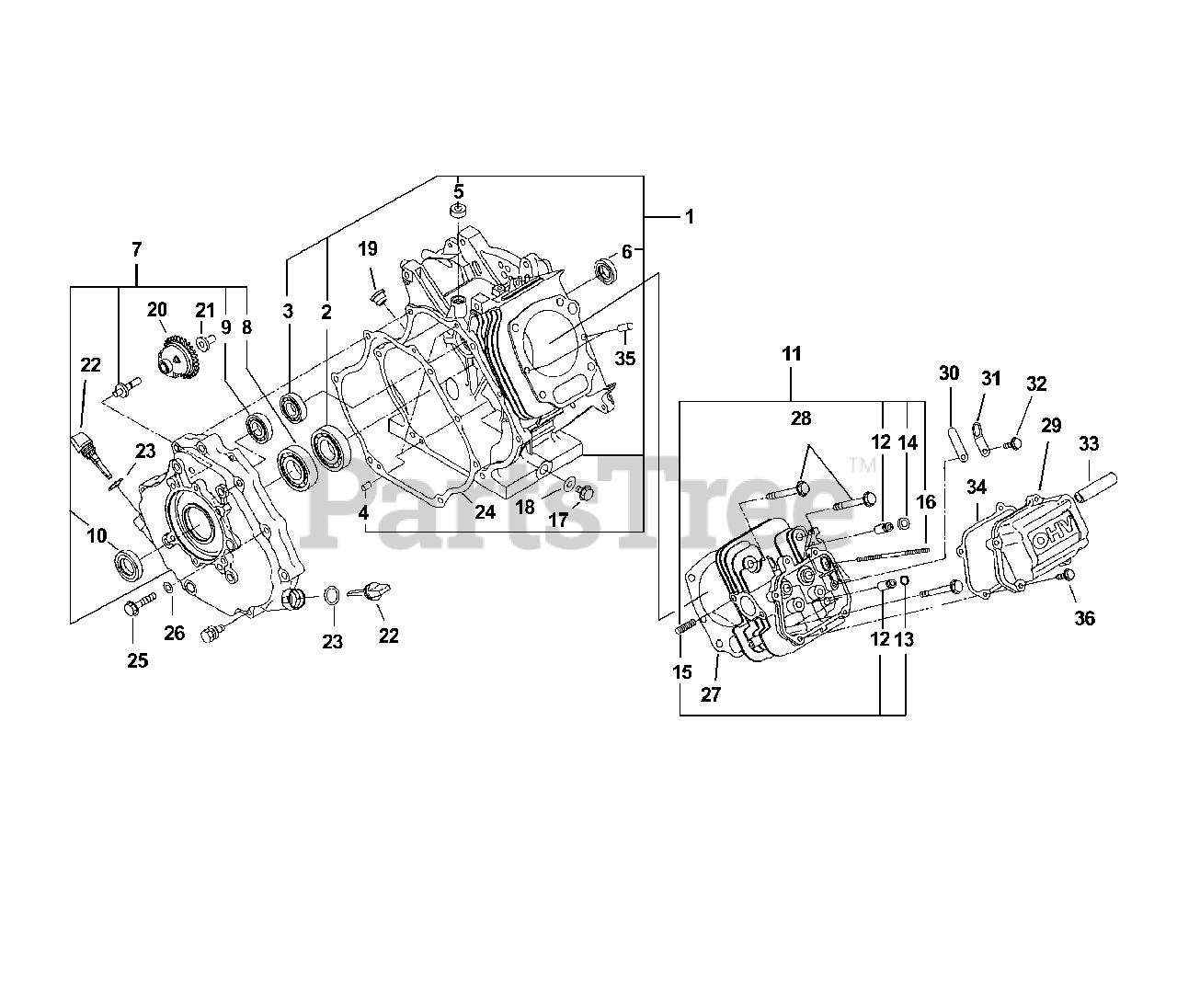

LRX 5600 (UT-03822) - Homelite Generator Crankcase Parts Diagram

Generator

Crankcase Parts Diagram

  • Title
1

Homelite UP04895

Crankcase

$

$

Not available

2

Homelite UP04899

Ball bearing

$

$

Not available

3

Homelite UP04900

Ball bearing

$

$

Not available

4

Homelite UP03220

Dowel pin

$

$

Not available

5

Homelite UP04902

Oil seal

$

$

Not available

6

Homelite UP04898

Oil seal

$

$

Not available

7

Homelite UP04904

Main bearing cover

$

$

Not available

8

Homelite UP04899

Ball bearing

$

$

Not available

9

Homelite UP04900

Ball bearing

$

$

Not available

10

Homelite UP04898

Oil seal

$

$

Not available

11

Homelite UP04911

Cylinder head

$

$

Not available

12

Homelite UP03740

Valve guide

$

$

Not available

$

$

Not available

14

Homelite UP04897

Seal, Int valve

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

18

$

$

Not available

19

Homelite UP04903

Plug, rubber

$

$

Not available

20

Homelite UP04906

Governor gear cp

$

$

Not available

21

Homelite UP03229

Governor sleeve

$

$

Not available

22

Homelite UP04907

Oil gauge

$

$

Currently unavailable

23

$

$

Not available

24

Homelite UP04909

Bearing cover gasket

$

$

Not available

25

Homelite UP04910

Flange, bolt

Note: Torque Specs 150-162 In/Lbs; 17-18.5 Nm

$

$

Not available

26

$

$

Not available

27

Homelite UP04912

Head gasket

$

$

Not available

28

Homelite UP04913

Flange bolt

Note: Torque Specs 159-188 In/Lbs; 18.0-21.2 Nm

$

$

Not available

29

Homelite UP04914

Rocker cover cp

$

$

Not available

30

Homelite UP04915

Retainer plate

$

$

Not available

31

Homelite UP04916

Leaf valve

$

$

Not available

32

Homelite UP03274

Flange bolt

$

$

Not available

33

Homelite UP04917

Rubber pipe

$

$

Not available

34

Homelite UP04918

Gasket rocker cover

$

$

Not available

35

Homelite UP03220

Dowel pin

$

$

Not available

36

Homelite UP03984

Flange bolt

Note: Torque Specs 72-84 In/Lbs; 8.0-9.5 Nm

$

$

Not available

?37

Homelite UP04919

Oil shelter plate

Note: (Not Shown)

$5.99

$

Usually ships in 3-7 days
