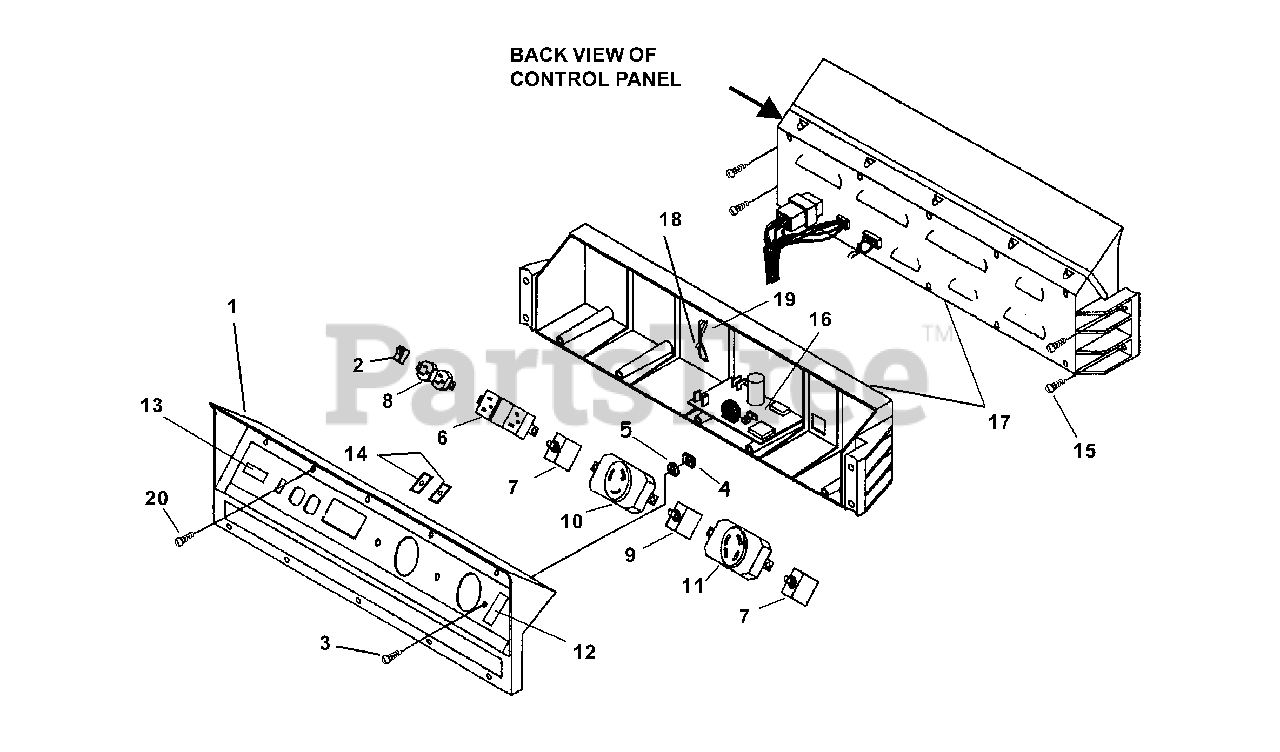

LRX 5600 (UT-03822) - Homelite Generator Control Panel Parts Diagram

Generator

Control Panel Parts Diagram

  • Title

1

Homelite UP03528

Control Panel
(Superseded to A07101A)

$

$

Not available

2

Homelite UP03438

Switch
(Superseded to 985703001)

$

$

Not available

3

Homelite UP03389

Screw-Pan Hd. (8-32 X 7/8")

Note: Torque Specs 12-14 In/Lbs; 1.4-1.6 Nm

$

$

Not available

4

Homelite UP03393

Nut-Hex
(Superseded to 81009)

$

$

Not available

5

Homelite UP03410

Washer-Lock

$

$

Not available

6

Homelite UP03110

Receptacle (GFCI)

$

$

Currently unavailable

7

Homelite UP03489

Circuit Breaker (20 amp)
(Superseded to 09183)

$

$

Not available

8

Homelite UP03498

Receptacle-Duplex
(Superseded to 51373)

$

$

Not available

9

Homelite UP03469

Circuit Breaker (30 amp)

$

$

Currently unavailable

10

Homelite UP03477

Receptacle-Locking (120V)

$

$

Currently unavailable

11

Homelite UP03478

Receptacle-Locking (240V)
(Superseded to 46508)

$

$

Not available

12

Homelite UP04800

Volt Meter

$

$

Not available

13

Homelite UP04799

Hour Meter

$

$

Not available

14

Homelite UP03501

Rubber Bumper
(Superseded to 98792)

$

$

Not available

15

Homelite UP03420

Screw-Torx Hd. (10-24 X 1/2")
(Superseded to 96620)

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$4.99

$

Usually ships in 3-7 days

0

16

Homelite UP00087

Control Board

$

$

Not available

17

Homelite UP03466

Control Panel-Back

$

$

Not available

18

Homelite UP03468

Clip, Tie

$

$

Not available

19

Homelite UP03454

Tie, Cable
(Superseded to R44302)

$

$

Not available

20

Homelite UP03405

Screw, Plastite (8-16 X 3/4")
(Superseded to 82536)

Note: Torque Specs 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available
