LRX 4500 (UT-03820) - Homelite Generator Crankshaft - Piston Parts Diagram

Generator

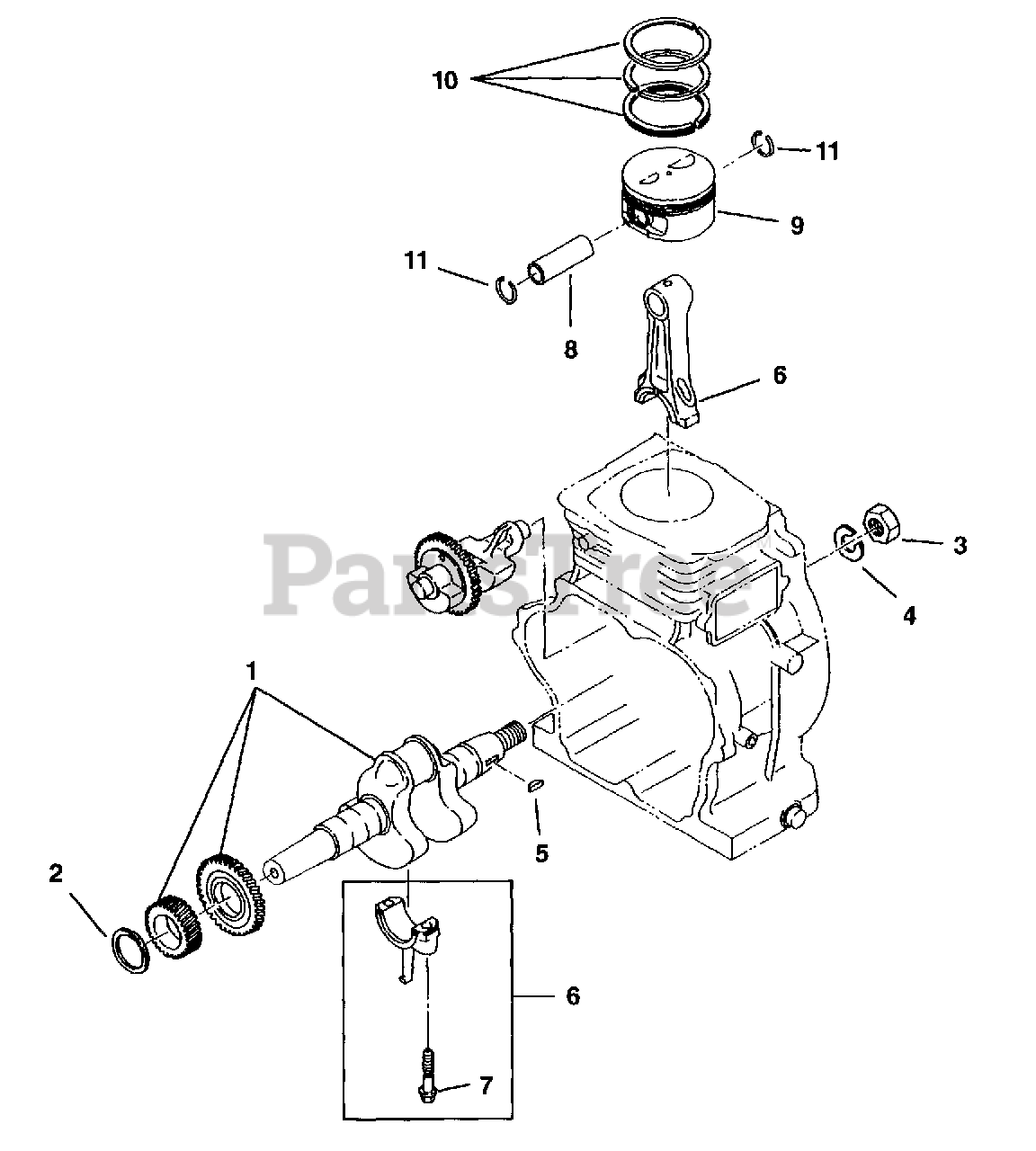

Crankshaft - Piston Parts Diagram

  • Title
1

Homelite UP04386

Crankshaft

$

$

Not available

2

Homelite UP03246

Spacer (.6)

$

$

Not available

Homelite UP03247

Spacer (.8)

$

$

Not available

Homelite UP03248

Spacer (1.0)

$

$

Not available

3

Homelite UP04390

Nut

Note: (Torque to 434 - 470 in/lbs [49.0 - 53.1 Nm])

$

$

Not available

4

Homelite UP03250

Spring washer

$

$

Not available

5

Homelite UP03251

Woodruff key

$

$

Not available

6

Homelite UP04392

Connecting rod

$

$

Not available

7

Homelite UP04393

Connecting rod bolt M8 x 46

Note: (Torque to 122 - 145 in/lbs [13.8 - 16.4 Nm])

$

$

Not available

8

Homelite UP04394

Piston pin

$

$

Not available

9

Homelite UP03260

Piston (std)

$

$

Not available

Homelite UP03261

Piston (.25)

$

$

Not available

Homelite UP03262

Piston (.5)

$

$

Not available

10

Homelite UP04398

Piston ring set (std)

$

$

Currently unavailable

Homelite UP04399

Piston ring set (.25)

$

$

Currently unavailable

Homelite UP04400

Piston ring set (.5)

$

$

Currently unavailable

$

$

Not available
