LRX 4500 (UT-03820) - Homelite Generator Carburetor Parts Diagram

Generator

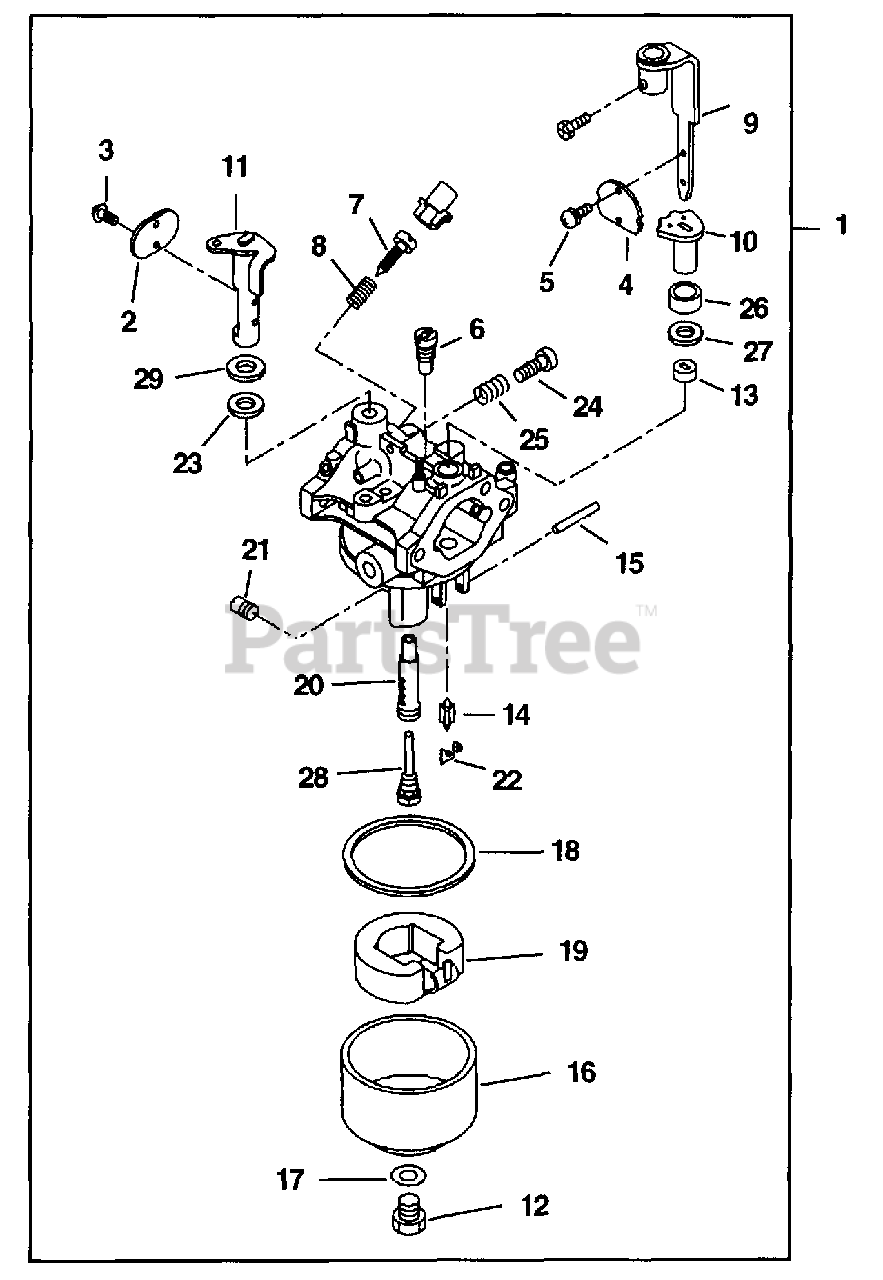

Carburetor Parts Diagram

  • Title

1

Homelite UP04450

Carburetor

$

$

Not available

2

Homelite UP04451

Throttle valve

$

$

Not available

3

Homelite UP03314

Screw

$

$

Not available

4

Homelite UP04453

Choke valve

$

$

Not available

5

Homelite UP03316

Panhead screw

$

$

Not available

6

Homelite UP04455

Pilot jet

$

$

Not available

7

Homelite UP03944

Adjuster

$

$

Currently unavailable

8

Homelite UP04456

Spring

$

$

Not available

9

Homelite UP04457

Choke lever

$

$

Not available

10

Homelite UP03320

Ring

$

$

Not available

11

Homelite UP04459

Throttle shaft

$

$

Not available

12

Homelite UP04460

Bolt

Note: (Torque to 49 in/lbs [6.5 Nm])

$

$

Not available

13

Homelite UP03323

Ring

$

$

Not available

14

Homelite UP04462

Needle valve

$

$

Not available

15

Homelite UP03325

Float pin

$

$

Not available

16

Homelite UP03326

Float chamber body

$

$

Not available

17

Homelite UP03327

Insert washer

$

$

Not available

18

Homelite UP03328

Chamber packing

$

$

Not available

19

Homelite UP03329

Float

$

$

Not available

20

Homelite UP04468

Main nozzle

$

$

Not available

21

Homelite UP04469

Main jet

$

$

Currently unavailable

22

Homelite UP03332

Clip

$

$

Not available

23

Homelite UP03333

Seal

$

$

Not available

24

Homelite UP04044

Adjusting screw

$

$

Not available

25

Homelite UP03338

Spring

$

$

Not available

26

Homelite UP03340

Cap

$

$

Not available

27

Homelite UP03337

Seal

$

$

Not available

28

Homelite UP04474

Guide holder

$

$

Not available

29

Homelite UP03335

Packing

$

$

Not available
