LRX 3000 (UT-03819) - Homelite Generator Frame - Fuel Tank Parts Diagram

Generator

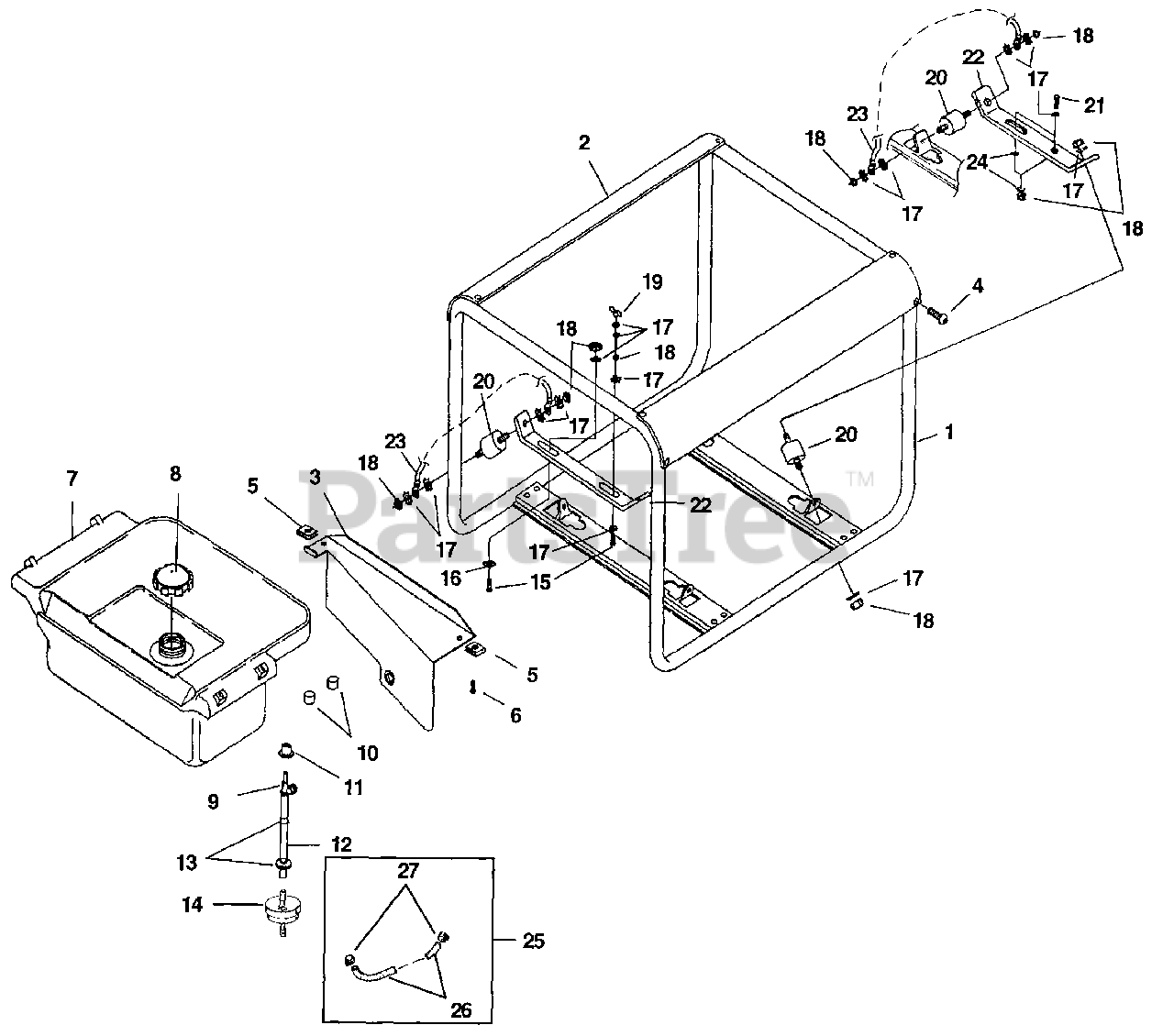

Frame - Fuel Tank Parts Diagram

  • Title

1

Homelite UP03509

Roll Cage

$

$

Not available

2

Homelite UP03448

Brace - Tank Support

$

$

Not available

3

Homelite 064141

Shield - Fuel Tank

$

$

Currently unavailable

4

Homelite 96620

Screw - Torx (10-24 X 1/2")

Note: (Torque Specs 25 - 35 In/Lbs [2.8 - 4.0 Nm])

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 81227

Nut - Speed

$

$

Not available

6

Homelite 80577

Screw - Pan Hd. (8-32 X 3/8")
(Superseded to UP03389)

Note: (Torque Specs 8 - 12 In/Lbs [.9 - 1.4 Nm])

$

$

Not available

7

Homelite UP03439

Fuel Tank (5 Gal.)
(Superseded to A06984A)

$

$

Not available

8

Homelite 04864

Cap - Fuel (2 1/4" Dia.)

$

$

Not available

9

Homelite 06642

Valve - Fuel
(Superseded to UP03464)

$

$

Not available

10

Homelite 06644

Pad - Fuel Tank

$

$

Not available

11

Homelite 47222

Bushing

$

$

Not available

12

Homelite 4958608

Hose - Fuel (8")
(Superseded to UP03486)

$

$

Not available

13

Homelite 49587

Clip - Hose

$

$

Not available

14

Homelite UP03697

Fuel Filter

$

$

Currently unavailable

15

Homelite 80088

Screw - Hex Hd. (5/16-18 X 1 1/4")

Note: (Torque Specs 145 - 155 In/Lbs [16.4 - 17.5 Nm])

$

$

Not available

16

Homelite 84046

Washer - Flat

$

$

Not available

17

Homelite 83081

Washer - Lock (int.)

$

$

Not available

18

Homelite 81162

Nut - Hex (5/16-18)

$

$

Not available

19

Homelite 81015

Nut - Wing (5/16-18)

$

$

Not available

20

Homelite PS49367

Isolator
(Superseded to UP03483)

$

$

Not available

21

Homelite 80083

Screw - Hex Hd. (5/16-18 X 3/4")

Note: (Torque Specs 145 - 155 In/Lbs [16.4 - 17.5 Nm])

$

$

Not available

22

Homelite 064121

Support - Eng/Gen

$

$

Not available

23

Homelite A49399

Ground Strap

$

$

Currently unavailable

24

Homelite 83033

Washer, Lock -Int -Ext.
(Superseded to 83081)

$

$

Not available

25

Homelite UP04014

Fuel pipe

Note: (Incl. items 26 & 27)

$

$

Not available

26

Homelite UP04015

Rubber pipe

$

$

Currently unavailable

27

Homelite UP04016

Hose clamp

$

$

Not available
