LRX 3000 (UT-03819) - Homelite Generator Crankcase Parts Diagram

Generator

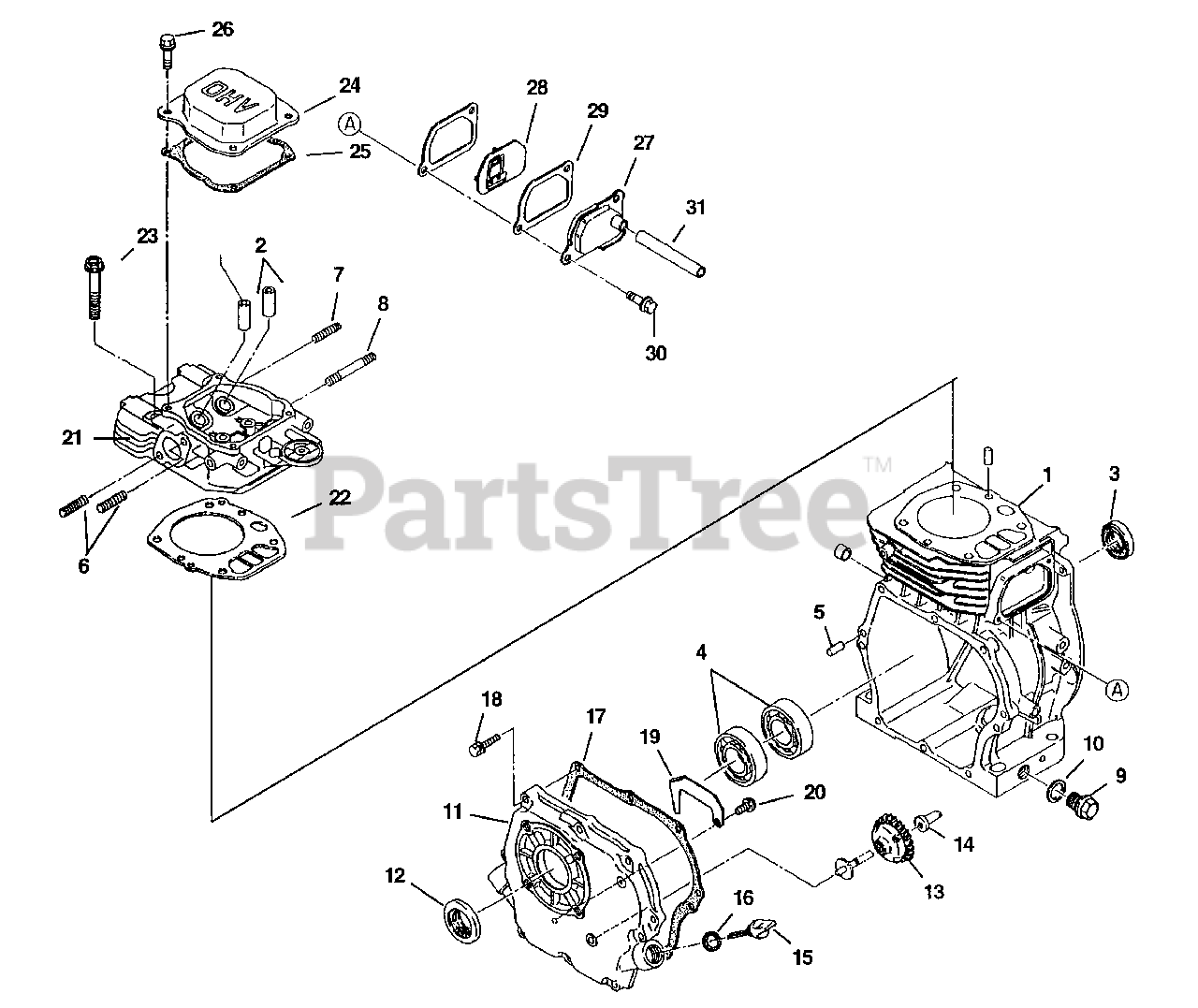

Crankcase Parts Diagram

  • Title

1

Homelite UP03872

Crankcase

$

$

Not available

2

Homelite UP03875

Valve guide

$

$

Not available

3

Homelite UP03876

Oil seal

$

$

Not available

4

Homelite UP03877

Ball bearing

$

$

Not available

5

Homelite UP03220

Dowel pin

$

$

Not available

6

Homelite UP03221

Stud M8 X 1.25 X 30L

$

$

Not available

7

Homelite UP03878

Stud

$

$

Not available

8

Homelite UP03879

Stud

$

$

Not available

9

Homelite UP03223

Plug

$

$

Not available

10

Homelite UP03224

Gasket

$

$

Not available

11

Homelite UP03931

Main bearing cover

$

$

Not available

12

Homelite UP03881

Oil seal

$

$

Not available

13

Homelite UP03882

Governor gear

$

$

Currently unavailable

14

Homelite UP03229

Governor sleeve

$

$

Not available

15

Homelite UP03230

Oil gauge

$

$

Not available

16

Homelite UP03231

Gasket

$

$

Not available

17

Homelite UP03933

Bearing cover gasket

$

$

Not available

18

Homelite UP03923

Bolt & washer

$

$

Not available

19

Homelite UP03935

Sheltor plate

$

$

Currently unavailable

20

Homelite UP03925

Screw & washer

$

$

Currently unavailable

21

Homelite UP03926

Cylinder head

$

$

Currently unavailable

22

Homelite UP04079

Head gasket

$

$

Not available

23

Homelite UP03928

Flange bolt

Note: (Torque Specs 159 - 188 In/Lbs [18.0 - 21.2 Nm])

$

$

Not available

24

Homelite UP03922

Rocker cover

$

$

Not available

25

Homelite UP03929

Rocker cover gasket

$

$

Not available

26

Homelite UP03242

Flange bolt M6 X 1.0 X 12L

Note: (Torque Specs 72 - 84 In/Lbs [8.0 - 9.5 Nm])

$

$

Not available

27

Homelite UP03932

Breather cover

$

$

Not available

28

Homelite UP03927

Breather plate

$

$

Not available

29

Homelite UP03924

Breather cover gasket

$

$

Not available

30

Homelite UP03300

Flange bolt M6 X 1.0 X 14L

Note: (Torque Specs 22 - 36 In/Lbs [2.5 - 4.1 Nm])

$

$

Not available

31

Homelite UP03241

Rubber pipe

$

$

Not available

Homelite UP03934

Gasket set

$

$

Currently unavailable
