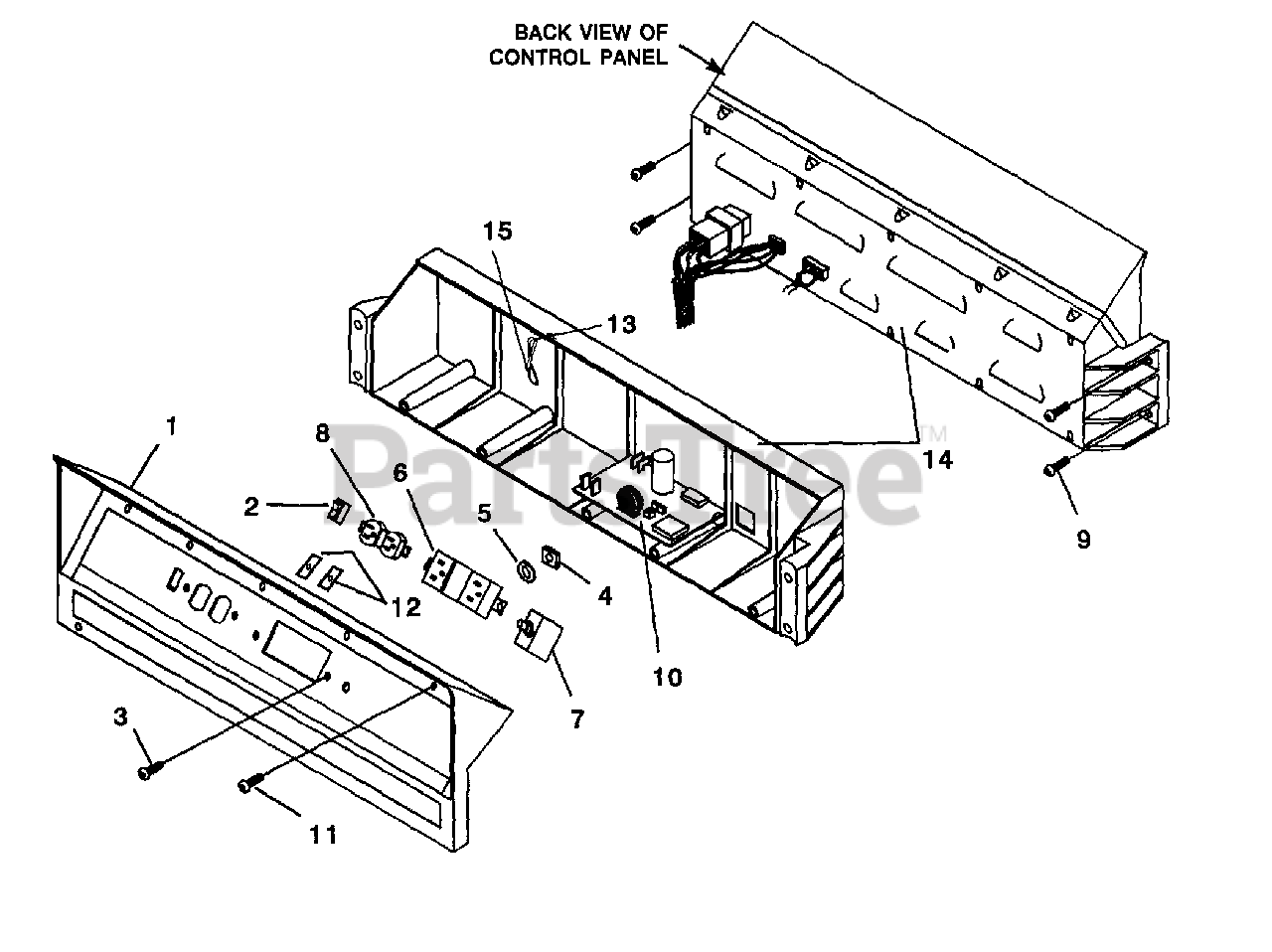

LRX 3000 (UT-03819) - Homelite Generator Control Panel Parts Diagram

Generator

Control Panel Parts Diagram

  • Title

1

Homelite UP04631

Control Panel

Note: (Incl. items 2 - 8; Also order Decal Kit P/N UP04531.)

$

$

Not available

2

Homelite 02497

Switch
(Superseded to 985703001)

$

$

Not available

3

Homelite 80577

Screw - Pan Hd. (8-32 X 7/8")
(Superseded to UP03389)

Note: (Torque Specs 12 - 14 In/Lbs [1.4 - 1.6 Nm])

$

$

Not available

4

Homelite 81009

Nut - Hex

$

$

Not available

5

Homelite 83022

Washer - Lock
(Superseded to UP03410)

$

$

Not available

6

Homelite UP03110

Receptacle (GFCI)

$

$

Currently unavailable

7

Homelite 09183

Circuit Breaker (20 amp)

$

$

Not available

8

Homelite 51373

Receptacle - Duplex (120 V)

$

$

Not available

9

Homelite 96620

Screw - Torx Hd. (10-24 X 1/2")

Note: (Torque Specs 25 - 35 In/Lbs [2.8 - 4.0 Nm])

$4.99

$

Usually ships in 3-7 days

0

10

Homelite UP00087

Control Board

$

$

Not available

11

Homelite 82536

Screw - Thread Forming (8-16 X 3/4")

Note: (Torque Specs 15 - 20 In/Lbs [1.7 - 2.3 Nm])

$

$

Not available

12

Homelite 98792

Bumper - Rubber

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 04805

Tie - Cable
(Superseded to R44302)

$

$

Not available

14

Homelite 066481

Control Panel - Back
(Superseded to UP03467)

$

$

Not available

15

Homelite 06655

Clip, Tie
(Superseded to UP03468)

$

$

Not available

Homelite UP04531

Decal Kit

$40.99

$

Usually ships in 3-7 days

0
