LRTZ 2401 - RedMax Long Reach Hedge Trimmer (SN: 60100101 & Above) (2007-04) 004 - ENGINE Parts Diagram

Long Reach Hedge Trimmer

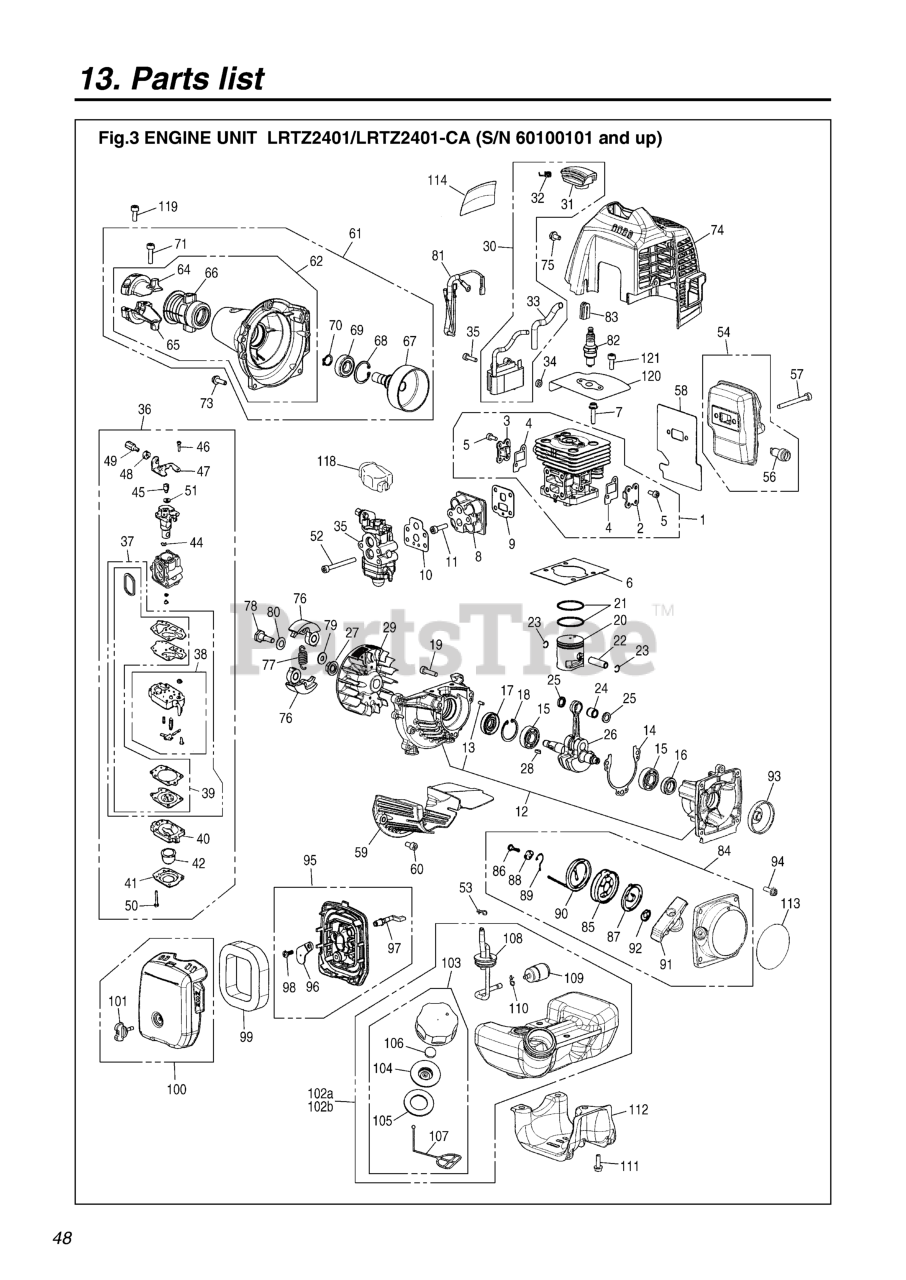

004 - ENGINE Parts Diagram

  • Title

1

RedMax 848F081210

CYLINDER-C
(Superseded to 506653801)

$62.99

$

In Stock, only 1 left!

0

2

RedMax 848F0812C0

COVER, TR-S
(Superseded to 506654101)

$5.99

$

Usually ships in 3-10 days

0

3

RedMax 848F0812D0

COVER, TR-F
(Superseded to 506654201)

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 848F0812E0

GASKET, TR
(Superseded to 506654301)

$4.99

$

In Stock, Qty 8

0

5

RedMax 482016310

BOLT, TORX
(Superseded to 521345601)

$2.49

$

In Stock, Qty 8

0

6

RedMax T155112211

GASKET, BASE
(Superseded to 521751901)

$6.49

$

In Stock, only 4 left!

0

7

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

8

RedMax 848F0814A0

INSULATOR

$10.34

$

Usually ships in 3-10 days

0

9

RedMax 848F0814B1

GASKET
(Superseded to 511350001)

$7.49

$

In Stock, only 4 left!

0

10

RedMax 848F0814C0

GASKET, CARB
(Superseded to 521755001)

$4.99

$

In Stock, only 2 left!

0

11

RedMax T495052001

BOLT, TORX
(Superseded to 506689001)

$6.49

$

In Stock, only 2 left!

0

12

RedMax T155121101

CRANKCASE-C
(Superseded to 512325801)

$13.99

$

Usually ships in 3-10 days

0

13

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax T155121141

GASKET, CASE
(Superseded to 506684801)

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 1 left!

0

16

RedMax 481021210

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

18

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

19

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

20

RedMax 848F0841A2

PISTON
(Superseded to 506655001)

$31.99

$

In Stock, only 1 left!

0

21

RedMax 8488C34101

RING, PISTON
(Superseded to 506618101)

$11.99

$

In Stock, only 4 left!

0

22

RedMax 160041310

PIN, PISTON
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

23

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

24

RedMax T155141410

BEARING
(Superseded to 506685001)

$10.99

$

Usually ships in 3-10 days

0

25

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

26

RedMax 848F084201

CRANKSHAFT-C
(Superseded to 528058401)

$85.99

$

Usually ships in 3-10 days

0

27

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 848F0A71A0

ROTOR
(Superseded to 511352201)

$34.99

$

Usually ships in 3-10 days

0

30

RedMax 848F0G7120

COIL ASSY
(Superseded to 506656101)

$68.99

$

In Stock, only 1 left!

0

31

RedMax 481072111

CAP (RPLS 4810-72110)
(Superseded to 521610001)

$9.99

$

In Stock, only 2 left!

0

32

RedMax 848F0871G0

SPRING
(Superseded to 506655201)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 8488MX0700

TUBE
(Superseded to 506618201)

$3.49

$

In Stock, only 1 left!

0

34

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

36

RedMax 848F088100

CARBURETOR-A (BCZ2401S)
(Superseded to 511351601)

$

$

Not available

37

RedMax 848F600630

REBUILD KIT
(Superseded to 506657901)

$100.99

$

In Stock, Qty 20+

0

38

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

39

RedMax 481006021

KIT, GASKET (REPLACES-06020)
(Superseded to 506615501)

$74.99

$

Usually ships in 3-10 days

0

40

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

41

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

42

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

44

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

48

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

50

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

51

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 482015310

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

53

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

54

RedMax 848F081510

MUFFLER-A
(Superseded to 521613501)

$34.99

$

In Stock, only 2 left!

0

56

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 1 left!

0

57

RedMax 482015310

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

58

RedMax 848F0815C1

GASKET, MUFFLER
(Superseded to 511350401)

$6.99

$

In Stock, only 2 left!

0

59

RedMax 848F0015D1

PLATE
(Superseded to 506629601)

$5.99

$

In Stock, only 1 left!

0

60

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

61

RedMax 848F005301

HOUSING ASSY (RPLS T1551-31000
(Superseded to 528053101)

$68.99

$

In Stock, only 1 left!

0

62

RedMax T155131100

HOUSING COMP (RPLS. -31110)
(Superseded to 512326201)

$

$

Not available

64

RedMax T170031212

BRACKET (A) (RPLS -31211)
(Superseded to 521768201)

$8.99

$

Usually ships in 3-10 days

0

65

RedMax T170031221

BRACKET (B)
(Superseded to 521768301)

$9.99

$

In Stock, only 1 left!

0

66

RedMax T170031232

CUSHION (RPLS -31231)
(Superseded to 512360501)

$24.99

$

Usually ships in 3-10 days

0

67

RedMax 848F3051A1

DRUM (REPLACES 4810-31122)
(Superseded to 521609801)

$47.99

$

In Stock, only 1 left!

0

68

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

69

RedMax T170131150

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

70

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

71

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

73

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

74

RedMax 848F0831A1

COVER, ENGINE
(Superseded to 511350501)

$10.99

$

In Stock, only 4 left!

0

75

RedMax 8488151002

BOLT (RPLS. T4950-51011)
(Superseded to 521515901)

$4.99

$

Usually ships in 3-10 days

0

76

RedMax T155151111

SHOE
(Superseded to 512328401)

$

$

Not available

77

RedMax 482051220

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

78

RedMax 114051250

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

79

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$4.99

$

Usually ships in 3-10 days

0

80

RedMax 114051242

WASHER (RPLS -51241)
(Superseded to 513189501)

$4.99

$

Usually ships in 3-10 days

0

81

RedMax T155173200

CORD COMP.
(Superseded to 512328601)

$10.99

$

In Stock, only 1 left!

0

82

RedMax 369991867

SPARK PLUG
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

83

RedMax 481072120

GROMMET
(Superseded to 521342501)

$3.99

$

Usually ships in 3-10 days

0

84

RedMax T155175100

RECOIL-A
(Superseded to 512328801)

$66.99

$

Usually ships in 3-10 days

0

85

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, only 4 left!

0

86

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

87

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$18.99

$

In Stock, only 4 left!

0

88

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

89

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

90

RedMax 481075160

ROPE (REPLACES 4500-75160)
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

91

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

92

RedMax 481075170

PLATE, STOPPER
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

93

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

94

RedMax 482032120

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

95

RedMax 848F008310

BODY ASSY (RPLS T1551-82100)
(Superseded to 521605001)

$14.99

$

Usually ships in 3-10 days

0

96

RedMax T151282130

PLATE, CHOKE
(Superseded to 521750101)

$3.49

$

Usually ships in 3-10 days

0

97

RedMax T160082140

LEVER
(Superseded to 521760501)

$4.99

$

In Stock, only 4 left!

0

98

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

99

RedMax T155182170

ELEMENT
(Superseded to 512329601)

$7.49

$

Usually ships in 3-10 days

0

100

RedMax 848F628320

COVER-A (RPLS T1551-82200)
(Superseded to 521617701)

$

$

Not available

101

RedMax T110882220

KNOB
(Superseded to 506673901)

$3.49

$

In Stock, Qty 6

0

102A

RedMax 848F008500

TANK ASSY
(Superseded to 581493301)

$87.99

$

In Stock, only 1 left!

0

103

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 2 left!

0

104

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

105

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

107

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

108

RedMax T155185300

PIPE-C

$

$

Not available

109

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

110

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

111

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

112

RedMax T155131910

GUARD, TANK
(Superseded to 512326501)

$

$

Not available

113

RedMax T155175410

LABEL, RECOIL
(Superseded to 521754001)

$

$

Not available

114

RedMax T155131130

LABEL, COVER

$

$

Not available

118

RedMax 450081910

COVER
(Superseded to 506744201)

$9.99

$

In Stock, only 1 left!

0

119

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

120

RedMax 848F0812G0

PLATE
(Superseded to 511349501)

$6.49

$

Usually ships in 3-10 days

0

121

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0
