LRT 2300 - RedMax Long Reach Hedge Trimmer (1997-04) 018 - TRIMMER GROUP Parts Diagram

Long Reach Hedge Trimmer

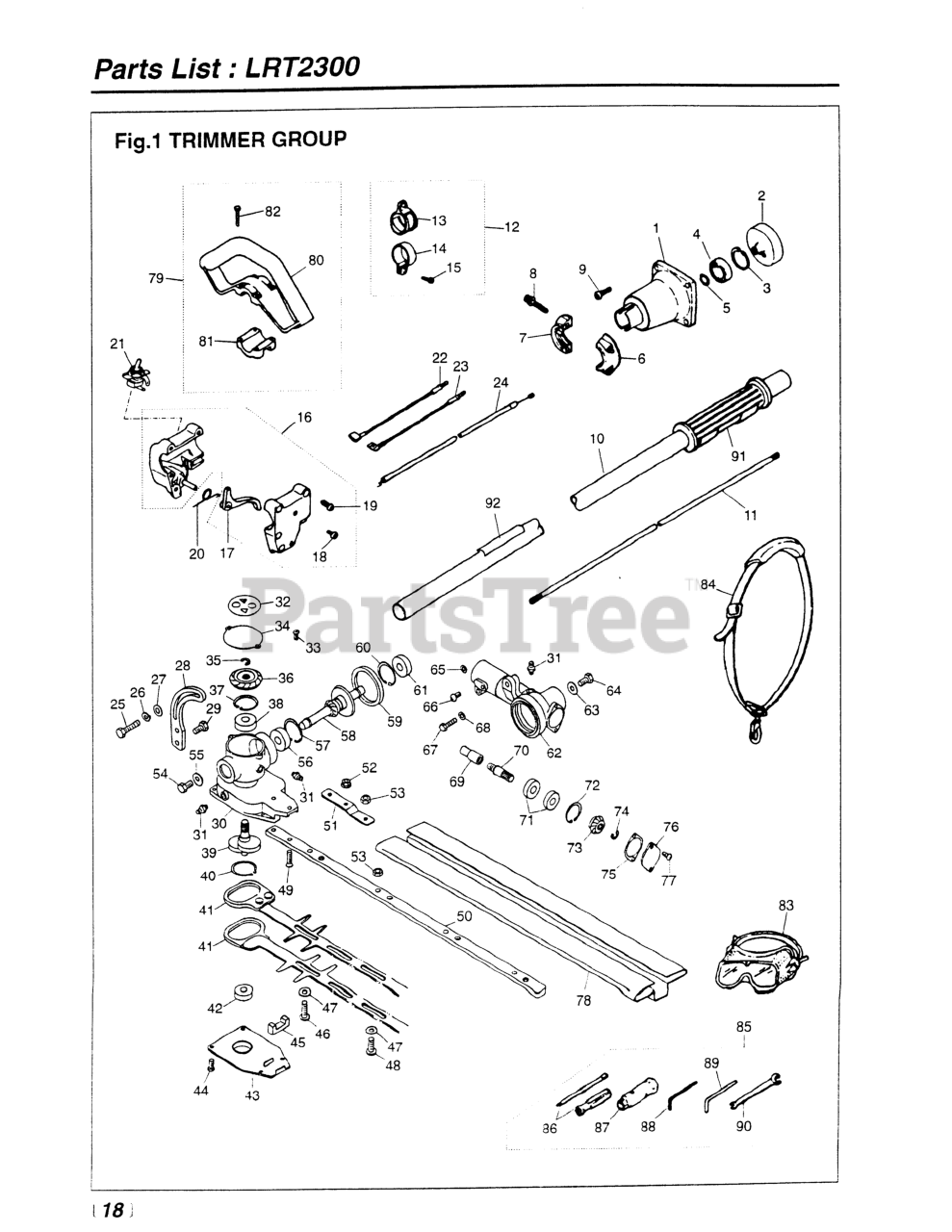

018 - TRIMMER GROUP Parts Diagram

  • Title
1

RedMax 646011900

6460-11101
(Superseded to 574016801)

$

$

Not available

2

RedMax 646012110

6460-12111
(Superseded to 515636801)

$43.99

$

Usually ships in 3-10 days

0

3

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

4

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

5

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

6

RedMax 646011130

CLAMP, LEFT
(Superseded to 521471401)

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 646011140

CLAMP, RIGHT
(Superseded to 521471501)

$6.49

$

Usually ships in 3-10 days

0

8

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

9

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

10

RedMax 180771BC

180931
(Superseded to 574048801)

$

$

Not available

11

RedMax 352012212

3520-12213

$

$

Not available

12

RedMax 646017100

HANGER COMPLETE
(Superseded to 574087101)

$

$

Not available

13

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

14

RedMax 646017120

CLAMP
(Superseded to 515640201)

$

$

Not available

15

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

16

RedMax 181124

181689

$

$

Not available

17

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

18

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

19

RedMax 180974

SCREW
(Superseded to 574048901)

$1.49

$

Usually ships in 3-10 days

0

20

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

21

RedMax 180252

SWITCH, STOP
(Superseded to 574047101)

$

$

Not available

22

RedMax 180768

CORD, RED (LEAD WIRE)
(Superseded to 574048001)

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 180769

CORD, BLACK (LEAD WIRE)
(Superseded to 532180769)

$40.99

$

In Stock, only 1 left!

0

24

CABLE COMP

$

$

Not available

25

RedMax 687213110

6782-13110

$

$

Not available

26

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

27

RedMax 659813130

WASHER, 6 X 6 X 2.0
(Superseded to 521493501)

$3.49

$

Usually ships in 3-10 days

0

28

RedMax 678213140

ADJUSTER, ANGLE (USE-13141)
(Superseded to 521501501)

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 678213210

6782-13200
(Superseded to 521501601)

$148.99

$

In Stock, only 1 left!

0

31

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

32

$2.78

$

Usually ships in 3-10 days

0

33

RedMax 026310408

SCREW, M4 X 8
(Superseded to 516108701)

$

$

Not available

34

$2.88

$

Usually ships in 3-10 days

0

35

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

36

RedMax 678213340

GEAR, BEVEL
(Superseded to 515697301)

$43.99

$

Usually ships in 3-10 days

0

37

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

38

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

39

RedMax 678213370

CRANKSHAFT
(Superseded to 515697401)

$102.99

$

In Stock, only 1 left!

0

40

RedMax 0406402815

RING, SNAP, M28 X 1.5
(Superseded to 516124801)

$3.49

$

In Stock, Qty 6

0

41

RedMax 678213410

6782-13411
(Superseded to 515697701)

$91.99

$

Usually ships in 3-10 days

0

42

RedMax 678213430

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

43

RedMax 678213440

6782-06010
(Superseded to 521501201)

$30.99

$

Usually ships in 3-10 days

0

44

RedMax 022510408

BOLT, M4 X 8

$0.17

$

Usually ships in 3-10 days

0

45

RedMax 678213460

FELT
(Superseded to 521502901)

$4.99

$

In Stock, Qty 5

0

46

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

47

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

48

RedMax 659813510

SCREW
(Superseded to 515685201)

$5.99

$

In Stock, Qty 5

0

49

RedMax 659813530

SCREW, M5 X 20
(Superseded to 515685401)

$4.99

$

In Stock, only 2 left!

0

50

RedMax 678213540

PLATE, GUIDE
(Superseded to 515698401)

$26.99

$

Usually ships in 3-10 days

0

51

RedMax 678213550

PLATE (RPLS 6780- )
(Superseded to 515698501)

$5.99

$

In Stock, Qty 5

0

52

RedMax 678214470

NUT, M5
(Superseded to 505182601)

$4.99

$

Usually ships in 3-10 days

0

53

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

54

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

55

RedMax 678213650

WASHER, 6X15X2.0
(Superseded to 515698601)

$4.99

$

In Stock, only 2 left!

0

56

RedMax 659813430

BEARING
(Superseded to 515684901)

$17.99

$

Usually ships in 3-10 days

0

57

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

58

RedMax 678213610

T4008-06010
(Superseded to 521830201)

$136.99

$

Usually ships in 3-10 days

0

59

RedMax 659813620

O-RING
(Superseded to 515685801)

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

61

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

62

RedMax 678213710

CASING
(Superseded to 521503501)

$121.99

$

Usually ships in 3-10 days

0

63

RedMax 659813130

WASHER, 6 X 6 X 2.0
(Superseded to 521493501)

$3.49

$

Usually ships in 3-10 days

0

64

RedMax 022510612

01010-80612
(Superseded to 516066601)

$3.49

$

Usually ships in 3-10 days

0

65

RedMax 678213720

WASHER
(Superseded to 515698801)

$2.49

$

In Stock, only 4 left!

0

66

RedMax 026300510

SCREW, M5 x 10

$0.13

$

Usually ships in 3-10 days

0

67

RedMax 022510512

BOLT, M5 x 25

$0.17

$

Usually ships in 3-10 days

0

68

RedMax 029120510

WASHER, M5 x 10

$0.07

$

Usually ships in 3-10 days

0

69

RedMax 678213810

JOINT (REPLACES T3078-13810)
(Superseded to 515698901)

$20.99

$

In Stock, only 1 left!

0

70

RedMax 659813820

SHAFT, GEAR
(Superseded to 515686101)

$56.99

$

In Stock, only 1 left!

0

71

RedMax 678213830

BEARING
(Superseded to 515699001)

$26.99

$

Usually ships in 3-10 days

0

72

RedMax 0406502212

RING, SNAP, M22 x 1.2

$0.43

$

Usually ships in 3-10 days

0

73

RedMax 678213850

GEAR, BEVEL
(Superseded to 515699101)

$28.99

$

In Stock, only 1 left!

0

74

RedMax 659813330

RING, SNAP
(Superseded to 515684601)

$4.99

$

In Stock, only 1 left!

0

75

RedMax 659813860

PACKING
(Superseded to 515686401)

$7.99

$

Usually ships in 3-10 days

0

76

RedMax 659813870

COVER, STOPPER KIT
(Superseded to 521493201)

$

$

Not available

77

RedMax 026310408

SCREW, M4 X 8
(Superseded to 516108701)

$

$

Not available

78

RedMax 678213910

COVER, BLADE
(Superseded to 515699201)

$6.99

$

In Stock, only 2 left!

0

79

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$20.99

$

Usually ships in 3-10 days

0

80

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

81

RedMax 646214320

CLAMP
(Superseded to 521473201)

$6.49

$

Usually ships in 3-10 days

0

82

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

83

RedMax 180773

GOGGLE
(Superseded to 532180773)

$47.99

$

Usually ships in 3-10 days

0

84

RedMax 160197

SHOULDER STRAP ASSY
(Superseded to 574046801)

$

$

Not available

85

RedMax 355091000

TOOL SET

$15.97

$

Usually ships in 3-10 days

0

86

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

87

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

88

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

89

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

90

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

91

RedMax 180770

180866
(Superseded to 574048601)

$

$

Not available

92

DECAL

$

$

Not available
