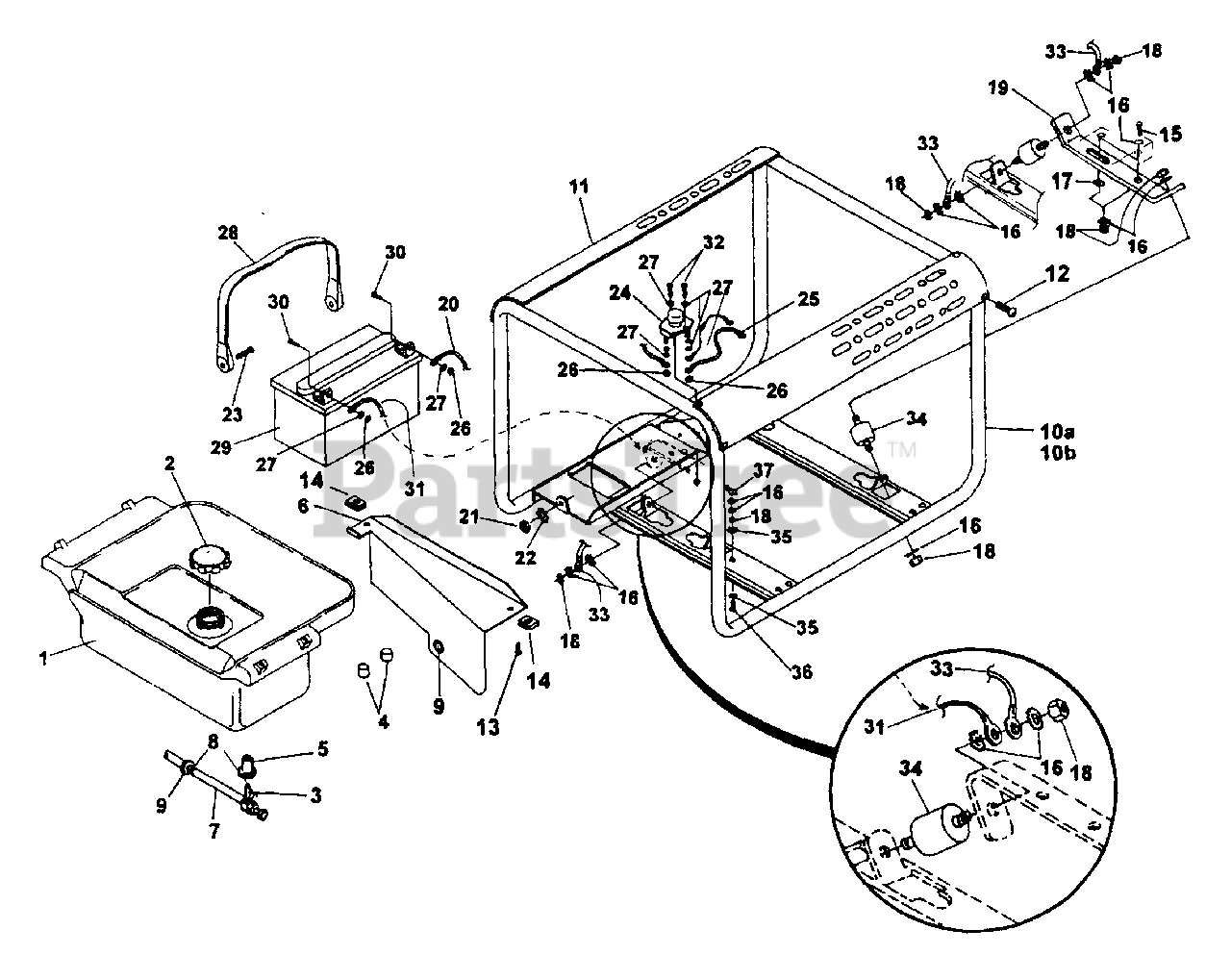

LRIE 5500 CSA (UT-03779) - Homelite Generator Tank & Frame Parts Diagram

Generator

Tank & Frame Parts Diagram

  • Title

1

Homelite A04861

FUEL TANK (5 Gal.)
(Superseded to A04861A)

$

$

Not available

2

Homelite 04864

FUEL CAP (2 1/4" dia.)

$

$

Not available

3

Homelite 06642

VALVE-Fuel
(Superseded to UP03464)

$

$

Not available

4

Homelite 06644

PAD-Fuel Tank

$

$

Not available

5

Homelite 47222

BUSHING

$

$

Not available

6

Homelite 063881

SHIELD-Fuel Tank
(Superseded to UP03461)

$

$

Not available

7

Homelite 4958608

FUEL LINE
(Superseded to UP03486)

$

$

Not available

8

Homelite 49587

CLIP-Hose

$

$

Not available

9

Homelite 04818

BUSHING-Snap In
(Superseded to UP03457)

$

$

Not available

10A

Homelite A06406

ROLL CAGE (LR4400, LR5500, LR4400/CSA, LR5500/CSA)

$

$

Currently unavailable

10B

Homelite A06401

ROLL CAGE (LRE4400, LRE5500, LRE4400/CSA, LRE5500/CSA)

$

$

Not available

11

Homelite 063831

BRACE-Tank Support

$

$

Not available

12

Homelite 96620

SCREW-Torx (10-24 X 1/2")

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 80577

SCREW-Pan Hd. (8-32 X 3/8")
(Superseded to UP03389)

$

$

Not available

14

Homelite 81227

NUT-Hi Speed

$

$

Not available

15

Homelite 80197

SCREW-Hex Hd. (5/16-18 X 2")

$

$

Not available

16

Homelite 83081

WASHER-Lock (int.)

$

$

Not available

17

Homelite 84046

WASHER-Flat

$

$

Not available

18

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

19

Homelite 49265

SUPPORT-Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

20

Homelite A02532

CABLE-Battery (Red, Pos.)
(Superseded to UP03507)

$

$

Not available

21

Homelite 81010

NUT-Hex (10-32)
(Superseded to UP03394)

$

$

Not available

22

Homelite 83046

WASHER-Lock

$

$

Not available

23

Homelite 06665

SCREW-Shoulder (10-32 X 1/4")

$

$

Not available

24

Homelite 49705

SWITCH-Starter
(Superseded to UP03487)

$

$

Not available

Homelite A04799

BATTERY & CABLE KIT
(Superseded to UP03520)

$

$

Not available

25

Homelite 04800

BATTERY CABLE (Red, to Switch)
(Superseded to UP03453)

$

$

Not available

26

Homelite 81242

NUT-Hex (10-32)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 83009

WASHER-Lock

$8.49

$

Usually ships in 3-7 days

0

28

Homelite 048011

STRAP-Battery Hold Down

$

$

Not available

29

Homelite 49833A

BATTERY (12 Volt)
(Superseded to UP03494)

$

$

Not available

30

Homelite 80049

SCREW-Hex Hd. (1/4-20 X 5/8")

$

$

Not available

31

Homelite 04802

BATTERY CABLE (Black, to Ground)
(Superseded to UP03456)

$

$

Not available

32

Homelite 82477

SCREW-Hex Hd. (1/4-20 X 1/2")
(Superseded to UP03402)

$

$

Not available

33

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

34

Homelite 49367

ISOLATOR
(Superseded to UP03483)

$

$

Not available

35

Homelite 83033

WASHER-Lock (ext./int.)
(Superseded to 83081)

$

$

Not available

36

Homelite 80088

SCREW-Hex Hd. (5/16-18 X 1 1/2")

$

$

Not available

37

Homelite 81015

NUT-Wing

$

$

Not available
