LRI 4400 (UT-03787) - Homelite Generator Control Panel Parts Diagram

Generator

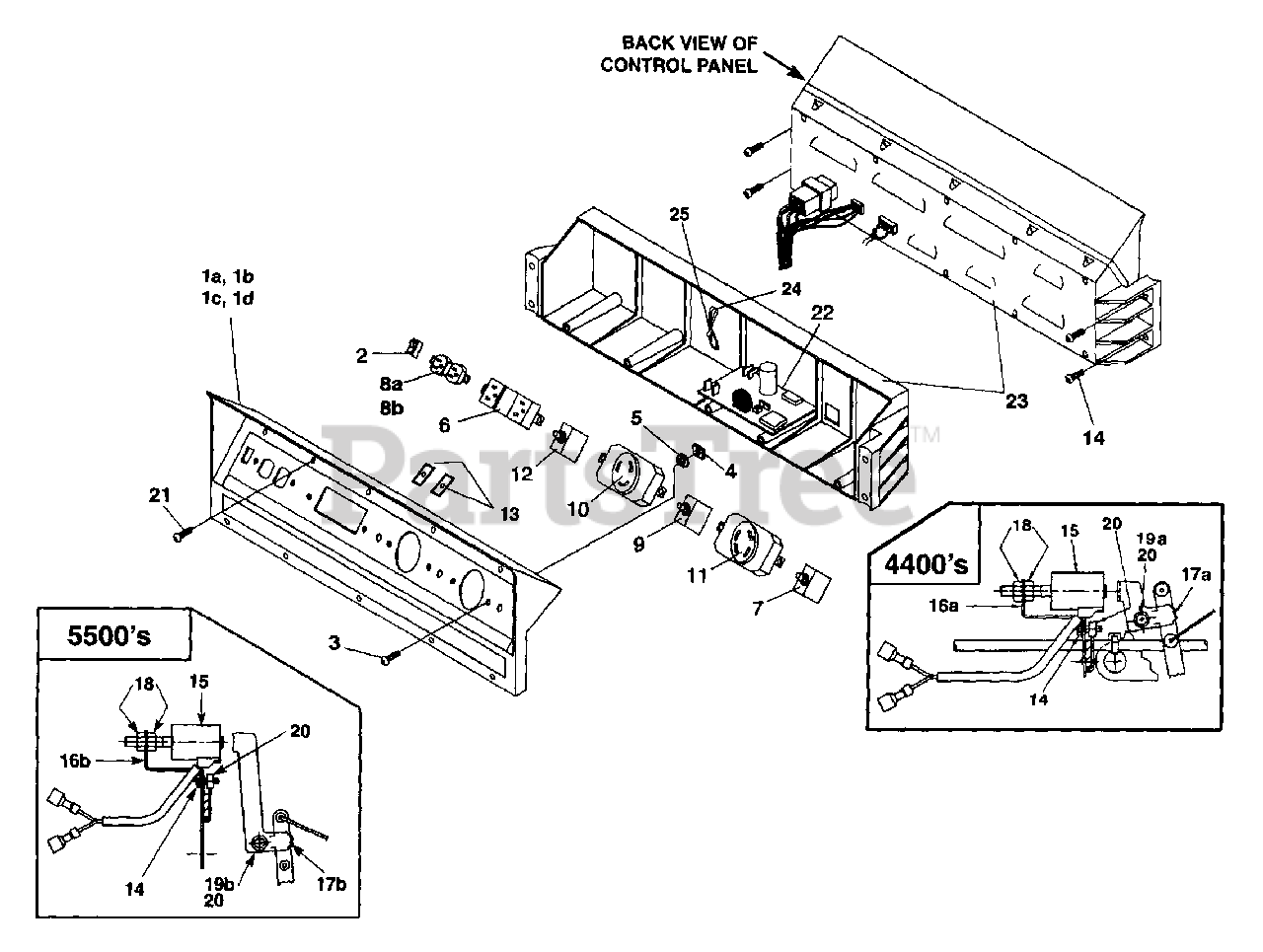

Control Panel Parts Diagram

  • Title
1A

Homelite A07101A

CONTROL PANEL (LRI4400, LRIE4400)

$

$

Not available

1B

Homelite A07067A

CONTROL PANEL (LRI5500, LRIE5500)
(Superseded to UP03528)

$

$

Not available

1C

Homelite A07122

CONTROL PANEL (LRI4400/CSA, LRIE4400/CSA)
(Superseded to UP03528)

$

$

Not available

1D

Homelite A07121

CONTROL PANEL (LRI5500/CSA, LRIE5500/CSA)
(Superseded to UP03528)

$

$

Not available

2

Homelite 02497

SWITCH
(Superseded to 985703001)

$

$

Not available

3

Homelite 80577

SCREW-Pan Hd. (8-32 X 7/8")
(Superseded to UP03389)

$

$

Not available

4

Homelite 81009

NUT-Hex

$

$

Not available

5

Homelite 83022

WASHER-Lock
(Superseded to UP03410)

$

$

Not available

6

Homelite 04058

RECEPTACLE (GFCI)

$

$

Not available

7

Homelite 49831A

CIRCUIT BREAKER (20 amp)
(Superseded to UP03489)

$

$

Not available

8A

Homelite 51373

RECEPTACLE-Duplex (LRI4400, LRIE4400, LRI5500, LRIE5500)

$

$

Not available

8B

Homelite 49803A

RECEPTACLE-Duplex (120 V) (LRI4400/CSA)

$

$

Not available

9

Homelite 06692A

CIRCUIT BREAKER (30 amp)
(Superseded to 49814)

$

$

Not available

10

Homelite 42601

RECEPTACLE-Locking (120V)

$

$

Not available

11

Homelite 46508

RECEPTACLE-Locking (240V)

$

$

Not available

12

Homelite 01649A

CIRCUIT BREAKER (15 amp)
(Superseded to UP06951)

Note: (LRI4400/CSA, LRIE4400/CSA, LRI5500/CSA, LRIE5500/CSA LRIE4400/CSA, LRI5500/CSA, LRIE/5500/CSA)

$

$

Not available

13

Homelite 98792

RUBBER BUMPER

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 96620

SCREW-Torx Hd. (10-24 X 1/2)

$4.99

$

Usually ships in 3-7 days

0

15

Homelite A07062

ELECTROMAGNET
(Superseded to UP05243)

$

$

Not available

16A

Homelite 070781

BRACKET (8HP) (4400's)

$

$

Not available

16B

Homelite 070661

BRACKET (11HP) (5500's)

$

$

Not available

17A

Homelite 070791

PADDLE (8HP) (4400's)

$

$

Not available

17B

Homelite 070651

PADDLE (11HP) (5500's)

$

$

Not available

18

Homelite 810652

NUT-Hex (1/4-28) (4400 & 5500)
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

19A

Homelite 80049

SCREW-Hex Hd. (1/4-20 X 5/8") (4400 & 5500)

$

$

Not available

19B

Homelite 80049

SCREW-Hex Hd. (1/4-20 X 5/8") (4400 & 5500)

$

$

Not available

20

Homelite 81227

SPEED Nut (8-32) (4400 & 5500)

$

$

Not available

21

Homelite 82536

SCREW-Plastite (8-16 X 3/4")

$

$

Not available

22

Homelite A06257

CONTROL BOARD
(Superseded to UP00087)

$

$

Not available

23

Homelite 066461

CONTROL PANEL-Back
(Superseded to UP03466)

$

$

Not available

24

Homelite 46840

TIE, Cable

$

$

Not available

25

Homelite 06655

Clip, Tie
(Superseded to UP03468)

$

$

Not available
