LRH 130 (HA13H36B) - Husqvarna Lawn Tractor (2003-01) STEERING Parts Diagram

Lawn Tractor

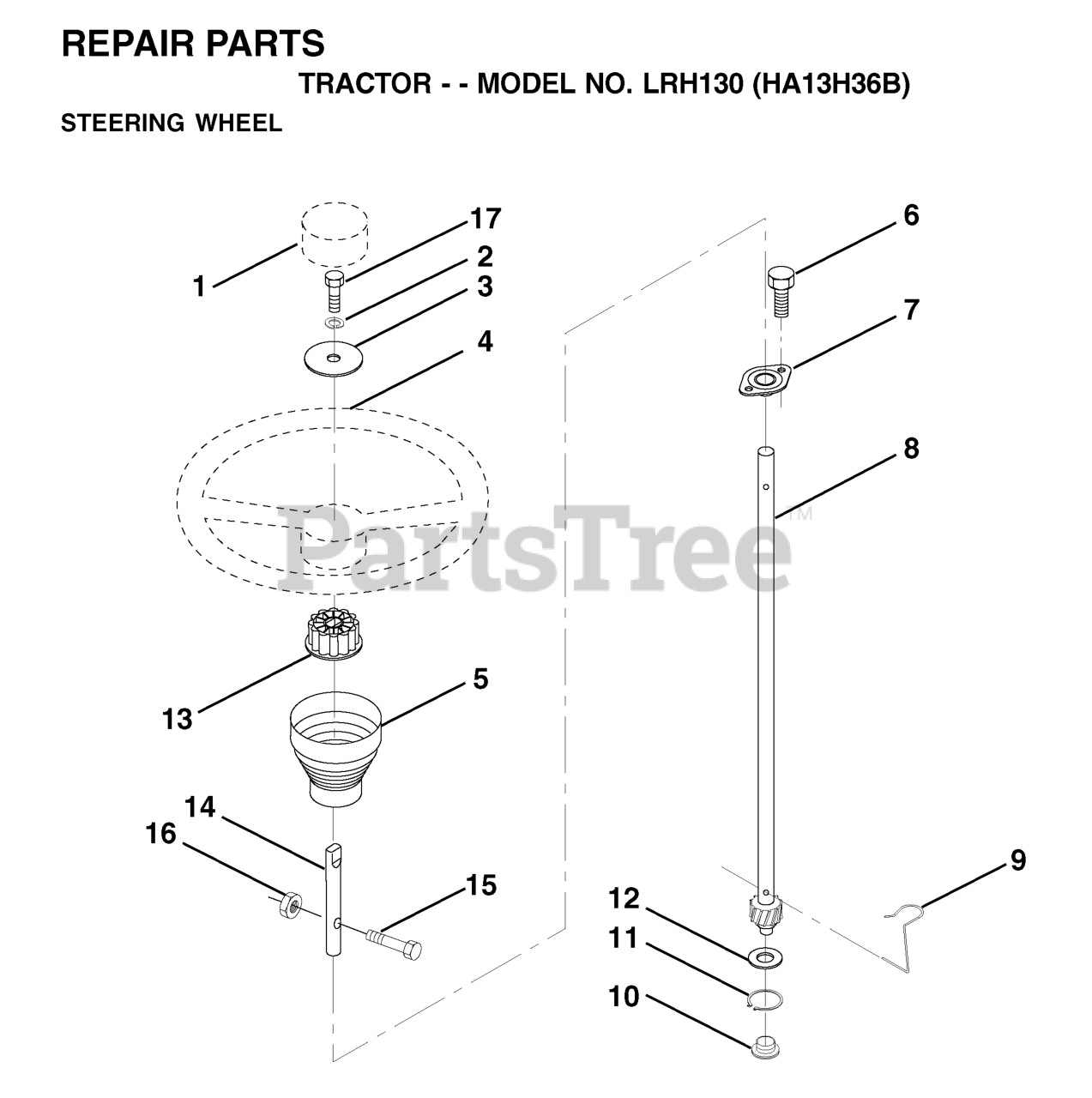

STEERING Parts Diagram

  • Title

17

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

14

Husqvarna 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

6

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532155104

BUSHING
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124210

STEERING CLIP

$

$

Not available

12

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532147391

STEERING SHAFT
(Superseded to 532148966)

$

$

Not available

15

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 812000045

RING

$7.49

$

In Stock, only 4 left!

0

2

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

5

Husqvarna 532127396

STEERING SLEEVE

$

$

Not available

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

1

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

10

Husqvarna 532123438

BUSHING STEER LWR

$6.99

$

In Stock, only 2 left!

0
