LRH 130 (HA13H36A) - Husqvarna Lawn Tractor (2003-01) DRIVE Parts Diagram

Lawn Tractor

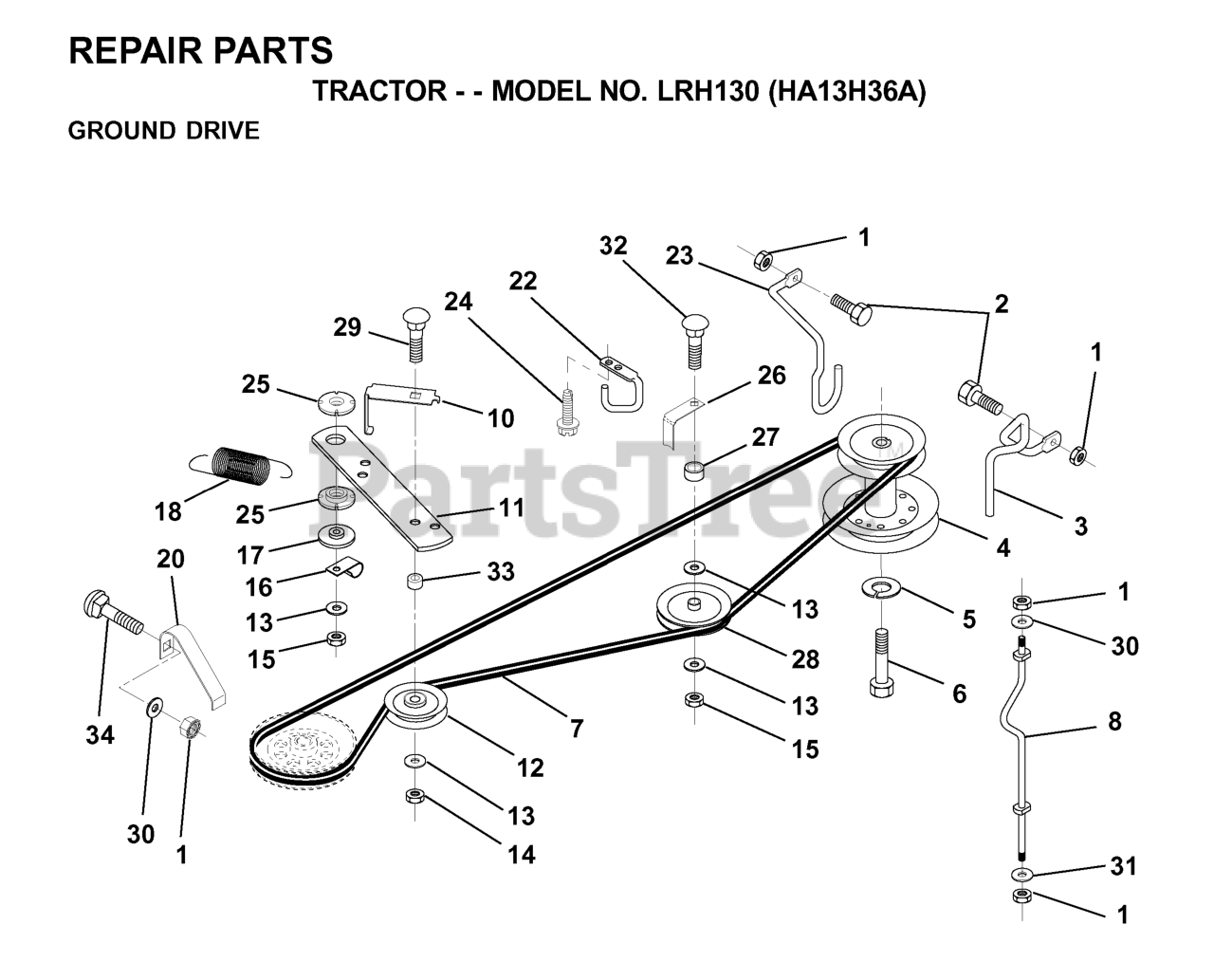

DRIVE Parts Diagram

  • Title
20

Husqvarna 532140909

KEEPER, BELT

$

$

Not available

15

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532131459

SPRING.EXTENSION

$

$

Not available

26

Husqvarna 532140913

KEEPER, BELT

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140916

KEEPER-MOWER DRIVE LH

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 871170744

Bolt, Hex Hd. 7/16-20 UNF Grade 5

$2.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532150935

BUSHING NYLON COLLERED

$

$

Not available

3

Husqvarna 532141297

BELT GUIDE

$

$

Not available

30

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

33

Husqvarna 532000160

SPACER NLA

$

$

Not available

28

Husqvarna 532139123

PULLEY.IDLER.V.

$37.99

$

In Stock, only 1 left!

0

4

Husqvarna 532138029

PULLEY.ENGINE.36/38 LR
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

11

Husqvarna 532150926

ARM, GROUND DRIVE CLUTCH

$

$

Not available

17

Husqvarna 532150932

SPACER, RETAINER

$

$

Not available

10

Husqvarna 532140780

KEEPER, BELT

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532140910

V-BELT 77.75

$72.99

$

In Stock, only 1 left!

0

13

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123404

KEEPER,FRA DR BEL

$

$

Not available

14

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

31

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

5

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available
