LRH 130 (HA13H36A) - Husqvarna Lawn Tractor (2003-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

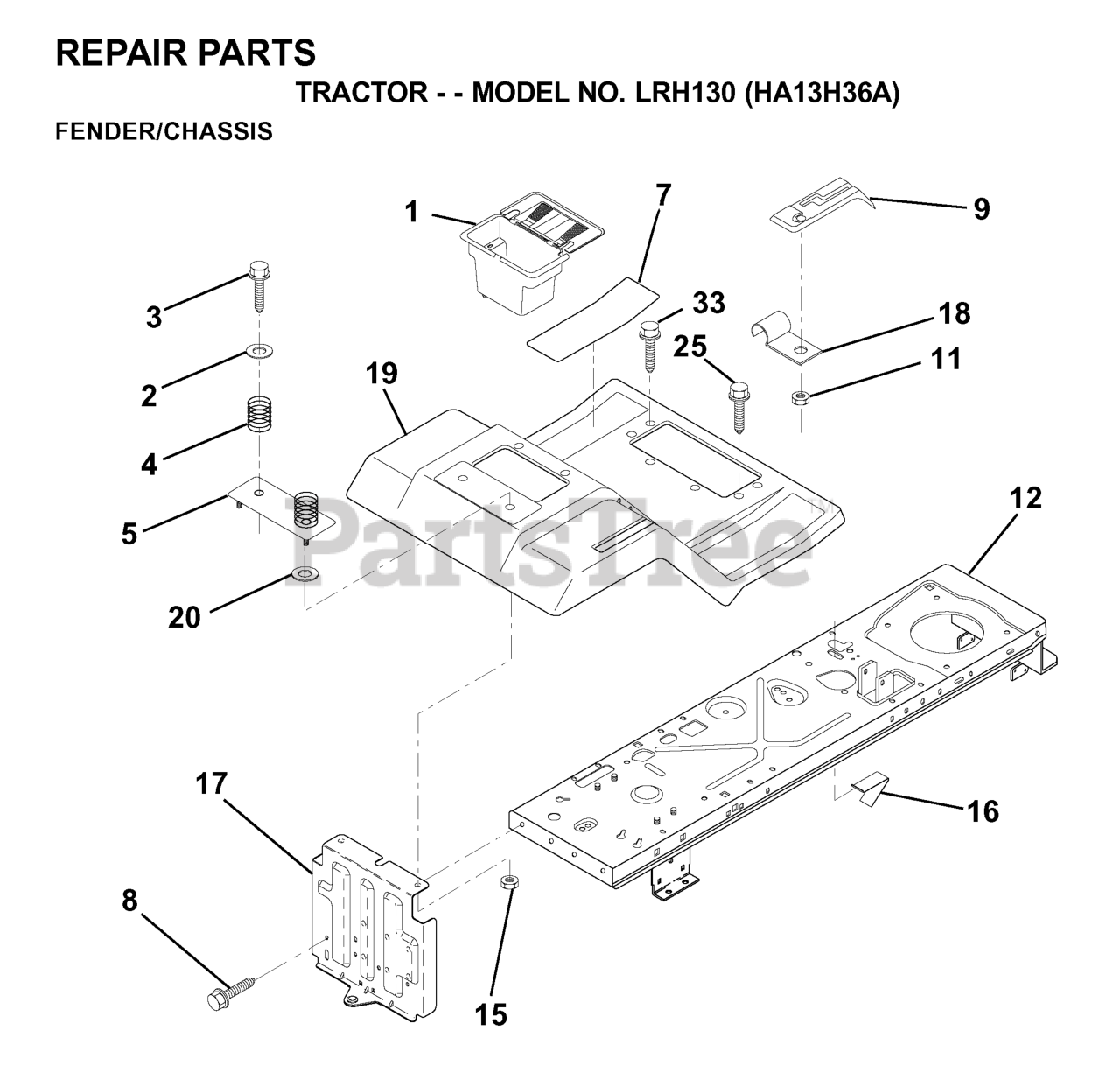

CHASSIS & ENCLOSURES Parts Diagram

  • Title

2

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532145190

FRAME

$

$

Not available

18

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 532140782

DRAWBAR

$

$

Not available

19

Husqvarna 532141393

FENDER/FOOTREST

$

$

Not available

5

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

15

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

20

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

1

Husqvarna 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

33

Husqvarna 817190516

Screw Hex Wsh Thdroll 5/16-18 x 1

$

$

Not available

16

Husqvarna 532141736

SWITCH ACTUATOR
(Superseded to 532146613)

$

$

Not available

9

Husqvarna 532166614

BRACKET

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126700

FOOTREST PAD

$

$

Not available

25

Husqvarna 817060514

Screw Tapping 5/16-18 Unc

$

$

Not available
