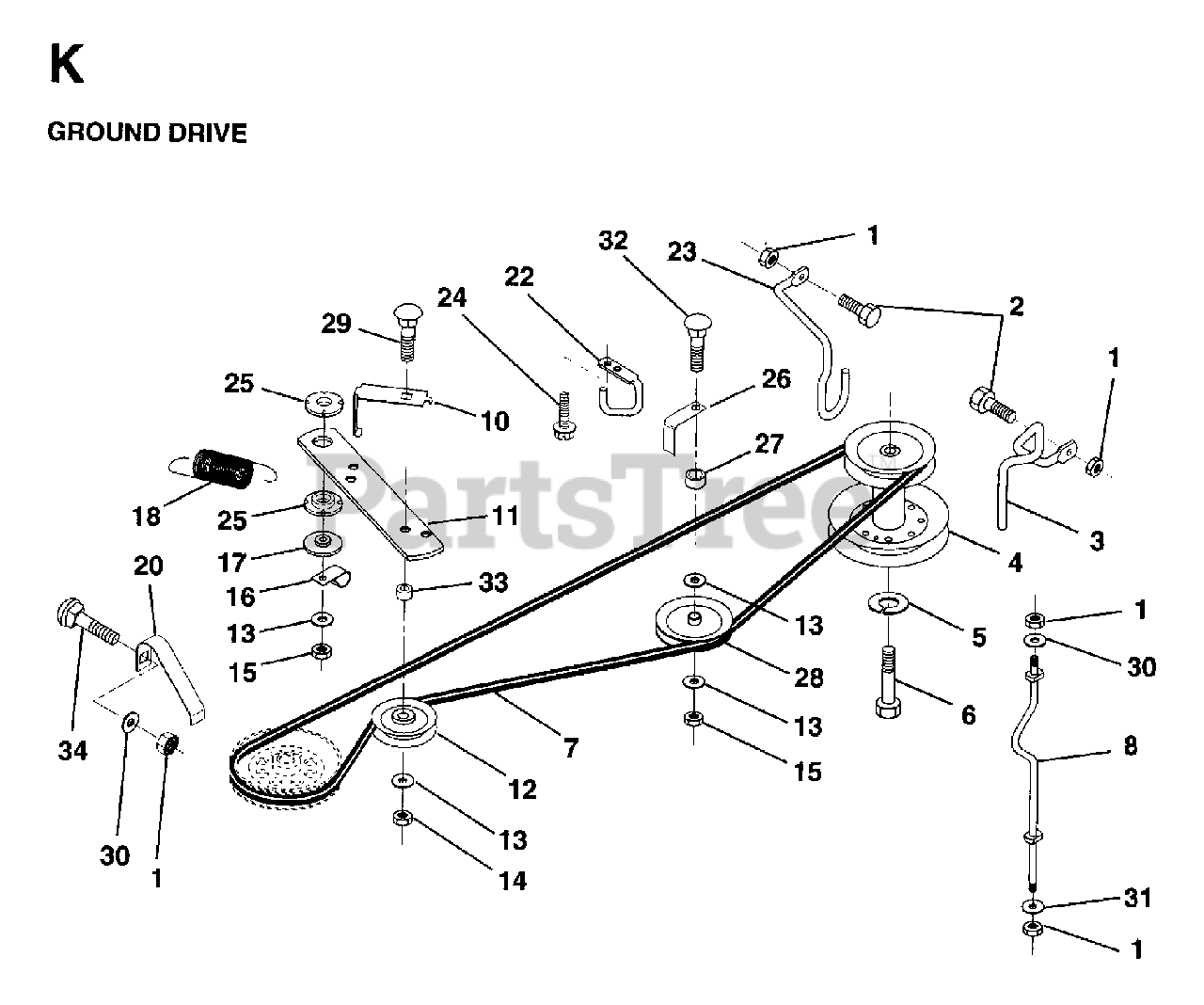

LRH 13 - Jonsered Rear-Engine Riding Mower (1997-04) DRIVE Parts Diagram

Rear-Engine Riding Mower

DRIVE Parts Diagram

  • Title
1

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 532141227

No Description Available

$

$

Not available

4

Jonsered 532138029

ENGINE PULLEY

$

$

Not available

5

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

6

$2.99

$

Usually ships in 3-10 days

0

7

Jonsered 531013132

No Description Available

$

$

Not available

$

$

Not available

10

Jonsered 532140780

KEEPER, BELT

$

$

Not available

11

Jonsered 532150926

ARM, GROUND DRIVE CLUTCH

$

$

Not available

12

Jonsered 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

13

$4.99

$

In Stock, Qty 5

0

14

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

16

Jonsered 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 532150932

SPACER, RETAINER

$

$

Not available

18

Jonsered 532131459

SPRING.EXTENSION

$

$

Not available

20

Jonsered 532140909

KEEPER, BELT

$

$

Not available

22

Jonsered 532123404

KEEPER,FRA DR BEL

$

$

Not available

23

Jonsered 532140916

KEEPER-MOWER DRIVE LH

$5.99

$

Usually ships in 3-10 days

0

24

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

25

Jonsered 532150935

BUSHING NYLON COLLERED

$

$

Not available

26

Jonsered 532140913

KEEPER, BELT

$5.99

$

Usually ships in 3-10 days

0

27

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532139123

PULLEY.IDLER.V.

$37.99

$

In Stock, only 1 left!

0

29

Jonsered 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

30

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

31

Jonsered 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

32

Jonsered 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

33

Jonsered 532000160

SPACER NLA

$

$

Not available

34

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
