LRH 13 (954130017) - Jonsered Rear-Engine Riding Mower (1998-12) ENGINE Parts Diagram

Rear-Engine Riding Mower

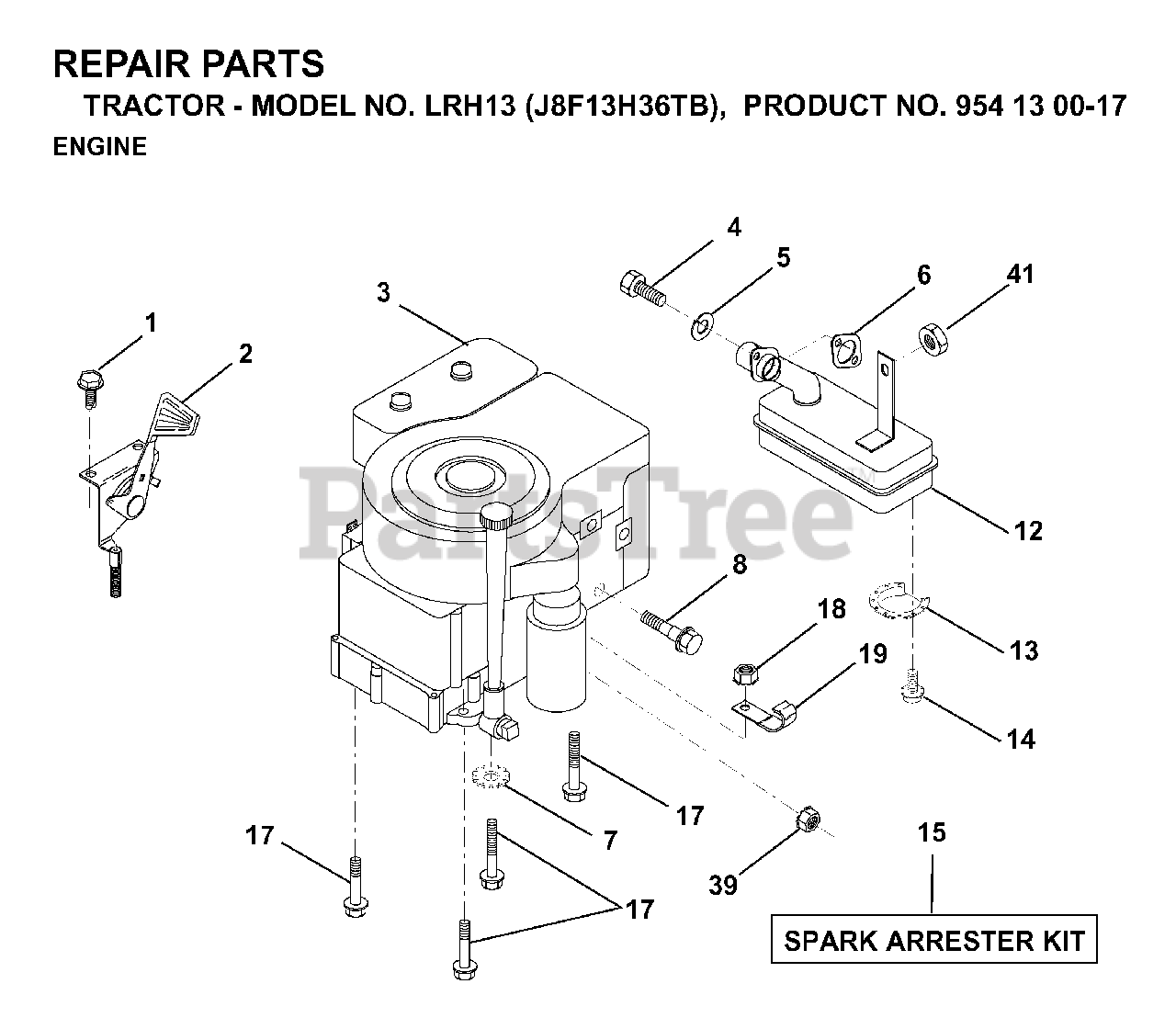

ENGINE Parts Diagram

  • Title

$5.99

$

In Stock, only 2 left!

0

2

Jonsered 532132752

CONTROL THROTTLE

$

$

Not available

4

Jonsered 532123528

No Description Available
(Superseded to 583667801)

$3.99

$

Usually ships in 3-10 days

0

5

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Jonsered 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Jonsered 532081328

SHOULDER BOLT ST

$6.49

$

In Stock, only 1 left!

0

12

Jonsered 532156448

No Description Available

$

$

Not available

13

Jonsered 532101326

DEFL MUFFLER LTV
(Superseded to 101326L)

$

$

Not available

14

Jonsered 817030808

SCREW
(Superseded to 817030814)

$

$

Not available

15

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

17

Jonsered 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

$6.49

$

Usually ships in 3-10 days

0

19

Jonsered 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

39

Jonsered 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

41

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0
