LRH 125 (954001222-C) - Husqvarna Lawn Tractor (1995-03) Mower Deck Parts Diagram

Lawn Tractor

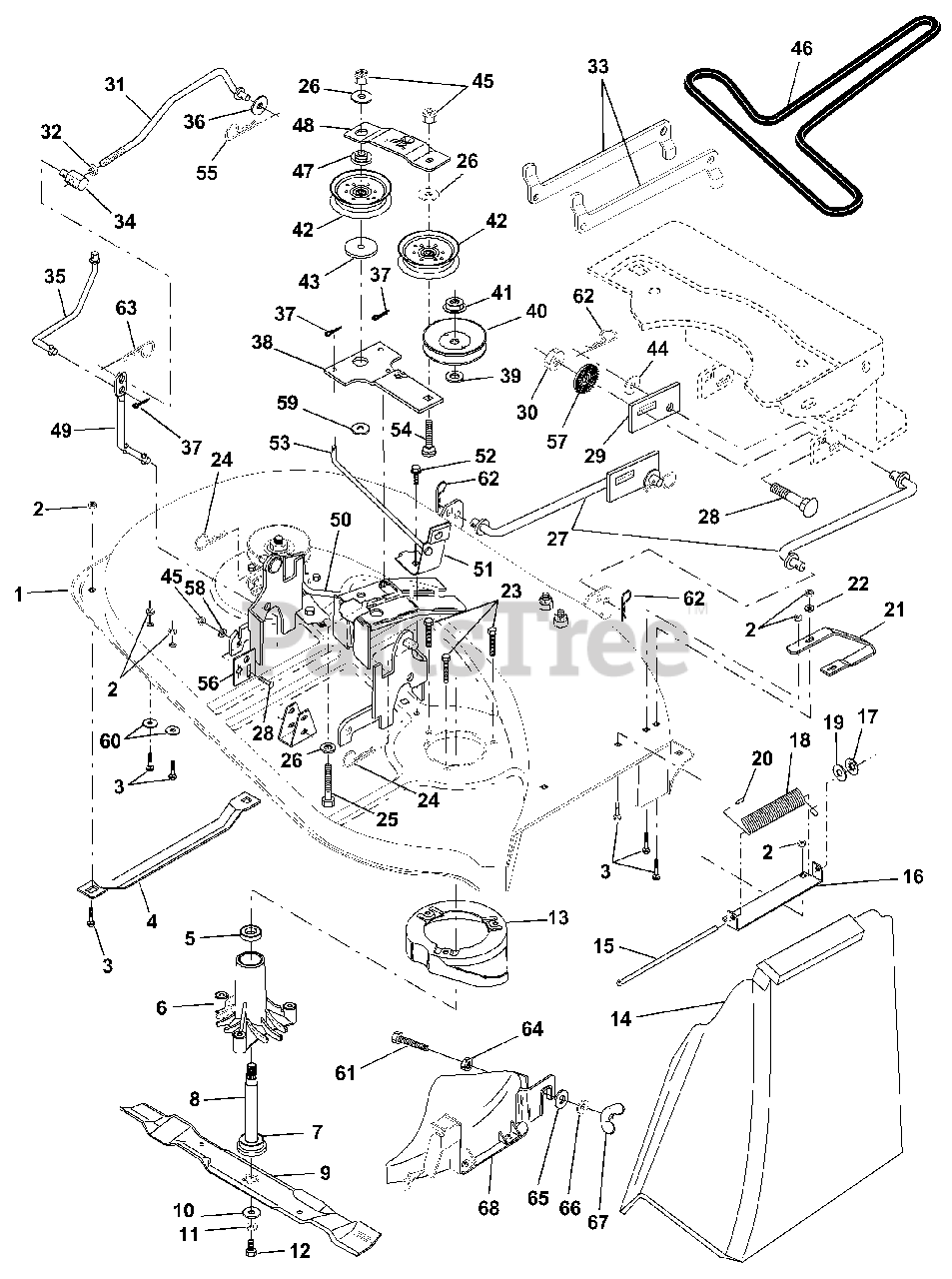

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532142830

Mower Deck Assembly
(Superseded to 532188249)

$303.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532110485

Bearing

$13.99

$

In Stock, Qty 11

0

6

Husqvarna 532128774

Housing, Mandrel

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532129895

Bearing

$11.99

$

In Stock, Qty 20+

0

8

Husqvarna 532137645

Shaft and Bearing Assembly, Mandrel
(Superseded to 532137646)

Note: (Includes Key Number 7)

$34.99

$

In Stock, only 3 left!

0

9

Husqvarna 532134148

Blade

$26.99

$

In Stock, only 2 left!

0

10

Husqvarna 532140296

Washer, Hardened

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

12

Husqvarna 532850857

Bolt, Hex 3/8-24 x 1-1/4 Grade 8

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 532140329

Stripper, Mower, Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532106736

Shield, Deflector

$

$

Not available

15

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

16

Husqvarna 532137607

Bracket Assembly, Deflector

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 532110452

Pushnut

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532123713

Spring, Deflector

$7.99

$

In Stock, only 1 left!

0

19

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532128772

Runner, R.H.

$

$

Not available

22

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532138776

Screw Thdrol Hex Head Zinc MWR
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532124670

Retainer, Spring

$

$

Not available

25

Husqvarna 874600636

Bolt Hex 3/8-16 x 2-1/4
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532139756

Link Assembly, Front

$

$

Not available

28

Husqvarna 872140608

Bolt RDHD SQNK 3/8 - 16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 532139757

Plate Slide Link

$

$

Not available

30

Husqvarna 873800600

Nut, Lock Hex w/washer 3/8 - 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532140915

Clutch Rod, Primary

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 532132559

Arm, Suspension, Rear

$

$

Not available

34

Husqvarna 532133604

Trunnion 3/8-16

$17.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532132554

Clutch Rod, Secondary

$

$

Not available

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

38

Husqvarna 532133840

Idler Arm

$

$

Not available

39

Husqvarna 532129963

Washer .150 Thick
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

40

Husqvarna 532129206

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

41

Husqvarna 532137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 532121316

Pulley, Flat Idler

$51.99

$

In Stock, only 4 left!

0

43

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

44

Husqvarna 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532126520

Belt
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532133502

Spacer, Idler Arm

$6.49

$

In Stock, only 1 left!

0

48

Husqvarna 532133503

Stiffener, Idler Arm

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532133551

Rod, Pivot

$8.99

$

In Stock, only 1 left!

0

50

Husqvarna 532131289

Rod, Brake, L.H.

$

$

Not available

51

Husqvarna 532130840

Brake Assembly

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 817490512

Screw, Hex Washer Head, Thd., Roll. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532131288

Rod, Brake, R.H.

$8.99

$

Usually ships in 3-10 days

0

54

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Grade 5

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532124961

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

56

Husqvarna 532136782

Adjustment Plate, Rear Link, L.H.

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532144283

Rondelle 13/32 x 1

$2.99

$

Usually ships in 3-10 days

0

58

Husqvarna 819131212

Washer 13/32 x 3/4 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

60

Husqvarna 819111112

Washer 11/32 x 11/16 x 12 Gauge

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 874930620

Bolt 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532124660

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

64

Husqvarna 873930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 819132016

Washer 13/32 X 1-1/4 X 16
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

66

Husqvarna 810040600

Washer, Lock, Hvy
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

67

Husqvarna 532135651

Nut Wing

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532132803

Cover Asm. Mulching 38

$66.99

$

Usually ships in 3-10 days

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Key Numbers 5-8, 10-12, 39 and 41)

$56.99

$

In Stock, Qty 5

0

Husqvarna 532142862

Mower Deck, Complete

Note: (Std. Deck Order Mulcher Plate Components Separately Key Nos. 61, 64-68)

$

$

Not available
