LRH 125 (954001222-C) - Husqvarna Lawn Tractor (1995-03) Engine Parts Diagram

Lawn Tractor

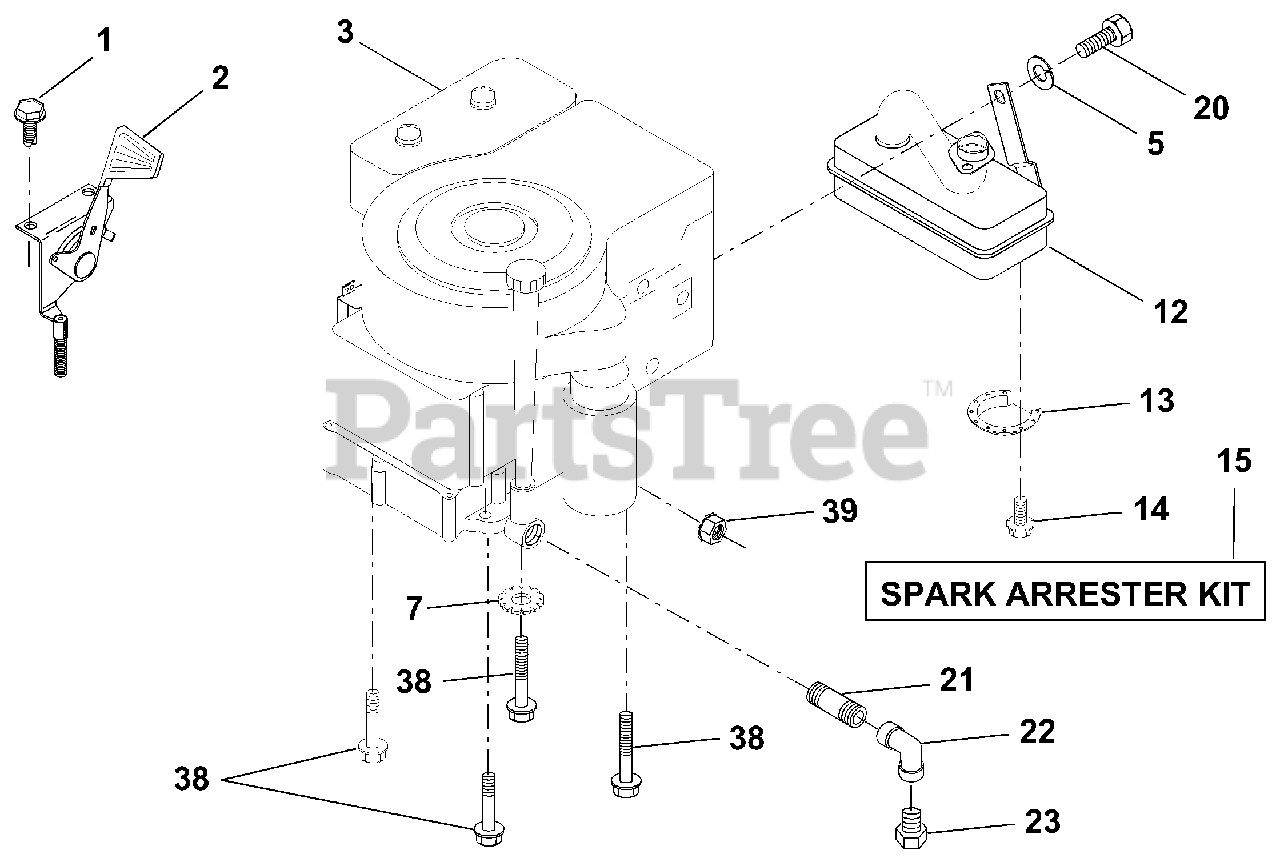

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532132753

Control, Throttle

$

$

Not available

3

Engine, Kohler, 12.5 HP

$

$

Not available

5

Husqvarna 810040500

Washer, Lock, Hvy Hlcl Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

7

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532138149

Muffler

$

$

Not available

13

Husqvarna 532101326

Deflector Muffler

$

$

Not available

14

Husqvarna 817030808

Screw Spiderloc Hex Hd # 8 x 1/2 AB
(Superseded to 817030814)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional Equip.)

$193.99

$

In Stock, only 1 left!

0

20

Husqvarna 874760508

Bolt, Hex, Fin. 5/16 - 18 x 1/2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 813280328

Nipple Pipe

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 813200300

Elbow
(Superseded to 532428287)

$20.99

$

In Stock, Qty 20+

0

23

Oil Drain Plug

Note: (Order From Eng Mfg)

$

$

Not available

38

Husqvarna 532125398

Bolt Hex
(Superseded to 740108025)

$

$

Not available

39

Husqvarna 873510400

Nut, Keps, Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0
