LRH 125 (954000622-B) - Husqvarna Lawn Tractor (1994-01) Hood Parts Diagram

Lawn Tractor

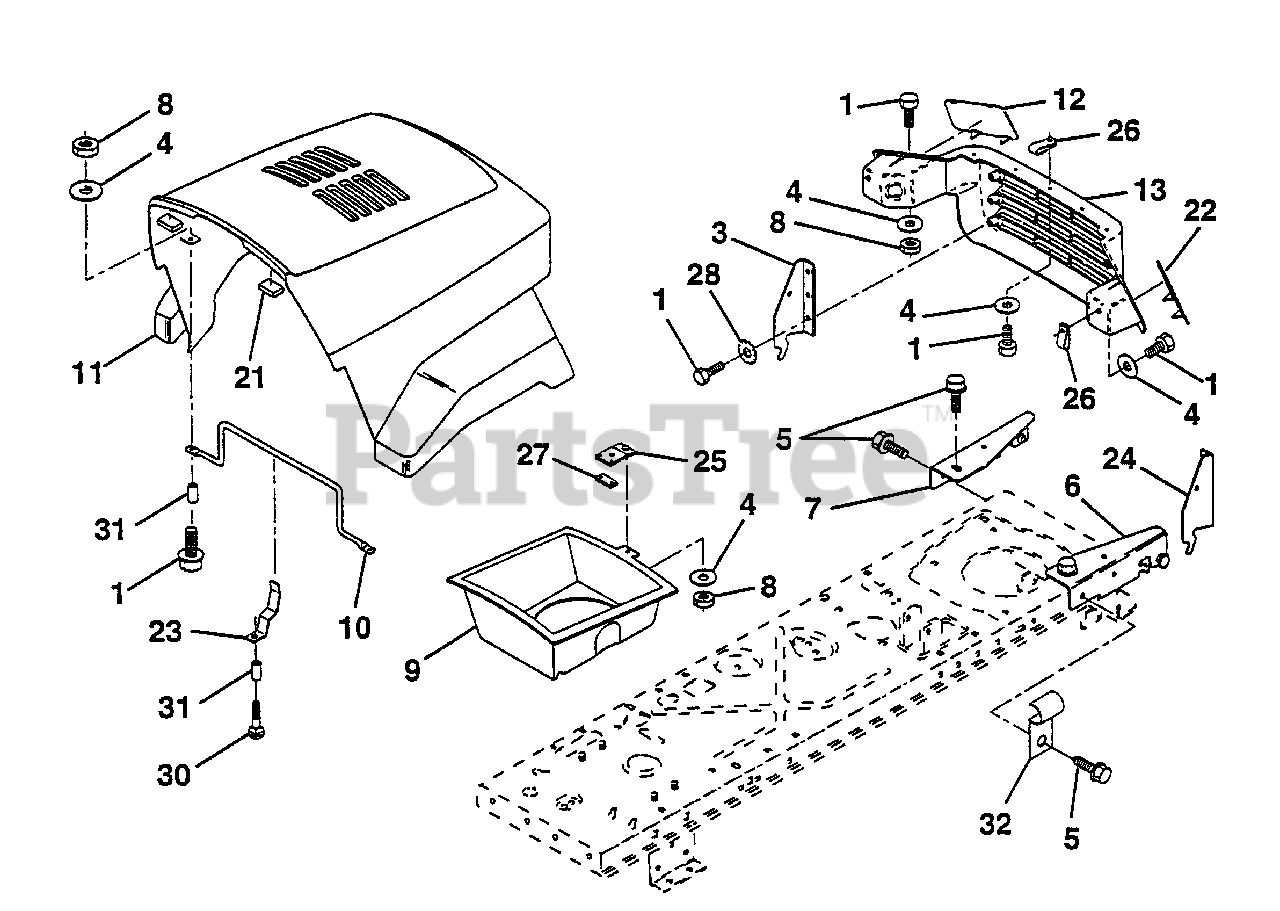

Hood Parts Diagram

  • Title

1

Husqvarna 874780410

Bolt Fin Hex 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

3

Husqvarna 532128445

Bracket Pivot Hood LH

$

$

Not available

4

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

5

Husqvarna 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532140051

Bracket Asm. Pivot Hood RH

$

$

Not available

7

Husqvarna 532140050

Bracket Asm. Pivot Hood LH

$

$

Not available

8

Husqvarna 873510400

Nut Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

9

Husqvarna 532123840

Duct Air Hood

$

$

Not available

10

Husqvarna 532130850

Brace Hood

$

$

Not available

11

Husqvarna 532140142

Hood

$

$

Not available

12

Husqvarna 532130986

Lens LH

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532130984

Grille
(Superseded to 532404673)

$546.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532126938

Bumper Hood

$

$

Not available

22

Husqvarna 532130985

Lens RH

$

$

Not available

23

Husqvarna 532139969

Latch Hood

$

$

Not available

24

Husqvarna 532142873

Bracket Pivot Hood RH

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 532138740

Clip Asm. Duct Air

$

$

Not available

26

Husqvarna 532052921

Clip Tinnerman

$

$

Not available

27

Husqvarna 532131028

Clip Tinnerman

$

$

Not available

28

Husqvarna 811050400

Washer Lock Ext Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 872110412

Bolt Hex Fin 1/4 - 20 UNC x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532138748

Spacer
(Superseded to 532147031)

$

$

Not available

32

Husqvarna 532124996

Clip Line Fuel
(Superseded to 532002751)

$

$

Not available
