LRH 125 (954000622-B) - Husqvarna Lawn Tractor (1994-01) Fender/Chassis Parts Diagram

Lawn Tractor

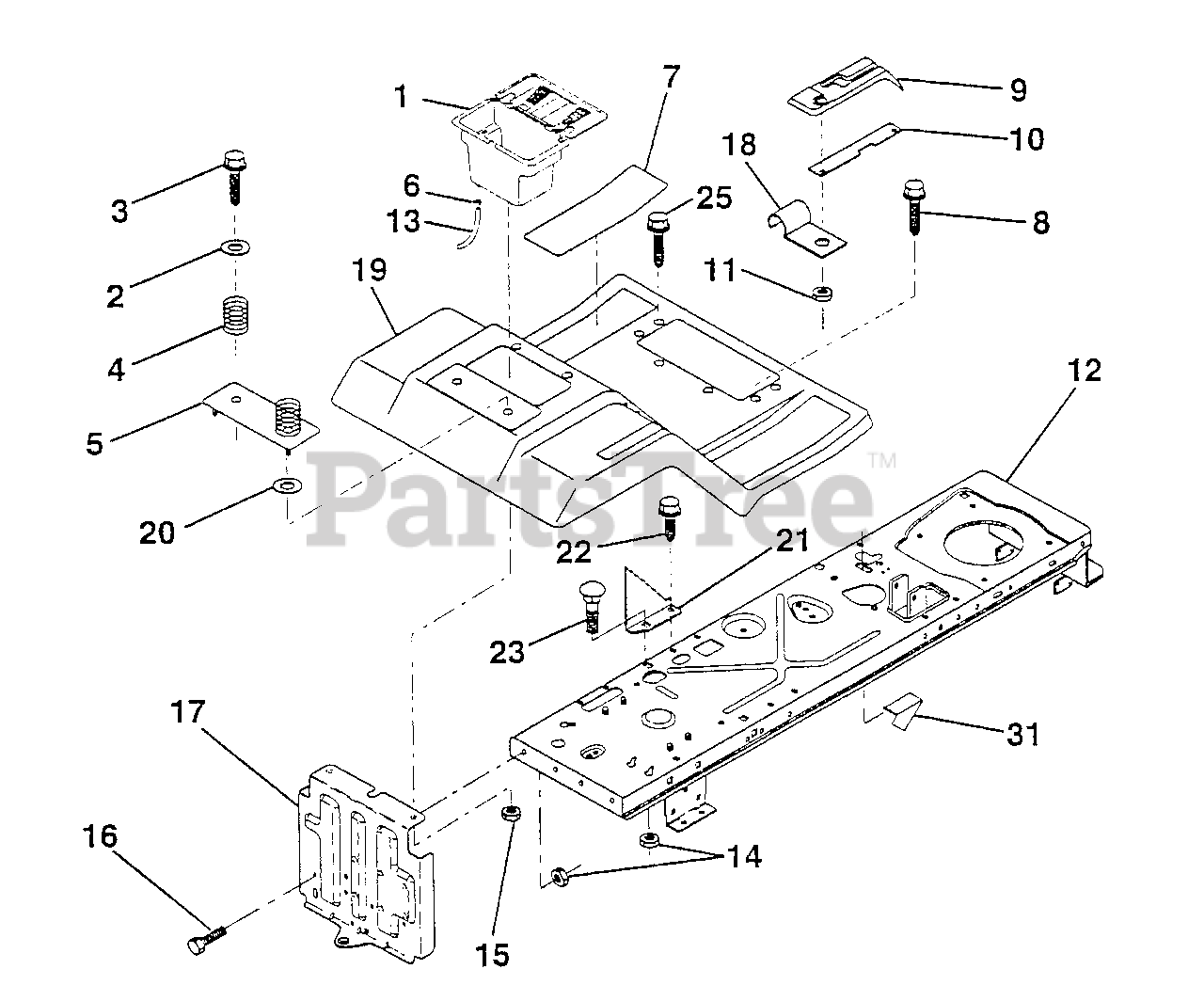

Fender/Chassis Parts Diagram

  • Title
1

Husqvarna 532129965

Case Asm. Battery
(Superseded to 532404349)

$

$

Not available

2

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 817490612

Screw Thdrol. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532124181

Spring seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 532125142

Plate Asm. Pnt Battery Fender
(Superseded to 532127115)

$

$

Not available

6

Husqvarna 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532126700

Pad Footrest Rubber Deluxe

$

$

Not available

8

Husqvarna 817490512

Screw Thdrol. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532140919

Console Shf. 6sp W/Ign.

$

$

Not available

10

UNKNOWN

$

$

Not available

11

Husqvarna 532124346

Nut Self Thd. Wsh-Hd 1/4

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 532140784

Chassis Asm. Weldment

$

$

Not available

13

Husqvarna 532109238

Tube Plastic

$

$

Not available

14

Husqvarna 873800500

Nut Crownlock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

16

Husqvarna 874760512

Bolt Hex Hd. 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532140782

Drawbar Asm.

$

$

Not available

18

Husqvarna 532126470

Clip Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532141366

Fend/Foot Asm. Pnt Shf. Fnd.
(Superseded to 532140956)

$

$

Not available

20

Husqvarna 819091413

Washer 9/32 x 7/8 x 13 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532140297

Bracket Stop Depth

$

$

Not available

22

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 872110506

Bolt Rdhdsqnk. 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 817490516

Scr-Hex Wsh Rol 5/16-18 x 1
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532124238

Cap Spring

$

$

Not available

31

Husqvarna 532141736

Switch Actuator
(Superseded to 532146613)

$

$

Not available
