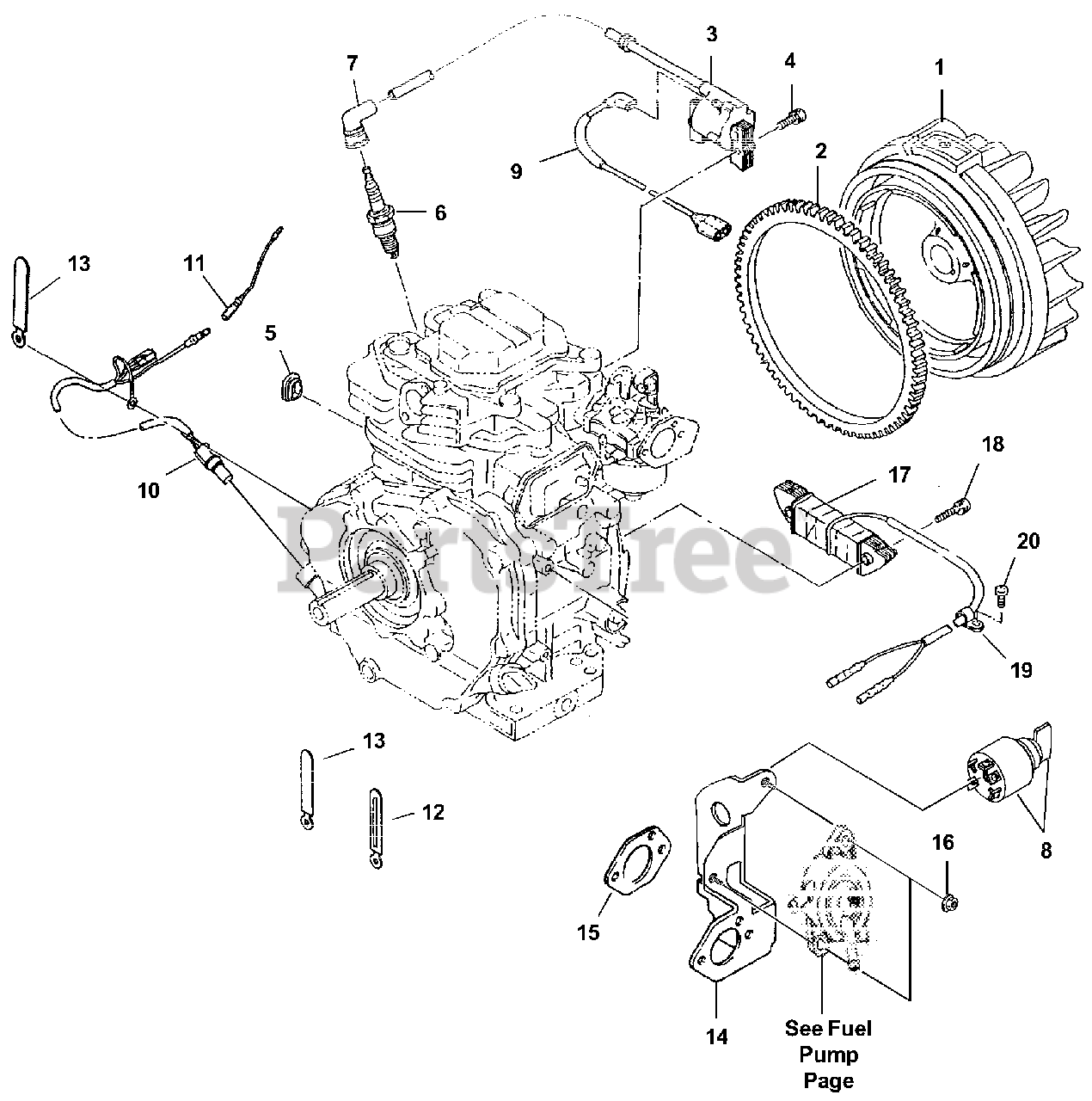

LRE 5550 (UT-03834) - Homelite Generator Ignition Parts Diagram

Generator

Ignition Parts Diagram

  • Title

1

Homelite UP06742

Flywheel

Note: Robin P/N 246-77203-11

$

$

Not available

2

Homelite UP06745

Ring Gear

Note: Robin P/N 246-71002-03

$

$

Not available

3

Homelite UP05389

Ignition coil cp

Note: Robin P/N 246-78201-21

$

$

Not available

4

Homelite UP03996

Bolt and washer Ay

Note: Torque Specs 15 - 20 in/lbs (1.7 - 2.3 Nm); Robin P/N 001-14063-00

$

$

Not available

5

Homelite UP05390

Grommet

Note: Robin P/N 227-75001-03

$

$

Not available

6

Homelite UP05045

Spark plug

Note: Torque Specs 166 - 195 in/lbs (18.8 - 22.0 Nm); Robin P/N 065-01404-80

$

$

Currently unavailable

7

Homelite UP03351

Spark plug cap

Note: Robin P/N 065-50001-40

$

$

Not available

8

Homelite UP04065

Switch AY

Note: Robin P/N 066-00003-61

$

$

Not available

9

Homelite UP05391

Wire 3 cp

Note: Robin P/N 246-73103-01

$

$

Not available

10

Homelite UP05392

Oil Sensor cp

Note: Robin P/N KS3-11013-01

$

$

Not available

11

Homelite UP05393

Wire 18 cp

Note: Robin P/N 246-73118-01

$

$

Not available

12

Homelite UP04062

Clamp cp

Note: Robin P/N 056-60002-50

$

$

Not available

13

Homelite UP05394

Clamp

Note: Robin P/N 056-60002-60

$

$

Not available

14

Homelite UP06743

Bracket, Fuel Pump

Note: Robin P/N 246-65502-01

$

$

Currently unavailable

15

Homelite UP05387

Gasket, Air Cleaner
(Superseded to UP03277)

Note: Robin P/N 234-26003-031

$

$

Not available

16

Homelite UP03987

Nut

Note: Robin P/N 002-38060-00

$

$

Not available

17

Homelite UP06744

Charging Coil

Note: Robin P/N 246-79201-01

$

$

Not available

18

Homelite UP04497

Screw & Washer AY

Note: Robin P/N 004-31060-80

$

$

Not available

19

Homelite UP03349

Clamp

Note: Robin P/N 206-75501-01

$

$

Not available

20

Homelite UP04497

Screw

Note: Robin P/N 004-31060-80

$

$

Not available
