LRE 5550 (UT-03834) - Homelite Generator Frame - Fuel Tank Parts Diagram

Generator

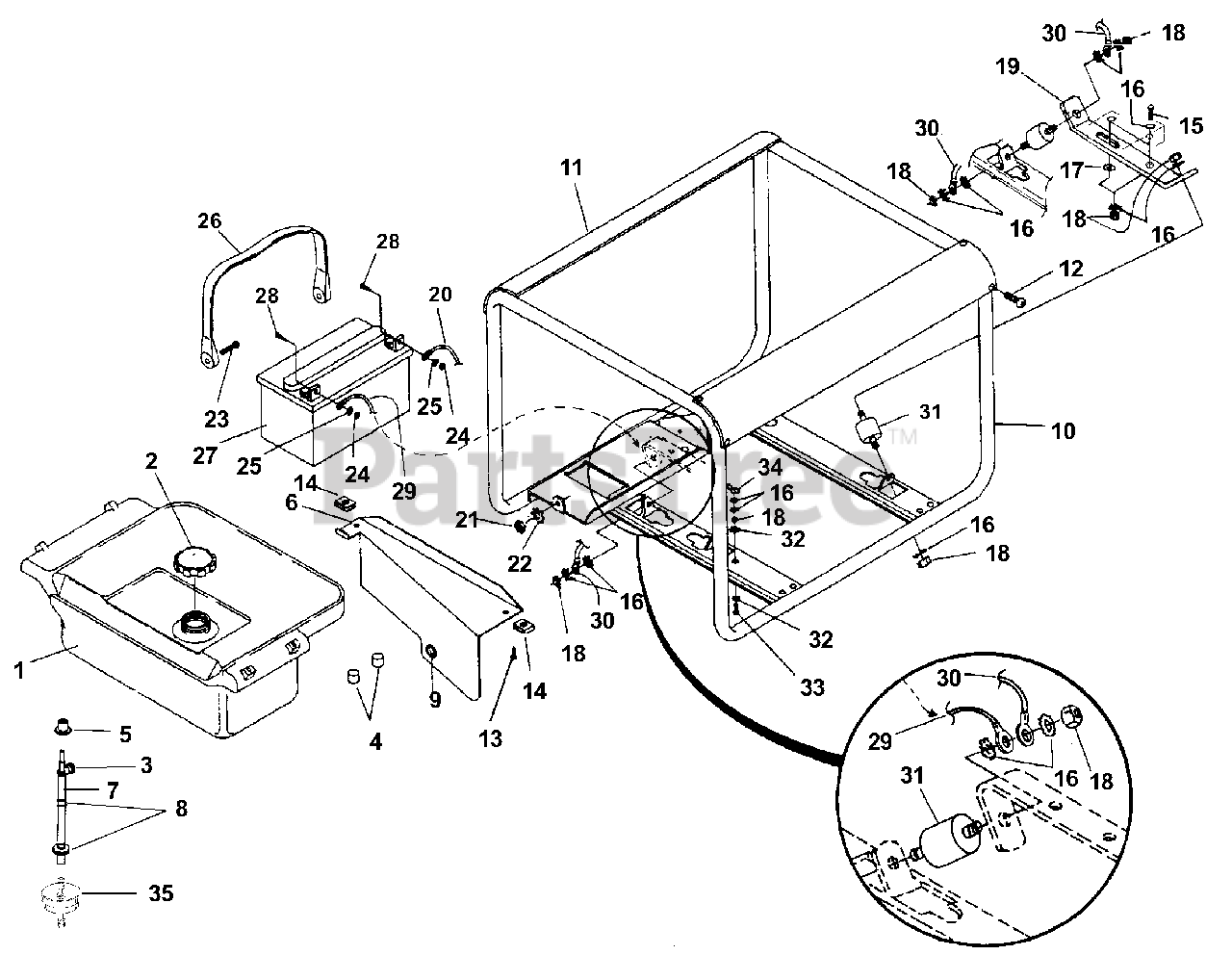

Frame - Fuel Tank Parts Diagram

  • Title

1

Homelite 04861A

FUEL TANK (5 Gal.)

$

$

Currently unavailable

2

Homelite UP03458

FUEL CAP (2 1/4" dia.)

$

$

Currently unavailable

3

Homelite UP03464

VALVE-Fuel

$

$

Not available

4

Homelite UP03465

PAD-Fuel Tank
(Superseded to 06644)

$

$

Not available

5

Homelite UP03480

BUSHING

$

$

Currently unavailable

6

Homelite UP03461

SHIELD-Fuel Tank

$

$

Not available

7

Homelite UP03486

FUEL LINE

$

$

Not available

8

Homelite UP03434

CLIP-Hose

$

$

Currently unavailable

9

Homelite UP03457

BUSHING-Snap In

$

$

Not available

10

Homelite UP03386

ROLL CAGE

$

$

Currently unavailable

Homelite UP04804

ROLL CAGE (Electric Start)

$

$

Not available

11

Homelite UP03460

BRACE-Tank Support
(Superseded to 063831)

$

$

Not available

12

Homelite UP03420

SCREW-Torx (10-24 X 1/2")
(Superseded to 96620)

$4.99

$

Usually ships in 3-7 days

0

13

Homelite UP03389

SCREW-Pan Hd. (8-32 X 3/8")

Note: Torque Specs 8 - 12 in/lbs (.9 - 1.1 Nm)

$

$

Not available

14

Homelite UP03398

NUT-Hi Speed
(Superseded to 81227)

$

$

Not available

15

Homelite UP03386

SCREW-Hex Hd. (5/16-18 X 2")

Note: Torque Specs 145 - 155 in/lbs (16.4 - 17.5 Nm)

$

$

Currently unavailable

16

Homelite UP03413

WASHER-Lock (int.)

$

$

Currently unavailable

17

Homelite UP03416

WASHER-Flat

$

$

Currently unavailable

18

Homelite UP03397

NUT-Hex (5/16-18)

$

$

Not available

19

Homelite UP03535

SUPPORT-Engine
(Superseded to PS49265)

$30.99

$

Usually ships in 3-7 days

0

20

Homelite UP03507

CABLE-Battery (Red, Pos.)

$

$

Not available

21

Homelite UP03394

NUT-Hex (10-32)

$

$

Not available

22

Homelite UP03411

WASHER-Lock

$

$

Currently unavailable

23

Homelite UP03378

SCREW-Shoulder (10-32 X 1/4")

$

$

Currently unavailable

24

Homelite UP03399

NUT-Hex (10-32)
(Superseded to 81242)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite UP03409

WASHER-Lock
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

26

Homelite UP03455

STRAP-Battery Hold Down

$

$

Currently unavailable

27

Homelite UP03494

BATTERY (12 Volt)

$

$

Not available

28

Homelite UP03380

SCREW-Hex Hd. (1/4-20 X 5/8")
(Superseded to 80049)

$

$

Not available

29

Homelite UP03456

BATTERY CABLE (Black, to Ground)

$

$

Not available

30

Homelite UP03511

GROUND STRAP

$

$

Currently unavailable

31

Homelite UP03483

ISOLATOR

$

$

Not available

32

Homelite UP03413

WASHER-Lock (ext./int.)

$

$

Currently unavailable

33

Homelite UP03382

SCREW-Hex Hd. (5/16-18 X 1 1/2")

Note: Torque Specs 145 - 155 in/lbs (16.4 - 17.5 Nm)

$

$

Currently unavailable

34

Homelite UP03395

NUT-Wing

$

$

Currently unavailable

35

Homelite UP03697

Fuel Filter

$

$

Currently unavailable
