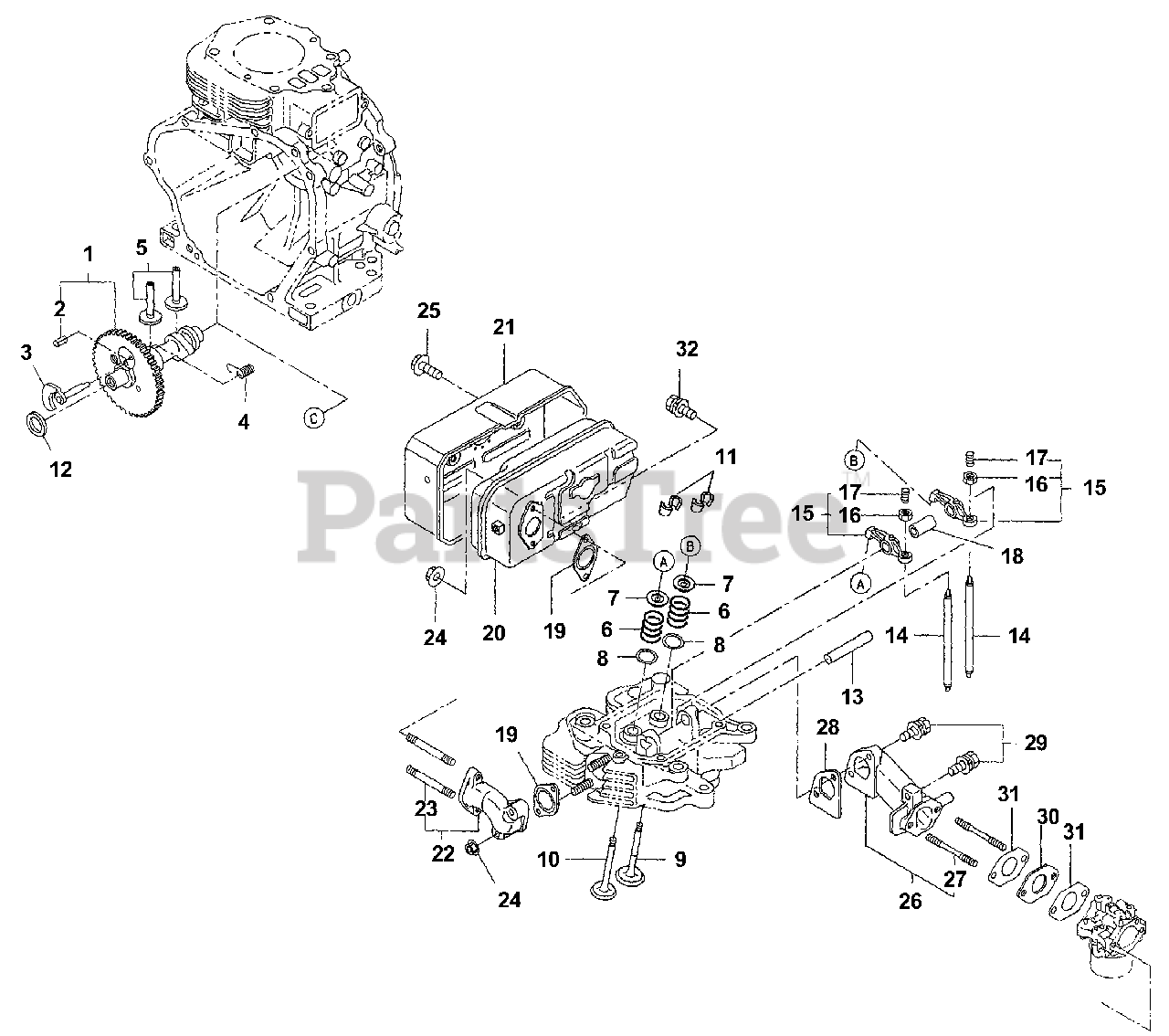

LRE 5550 (UT-03834) - Homelite Generator Exhaust Parts Diagram

Generator

Exhaust Parts Diagram

  • Title

1

Homelite UP05341

Camshaft

Note: Robin P/N 246-31701-01

$

$

Not available

2

Homelite UP03954

Spring pin

Note: Robin P/N 005-19041-00

$

$

Not available

3

Homelite UP04939

Release lever cp

Note: Robin P/N 246-36201-11

$

$

Not available

4

Homelite UP04940

Return spring

Note: Robin P/N 246-36701-03

$

$

Not available

5

Homelite UP05342

Tappet

Note: Robin P/N 246-33301-03

$

$

Not available

6

Homelite UP04416

Valve spring

Note: Robin P/N 246-33611-03

$

$

Not available

7

Homelite UP04942

Spring retainer

Note: Robin P/N 246-33711-03

$

$

Not available

8

Homelite UP05350

Washer

Note: Robin P/N 020-02000-10

$

$

Not available

9

Homelite UP05343

Intake valve

Note: Robin P/N 246-33411-03

$

$

Not available

10

Homelite UP05344

Exhaust valve

Note: Robin P/N 246-33511-03

$

$

Not available

11

Homelite UP04419

Collet, valve

Note: Robin P/N 246-35501-03

$

$

Not available

12

Homelite UP04945

Spacer T=0.6

Note: Robin P/N 023-02200-50

$

$

Not available

Homelite UP04946

Spacer T=0.7

Note: Robin P/N 023-02200-60

$

$

Not available

Homelite UP04947

Spacer T=0.8

Note: Robin P/N 023-02200-70

$

$

Not available

13

Homelite UP05345

Rocker shaft

Note: Robin P/N 239-35001-03

$

$

Not available

14

Homelite UP05346

Push rod cp

Note: Robin P/N 246-35301-11

$

$

Not available

15

Homelite UP05347

Rocker arm Ay

Note: Robin P/N 246-36101-10

$

$

Not available

16

Homelite UP05348

Nut

Note: Robin P/N 017-00800-90

$

$

Not available

17

Homelite UP05349

Adjusting Screw

Note: Robin P/N 014-90800-21

$

$

Not available

18

Homelite UP05351

Spacer / Rocker Shaft

Note: Robin P/N 246-36120-13

$

$

Not available

19

Homelite UP04424

Gasket, exhaust

Note: Robin P/N 246-35201-03

$

$

Not available

20

Homelite UP05352

Muffler cp

Note: Robin P/N 246-30101-31

$

$

Not available

21

Homelite UP05353

Muffler Cover cp

Note: Robin P/N 246-34201-31

$

$

Not available

22

Homelite UP05354

Exhaust Pipe cp

Note: Robin P/N 246-34001-01

$

$

Not available

23

Homelite UP05355

Stud

Note: Robin P/N 010-50803-60

$

$

Not available

24

Homelite UP05356

Flange Nut

Note: Robin P/N 018-00800-10

$

$

Not available

25

Homelite UP03274

Flange Bolt

Note: Robin P/N 011-00600-10

$

$

Not available

26

Homelite UP05359

Intake Pipe cp

Note: Robin P/N 246-33001-01

$

$

Not available

27

Homelite UP03976

Stud

Note: Robin P/N 010-50602-30

$

$

Not available

28

Homelite UP04432

Gasket, In. Pipe

Note: Robin P/N 246-36001-13

$

$

Not available

29

Homelite UP04433

Bolt and Washer AY

Note: Torque Specs 86 - 121 in/lbs (9.8 - 13.7 Nm); Robin P/N 001-13082-80

$

$

Not available

30

Homelite UP05362

Insulator

Note: Robin P/N 246-32901-03

$

$

Not available

31

Homelite UP03281

Gasket, insulator

Note: Robin P/N 234-35902-03

$

$

Not available

32

Homelite UP05360

Bolt and Washer AY

Note: Robin P/N 011-11081-60

$

$

Not available
