LRE 5550 (UT-03834) - Homelite Generator Crankshaft - Piston Parts Diagram

Generator

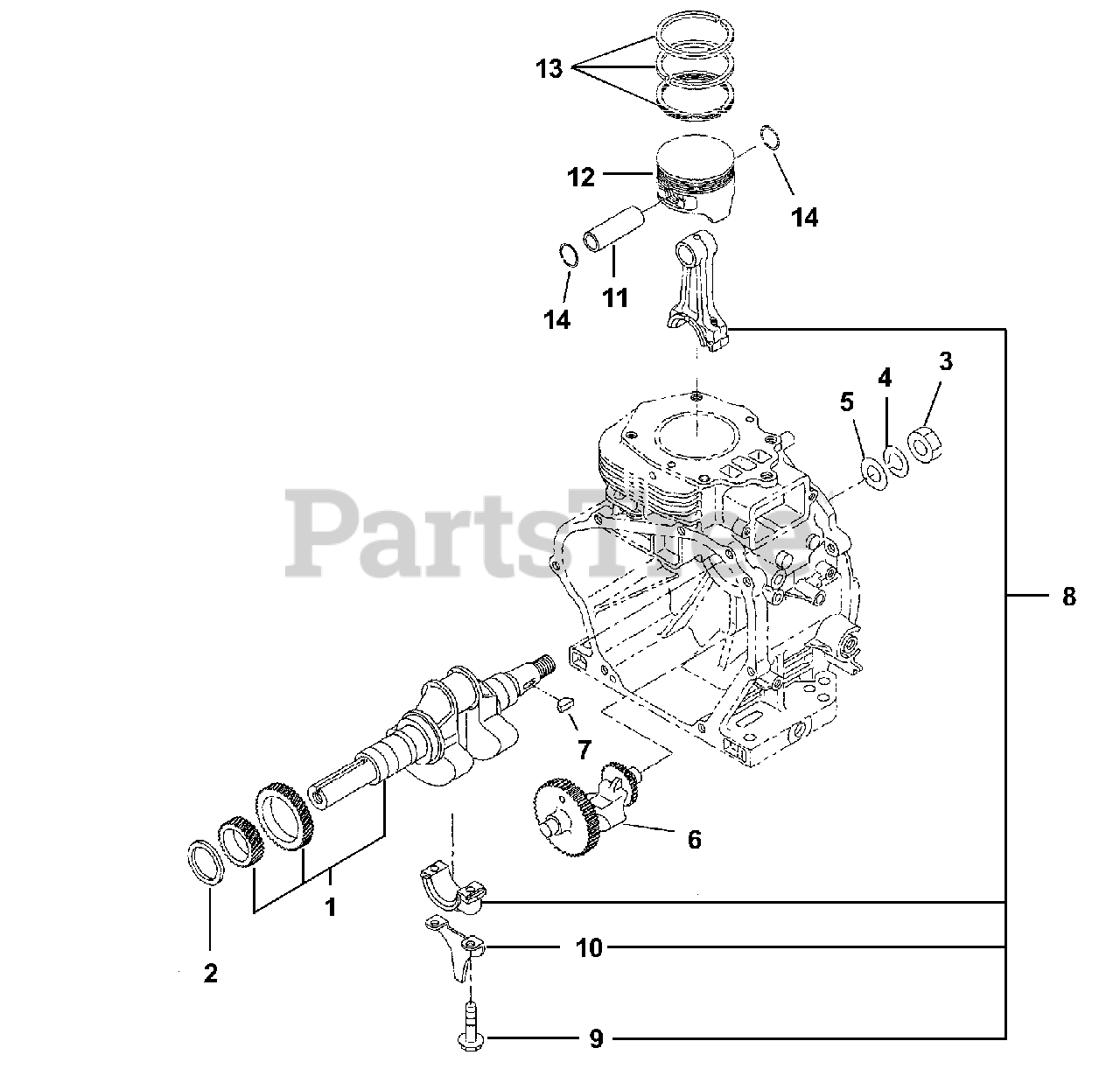

Crankshaft - Piston Parts Diagram

  • Title

1

Homelite UP05331

Crankshaft cp

Note: Robin P/N 246-21201-01

$

$

Not available

2

Homelite UP04921

Spacer (.6)

Note: Robin P/N 023-03501-60

$

$

Not available

Homelite UP04922

Spacer (.8)

Note: Robin P/N 023-03501-70

$

$

Not available

Homelite UP04923

Spacer (1.0)

Note: Robin P/N 023-03501-80

$

$

Not available

3

Homelite UP03249

Nut

Note: Torque Specs 434 - 470 in/lbs (49.0 - 53.1 Nm); Robin P/N 002-18180-00

$

$

Not available

4

Homelite UP03250

Spring washer

Note: Robin P/N 003-20180-00

$

$

Not available

5

Homelite UP04925

Washer

Note: Robin P/N 003-10180-00

$

$

Not available

6

Homelite UP05395

Balancer shaft

Note: Robin P/N 246-24102-23

$

$

Not available

7

Homelite UP04927

Woodruff key

Note: Robin P/N 005-32054-01

$

$

Not available

8

Homelite UP05332

Connecting rod Ay

Note: Robin P/N 246-22501-00

$

$

Not available

9

Homelite UP04393

Connecting rod bolt

Note: Torque Specs 122 - 145 in/lbs (13.8 - 16.4 Nm); Robin P/N 246-23001-03

$

$

Not available

10

Homelite UP05333

Oil scrapper

Note: Robin P/N 246-23101-13

$

$

Not available

11

Homelite UP05334

Piston pin

Note: Robin P/N 246-23301-03

$

$

Not available

12

Homelite UP05335

Piston

Note: Robin P/N 247-23401-13

$

$

Not available

Homelite UP05336

Piston (.25)

Note: Robin P/N 247-23402-13

$

$

Not available

Homelite UP05337

Piston (.5)

Note: Robin P/N 247-23403-13

$

$

Not available

13

Homelite UP05338

Piston ring set (std)

Note: Robin P/N 247-23501-07

$

$

Not available

Homelite UP05339

Piston ring set (.25)

Note: Robin P/N 247-23502-07

$

$

Not available

Homelite UP05340

Piston ring set (.5)

Note: Robin P/N 247-23503-07

$

$

Not available

14

Homelite UP04936

Clip

Note: Robin P/N 056-52100-20

$

$

Not available
